Centipede 3SIXTY B6
SKU:
JP1003

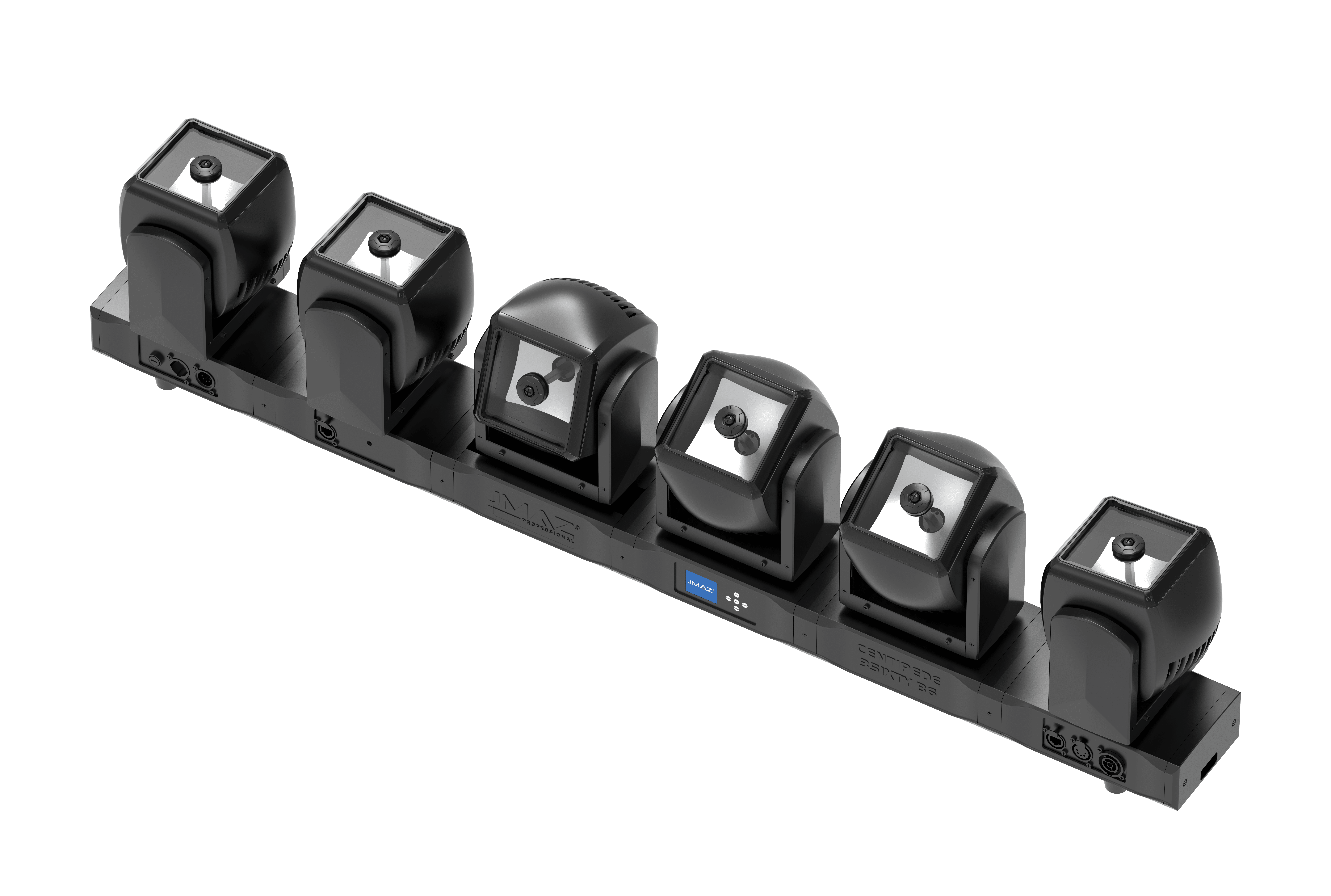

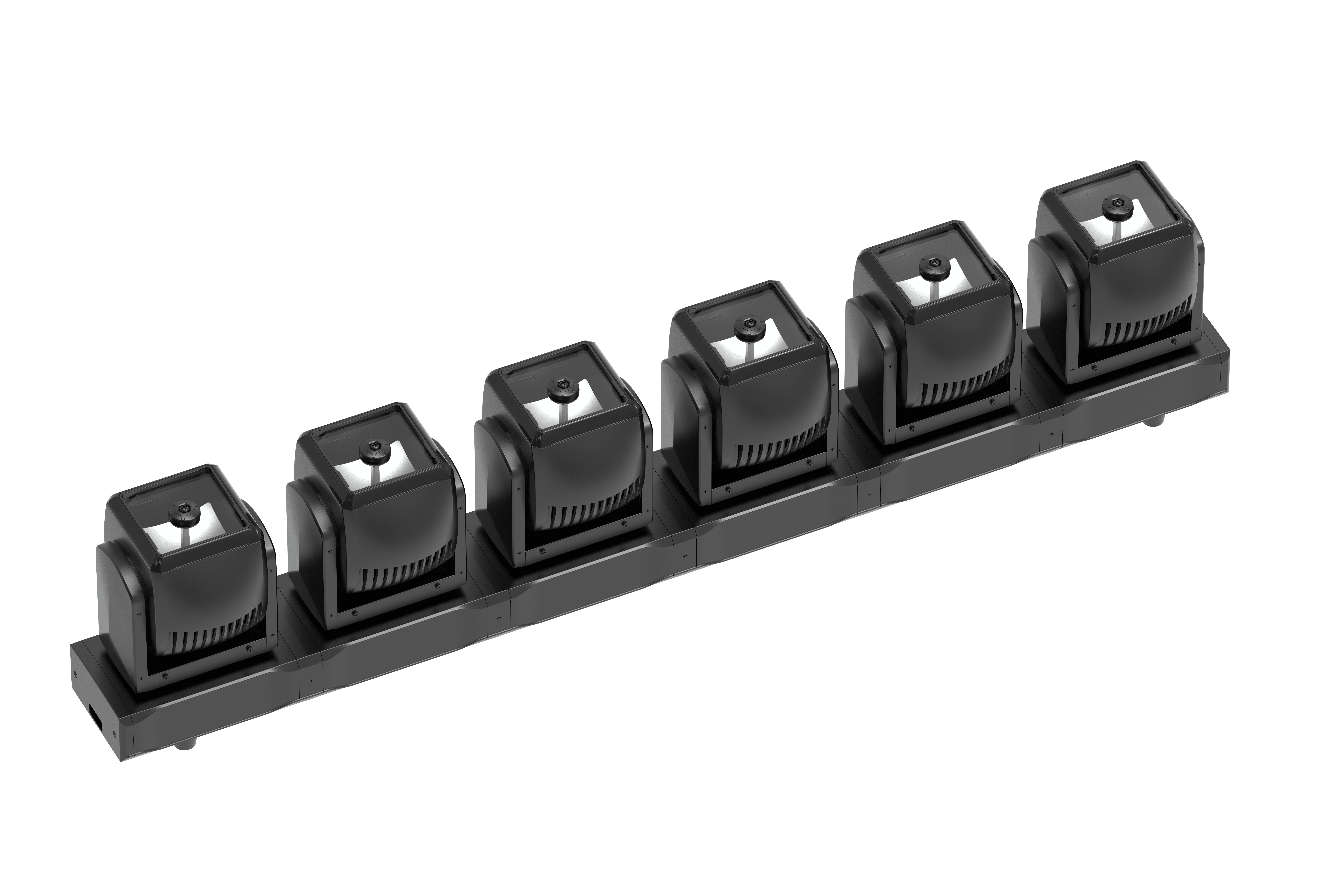

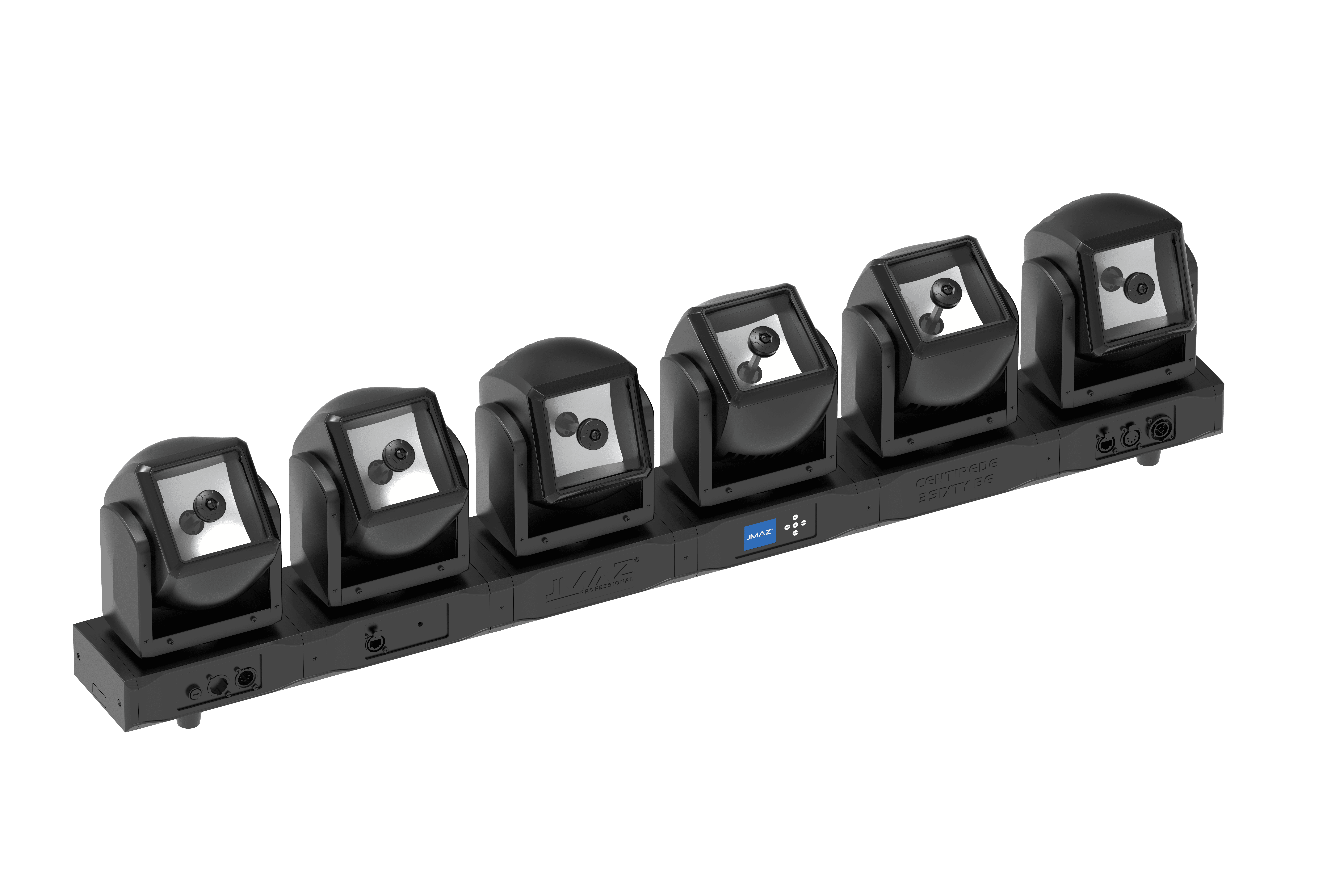

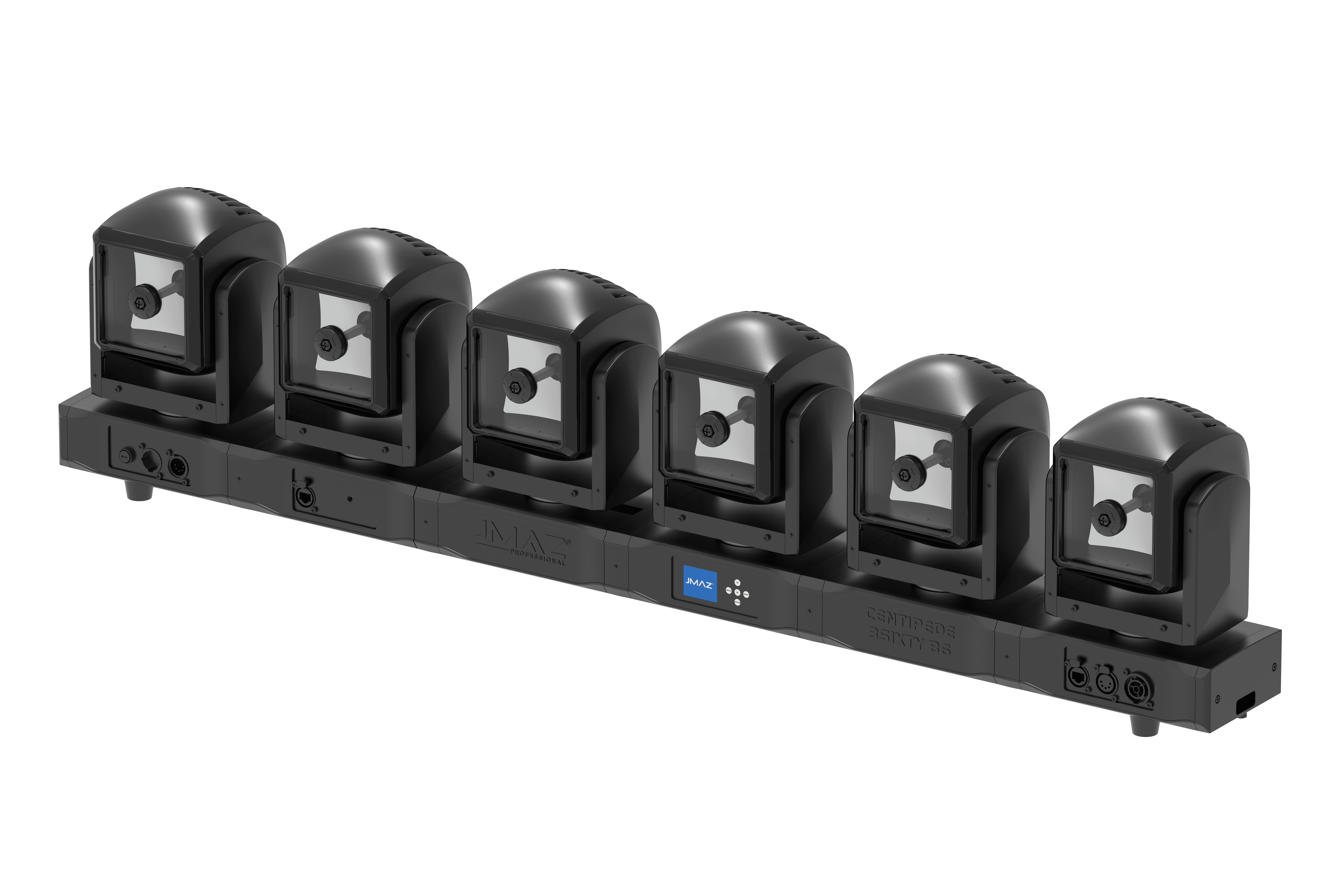

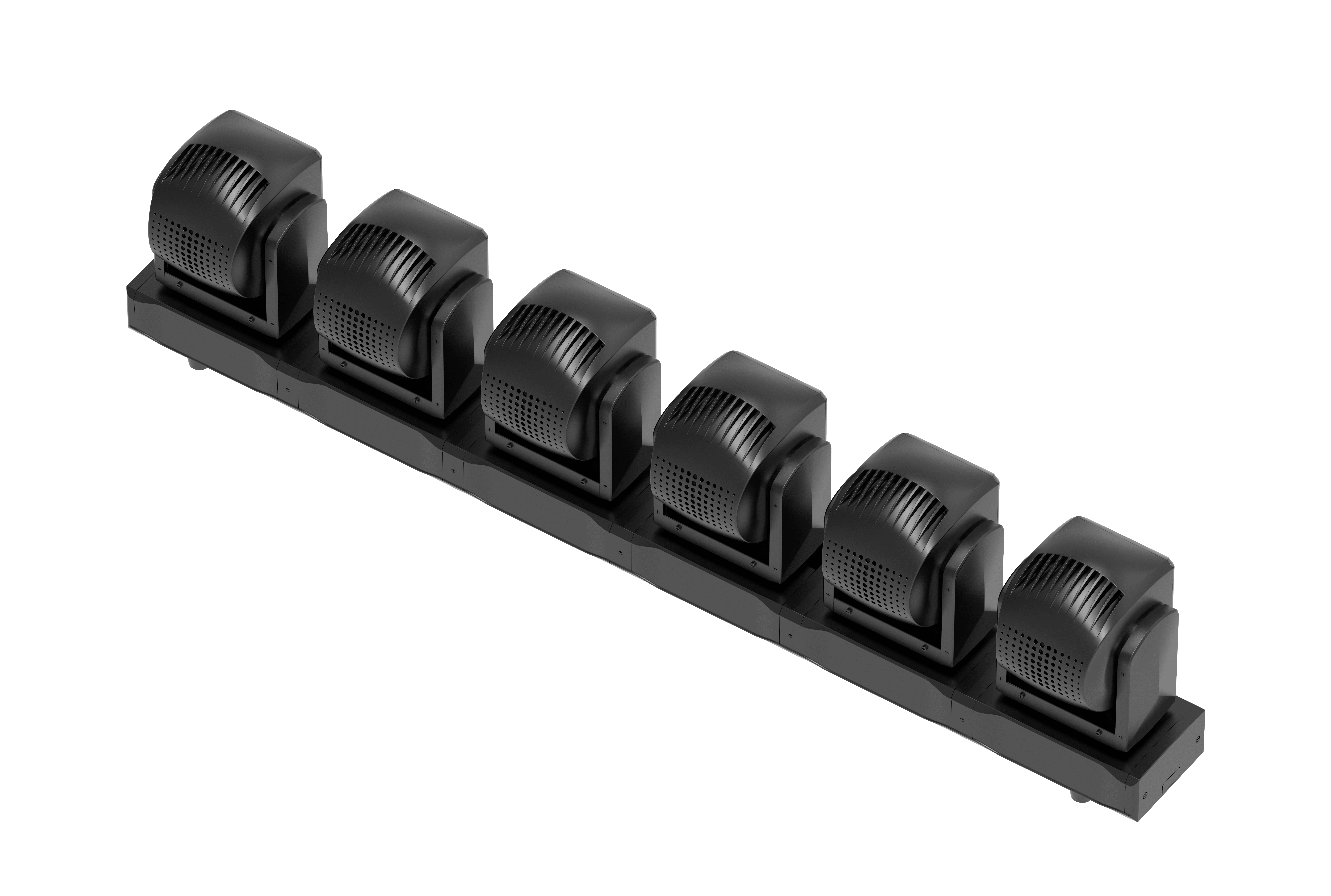

Centipede 3SIXTY B6 RGBW LED Intelligent 6 Moving Head Bar
Main features:
- Light Source: (6) 60W RGBW LED
- Ring Light Source: (180) 0.2W RGB SMD LEDs
- Individual Head 360° Infinite Pan/Tilt Control
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
- Built-In Virtual Colors And Movement Macros w/ Foreground and Background Color Control
- Beam Angle: 3.5°
- 16 bit RGBW Color Mixing, CTO: 2500K – 8000K
- Personalities: 4 Modes 27/61/85/110
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Power Connection: TRUE1 In/Out
- Includes: TRUE1 Power Cable, 5-Pin DMX Cable, 2 Omega Bracket, 2 Safety Cable, Manual
- CE, cETL, FCC, RoHs Certified
Product Description
The JMAZ Professional Centipede 3SIXTY B6 is a dynamic RGBW moving head bar featuring six individually controlled 60W RGBW LED heads and 180 RGB SMD ring LEDs for striking visual effects. Each head offers 360° infinite pan/tilt rotation and pixel-level control, unlocking endless creative possibilities. Built-in macros include virtual color presets and animated movement sequences with full foreground and background color separation. With 16-bit RGBW color mixing and a variable CTO range of 2500K–8000K, the B6 delivers precision output through sharp 3.5° beams. Individual dynamic ring color effects and four personality modes (27/61/85/110 channels) make it versatile for everything from high-energy concerts to immersive installations. Compatible with DMX512, Art-Net, RDM, sACN, and Kling-Net, the 3SIXTY B6 ensures seamless integration into any advanced lighting setup. TRUE1 IN/OUT power connections and 5-pin DMX round out its professional-grade I/O. Includes TRUE1 power cable, 5-pin DMX cable, dual omega brackets, two safety cables, and a user manual. CE, cETL, FCC, and RoHS certified.
Technical specifications
Light Source
- 360W (6 x 60W) RGBW LED
- Ring Effect: 36W ( 180 x 0.2W) RGB SMD LEDs
- LED Life: 50,000 Hours
Color System
- 16 bit RGBW Color Mixing
- CTO: 2500K – 8000K
- Linear 16bit Color Temperature
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
Optics
- Beam Angle: 3.5°
Dynamic Effect
- Two Movement Modes:
360° Pan / Tilt Continuous Movement & 540° Pan / 270° Tilt Movement (8-bit and 16-bit) - Selectable preset home position Macros by DMX function channel for fast and easy programming
- Selectable fast and precise movement speed by DMX function channel
- Scan position memory with automatic tilt position correction
- Linear Dimmer: 0 – 100% Electronic Dimming
- Shutter / Strobe:
High Speed Electronic Shutter and Strobe - 0-25Hz Shutter/Strobe effect with Variable Speed
- Preset Pulse Strobe Effect with Variable Speed
- Random Strobe Effect with Variable Speed
- Sharp Beam Effect
- Dynamic Ring Effect with built-in Macros with variable speed
Control
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Personalities: 4 Modes 27/61/85/110
Body
- Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6)
with 30% glass fiber - Exterior finish: Black
Physical
- Cooling: Fan
- Connection: True1 (UL listed)
Power In/Out: True1 - Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45
- Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
- IP Rating: 20
Electrical
- Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)
- Power Consumption: 420W
- Power Linking for connecting fixture in daisy-chain:
Up to 5 units @110V with a 20A circuit
Up to 9 units @208V with a 20A circuit
Up to 9 units @230V with a 20A circuit - Fuse: F12A, 250V
- Certification / Qualifications:
CE, cETL, FCC, RoHS - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
- 1 x 3SIXTY B6
- 1 x TRUE1 Power Cable
- 1 x 5-Pin DMX Cable
- 1 x User Manual
- 2 x Omega Brackets
- 2 x Safety Cable
Item Dimensions & Weight
- Dimensions: 47.3″ x 10.5″ x 6.6″
- Weight: 49.4lbs
