CENTIPEDE 3SIXTY5 IP
SKU:
JP1006

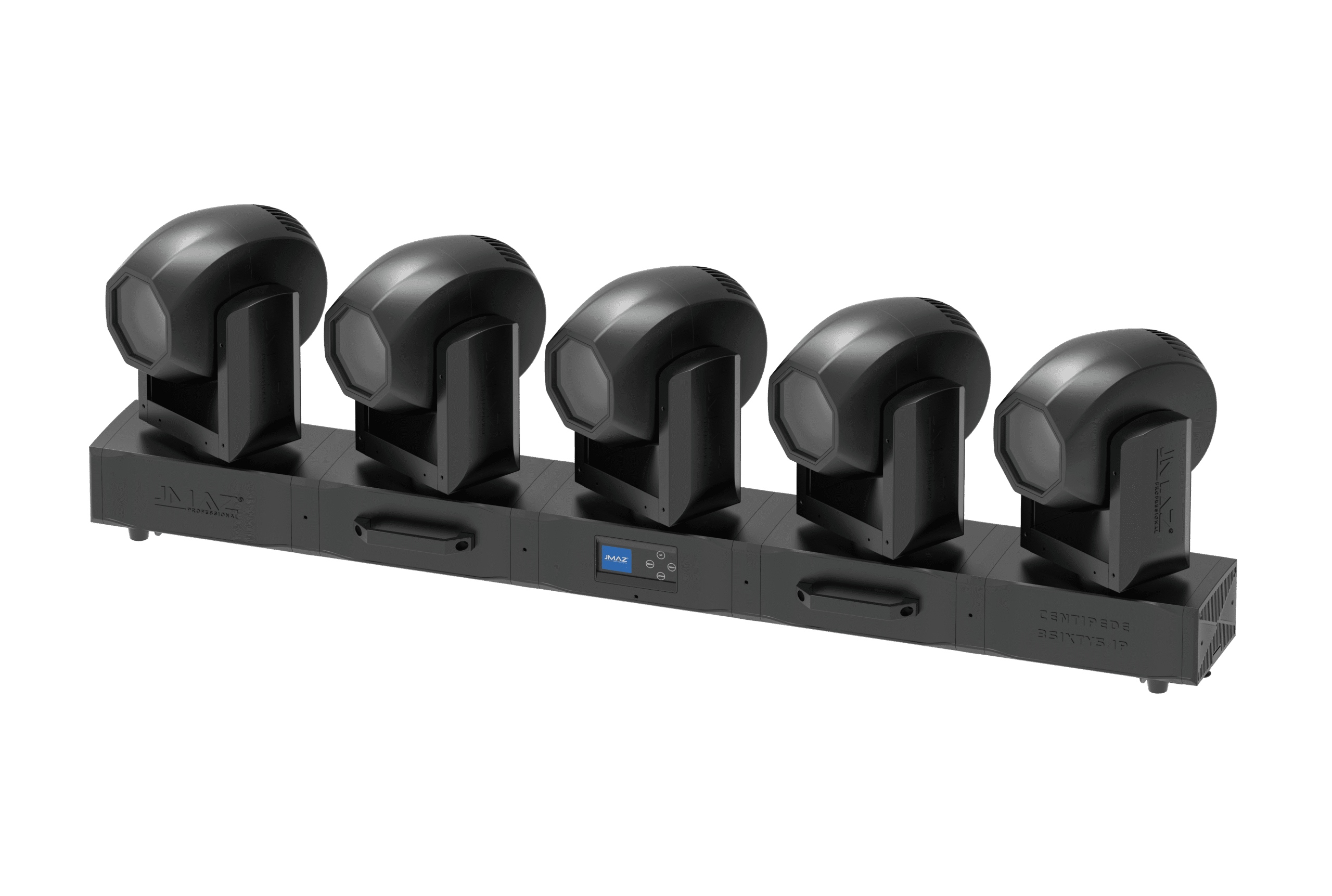

Centipede 3SIXTY5 IP RGB+LIME LED Intelligent 5 Moving Head Bar
Main features:
- Light Source: 775W (5 x 155W) RGBL LED
- Ring Effect: 85W (170 x 0.5W) RGB SMD LEDs
- Individual Head 360° Infinite Pan/Tilt Control
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
- Built-In Virtual Colors And Movement Macros w/ Foreground and Background Color Control
- Beam Angle: 3.5° to 37.5° Zoom Range
- 16 bit RGBW Color Mixing
- CTO: 2500K – 8000K
- Personalities: 4 Modes 43/70/100/118
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- IP Rating: 66
- Power Connection: TRUE1 In/Out
- Includes: TRUE1 Power Cable, 5-Pin DMX Cable, 2 Omega Bracket, 2 Safety Cable, Manual
- CE, cETL, FCC, RoHs Certified
Technical specifications
Light Source
- 775 W (5 x 155W) RGBL LED
- Ring Effect: 36W ( 180 x 0.2W) RGB SMD LEDs
- LED Life: 50,000 Hours
Color System
- 16 bit RGBL Color Mixing
- CTO: 2500K – 8000K
- Linear 16bit Color Temperature
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
Optics
- Beam Angle: 3.5° to 37.5° Zoom Range
Dynamic Effect
- Eye-Catching Colorful Kaleidoscope Effect
- 4 Facet Linear Prism
- Frost Filter with Wash Effect
- Two Movement Modes:
- 360° Pan / Tilt Continuous Movement & 540° Pan / 270° Tilt Movement (8-bit and 16-bit)
- Selectable preset home position Macros by DMX function channel for fast and easy programming
- Selectable fast and precise movement speed by DMX function channel
- Scan position memory with automatic tilt position correction
- Linear Dimmer: 0 – 100% Electronic Dimming
- Shutter / Strobe:
High Speed Electronic Shutter and Strobe - 0-25Hz Shutter/Strobe effect with Variable Speed
- Preset Pulse Strobe Effect with Variable Speed
- Random Strobe Effect with Variable Speed
- Sharp Beam Effect
- Dynamic Ring Effect with built-in Macros with variable speed
Control
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN
- Personalities: 4 Modes 43/70/100/118
Body
- High-tension, fire-resistant molded enclosure reinforced with carbon fiber
- Internal structural framework constructed from aluminum and steel plates
- Exterior finish: Black
Physical
- Cooling: Fan
- Connection: True1 (UL listed)
- Power In/Out: True1
- Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45
- Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
- IP Rating: 66
Electrical
- Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)
- Power Consumption: 1000W
- Power Linking for connecting fixture in daisy-chain:
- Up to 2 units @110V with a 20A circuit
- Up to 4 units @208V with a 20A circuit
- Up to 4 units @230V with a 20A circuit
- Fuse: F12A, 250V
- Certification / Qualifications:
CE, cETL (Pending), FCC, RoHS - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
- 1 x 3SIXTY5 IP
- 1 x TRUE1 Power Cable
- 1 x 5-Pin DMX Cable
- 1 x User Manual
- 2 x Omega Brackets
- 2 x Safety Cable
Item Dimensions & Weight
- Dimensions: 54.33″ x 16.73″ x 7.87″ / 1380 x 200 x 425mm
- Weight: 88.84lbs (40.3kg)
UPC
618528599755Download
