Centipede B4

SKU:

JP1001

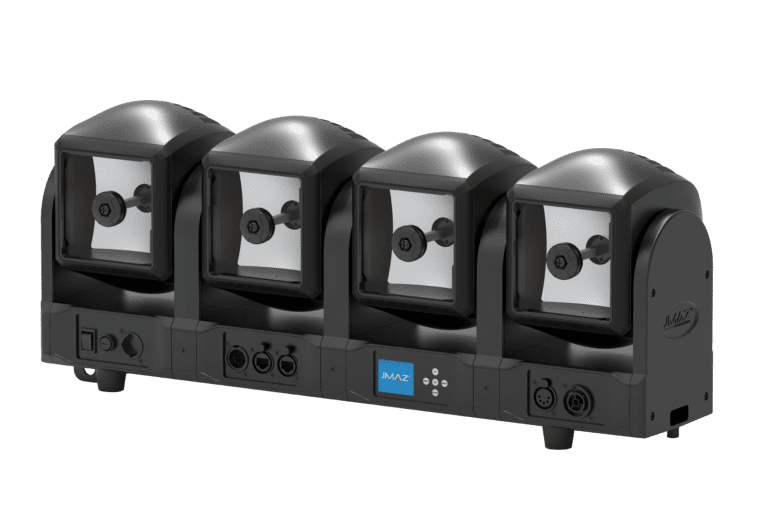

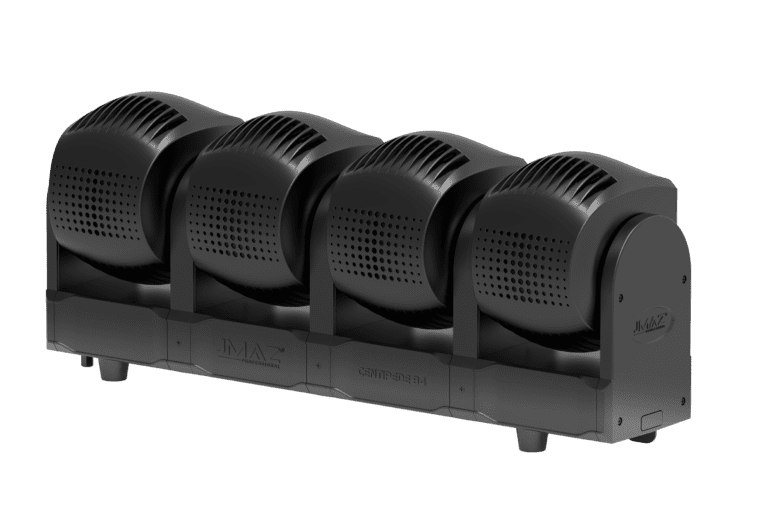

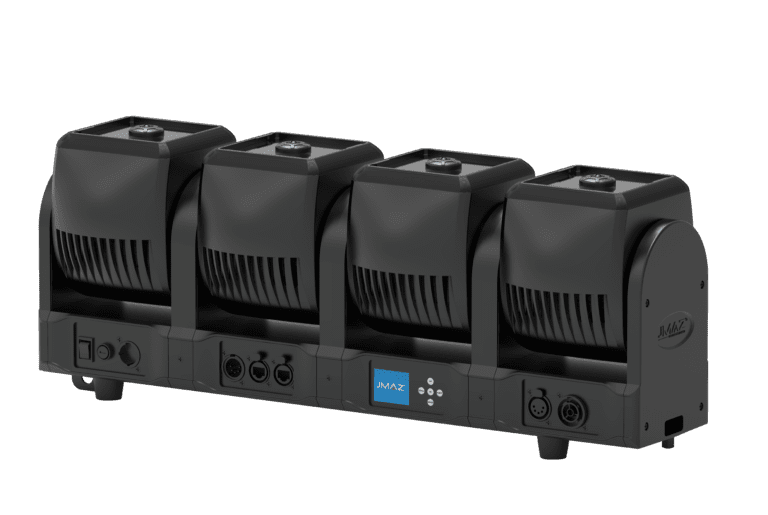

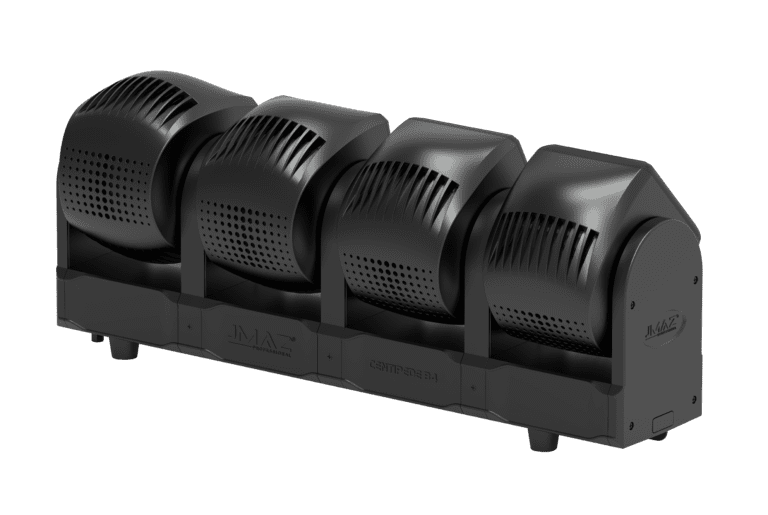

JMAZ Professional Centipede B4 270W LED Intelligent Bar RGBW LED

ETL



Main features:

  • 240W (4 x 60W) RGBW LED
  • Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs
  • Individual Head 360° Infinite Tilt Control
  • Individual Head Pixel Control
  • Individual Dynamic Ring Color And Effect Macro
  • Built-In Virtual Colors And Movement Macros w/ Foreground and
  • Background Color Control
  • Beam Angle: 3.5°
  • 16 bit RGBW Color Mixing, CTO: 2500K – 8000K
  • Personalities: 4 Modes 24/55/66/86
  • Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
  • Power Connection: TRUE1 In/Out
  • CE, cETL, FCC, Rohs Certified
  • Includes: TRUE1 Power Cable, 5-Pin DMX Cable, 2 Omega Bracket, 2 Safety Cable, Manua

Product Description

The JMAZ Professional Centipede B4 270W LED features 240W RGBW LEDs, 24W RGB SMD ring effects, and 360° infinite tilt control. With individual pixel and ring control, dynamic color macros, and CTC (2500K-8000K), it offers vibrant and versatile lighting. A 3.5° beam angle and advanced protocols (DMX512, Art-Net, Kling-Net) ensure professional-grade performance, making it ideal for captivating light displays.

Technical specifications

Light Source

  • 4 x 60W RGBW LED Engine
  • 120 x 0.2W RGB SMD LED (30 LEDs per Head)
  • LED Life Expectancy: 50,000 Hours

Color System

  • RGBW color mixing 16 bit
  • Linear 16bit color temperature (range) 2500 -8000K
  • Pixel Mapping capability with individual pixel control on each LED
  • Dynamic RBG color Marcos for Eye-candy (Outer Ring)

Optics

  • Beam Angle:3.5°

Dynamic Effect

  • Movement:

Tilt: 2 modes

  1. 360-degree continuous movement
  2. 240-degree ( 8 bit and 16 bit)

Selectable preset home position Macros by DMX function channel for fast and easy programming

Selectable fast and precise movement speed by DMX function channel

Scan position memory with automatic tilt position correction

  • Dimmer: 0 – 100% smooth linear electronic dimming
  • Shutter/ Strobe
    • High speed electronic shutter and strobe
    • 0-25Hz shutter/ strobe effect with variable speed
    • Preset pulse strobe effect with variable speed
    • Random strobe effect with variable speed
  • Sharp Beam Effect
  • Dynamic Ring Effect with built-in Macros with variable speed

Control

  • Control Protocol: DMX, Art-Net, RDM, sACN
  • Personalities: 3 modes: 21/39/61 Control Channels

Electronics

  • Linear LED Dimmer: 0-100% Smooth
  • Linear CTO: 2500-8000K
  • Strobe Shutter: 1-25 Hz Variable

Body

  • Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber
  • Exterior finish: Black

Physical

  • IP Rating: 20
  • Cooling: Fan
  • Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
  • Power Input: Seetronic Powercon IP65 True1
  • Power Output: Seetronic Powercon IP65 True1
  • Data Connectors: Seetronic 5pin XLR; Seetronic etherCON
  • Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
  • Dimensions: 23.7″ x 9.3” x 6.6”
  • Weight: 22 lbs.

Electrical

  • Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)
  • Power Consumption: 320W
  • Power Linking for connecting fixture in daisy-chain
    • Up to 6 units @110V with a 20A circuit
    • Up to 12 units @208V with a 20A circuit
    • Up to 12 units @230V with a 20A circuit
    • Fuse: F12A, 250V
  • Certification / Qualifications
    • cETLus Listed, CE, FCC
    • IP Rating: IP 20
    • Operating Temperature: 40 ° C ( 104 °F)
    • Minimum Temperature: – 10 ° C ( 14 ° F)
    • Maximum Temperature: 60 ° C ( 140 ° F)

Box Content

  • 1 x Centipede B4
  • 1 x Powercon IP65 TRUE1 Power cable
  • 1 x 5 pin DMX Cable
  • 1 x User Manual
  • 2 x Omega Brackets
  • 1 x Safety Cable

UPC

618528598673

Warranty

3 Years

Video

Download

DMX Charts

File name File size Download
Letter datasheet Centipede_B4_DMX_Charts_1.PDF 500KB Letter datasheet
Letter datasheet Centipede_B4_DMX_Charts_2.PDF 500KB Letter datasheet
Letter datasheet Centipede_B4_DMX_Charts_3.PDF 500KB Letter datasheet

Profiles

File name File size Download
CentipedeB4_Profiles Folder 500KB

Photometrics

File name File size Download
Letter datasheet Centipede_B4_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet Centipede_B4_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet Centipede_B4_Tech-Sheet.PDF 500KB Letter datasheet

Certifications

File name File size Download
Letter datasheet CentipedeB8_ETLCertificate 500KB Letter datasheet
Letter datasheet CentipedeB8_CECertificate 500KB Letter datasheet
