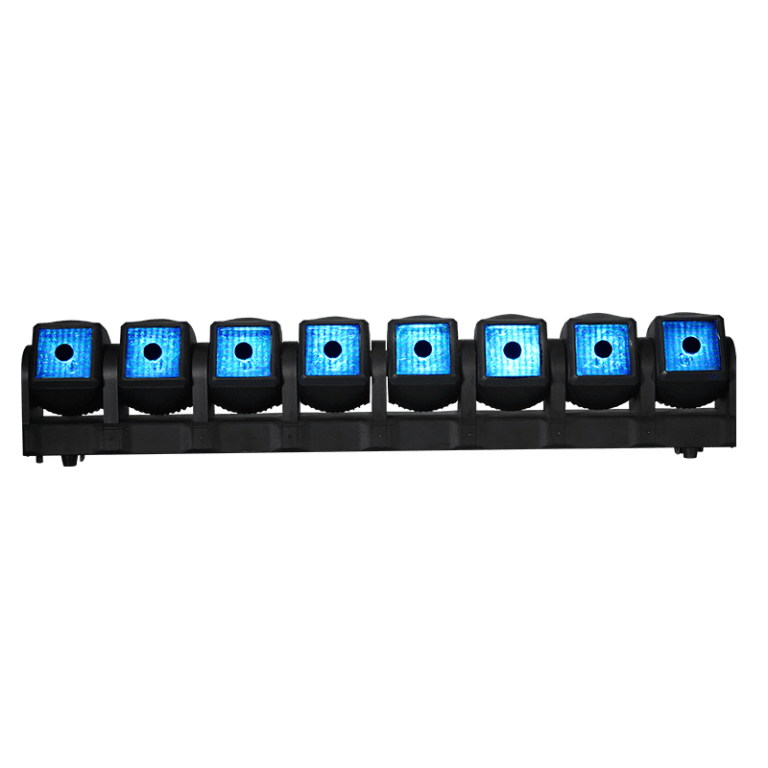

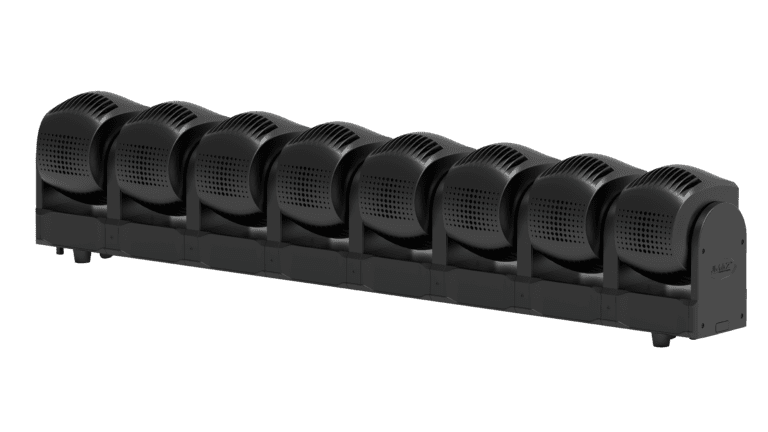

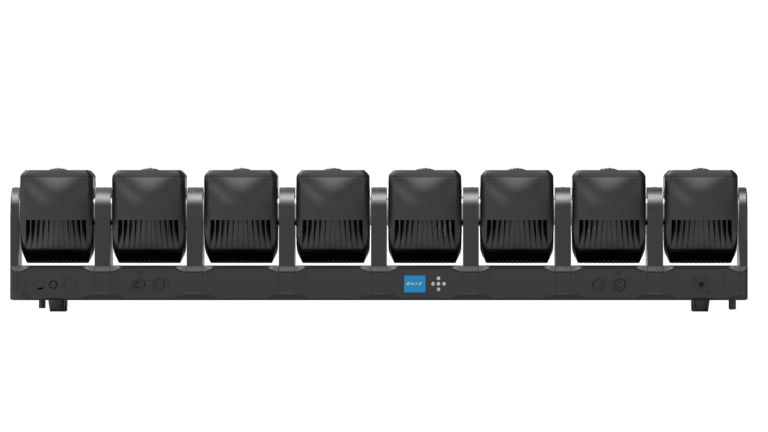

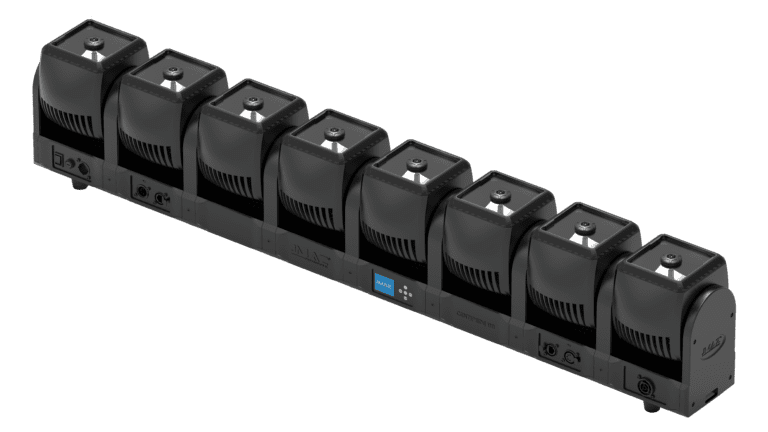

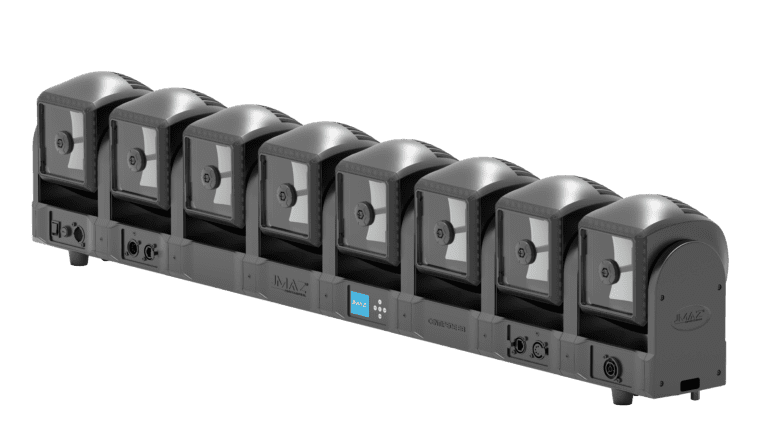

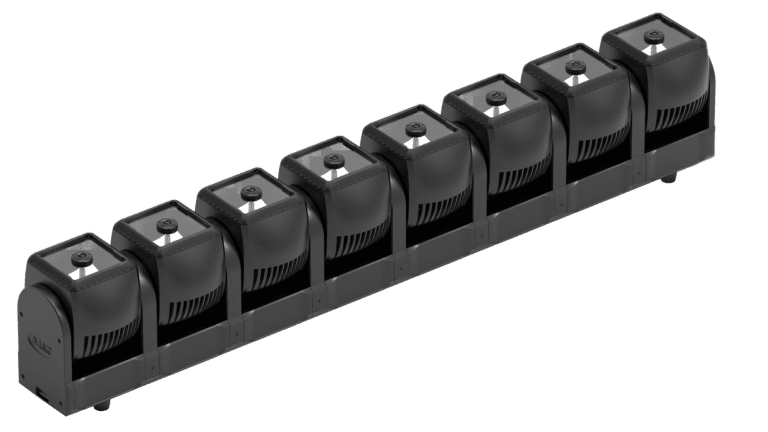

Centipede B8

SKU:

JP1002

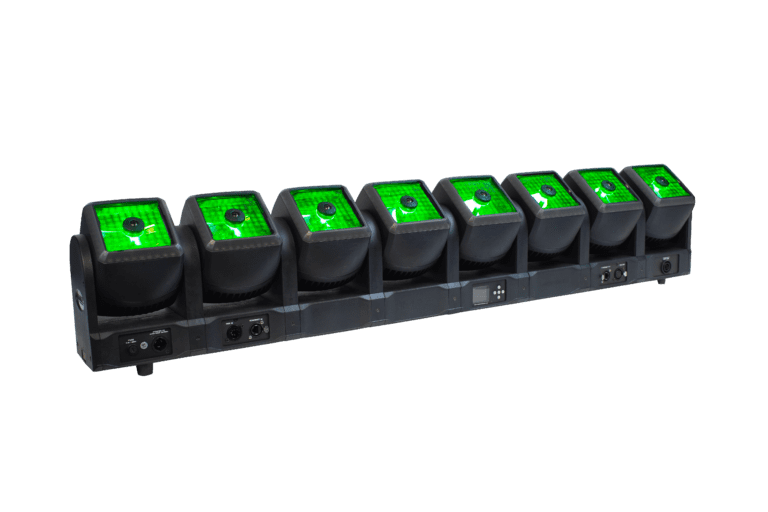

The Centipede B8 is the ultimate stage lighting bar fixture designed to elevate your performances to new heights. With its 8 individual moving heads, each powered by a formidable 60W RGBW LED light source, the Centipede B8 delivers an unparalleled lighting experience that will captivate audiences and mesmerize spectators.

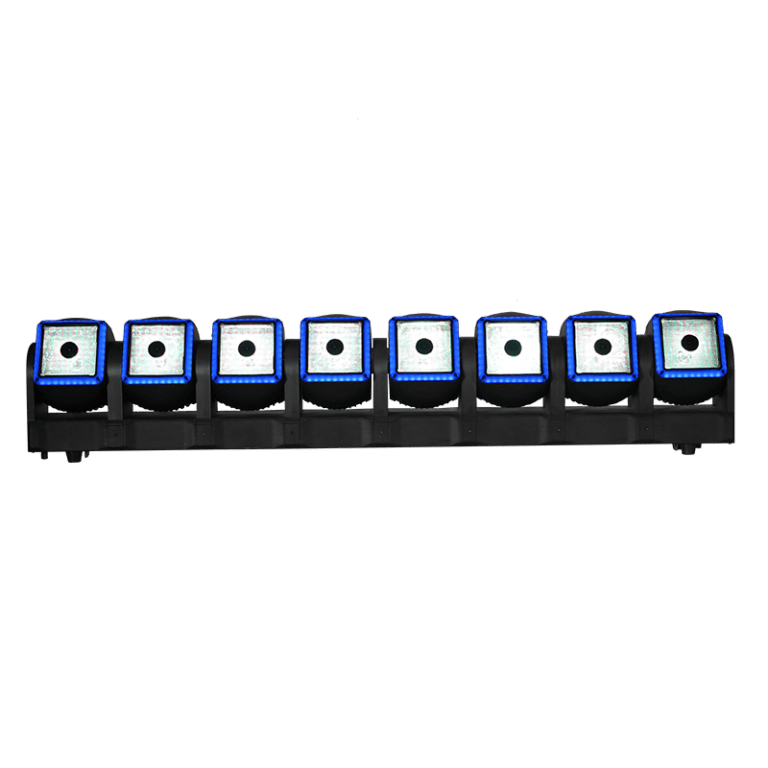

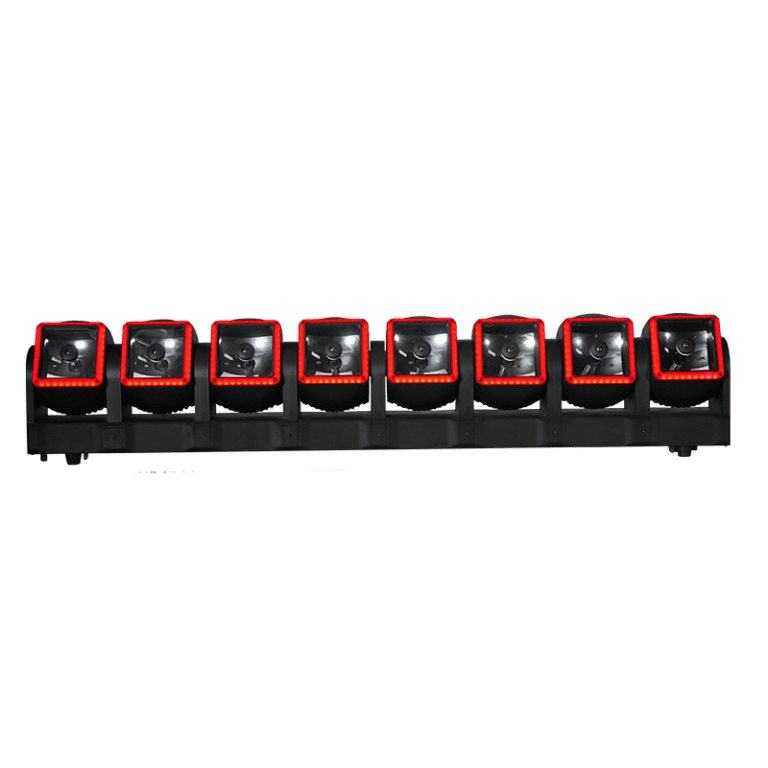

Featuring a cutting-edge mirror-based optical system, the Centipede B8 produces a stunning array of dynamic, sharp, and collimated beam lighting effects that add depth and dimension to any stage. But that’s not all – thanks to its innovative front neon ring design on each head, this fixture brings an extra touch of brilliance and magic to every performance.

The Centipede B8 sets itself apart with its flexible 360° continuous TILT movement, allowing for precise adjustments and aiming of each lighting head in any direction. Lighting professionals and performers alike will appreciate the ease with which custom lighting setups can be created to suit the unique requirements of any event.

With a range of advanced lighting effects including strobe, color mixing, and chase effects, the Centipede B8 puts creative control at your fingertips. Easily accessed and controlled via DMX function channel, you can effortlessly tailor your lighting to suit the mood and atmosphere of your performance.

Built to withstand the rigors of live events and touring, the Centipede B8 boasts rugged construction and high-quality components, ensuring reliable and consistent performance night after night. Plus, with seamless connectivity between multiple Centipede B8 units, you can create synchronized movements that produce an impressive wave of light, perfectly paralleled to each other thanks to its 3.5° projection angle.

Designed with a proper LED refresh rate for flicker-free operation ideal for TV and film, the Centipede B8 is the perfect choice for large-scale live concerts, TV productions, road shows, clubs/bars, weddings, and more.

The Centipede B8 is a powerhouse lighting fixture that combines advanced features, versatility, and durability to deliver an unforgettable visual experience. Whether you’re a lighting professional or a performer, the Centipede B8 is sure to impress and elevate your performances to the next level.

Main features:

  • Versatile Lighting: Equipped with an 8 x 60W RGBW LED Engine and 240 x 0.2W RGB SMD LEDs, providing a wide range of lighting options for any setting. Eight individually controllable tilting heads offer either 360-degree continuous or 240-degree movement.
  • Advanced Color Control: Utilizes RGBW color mixing with 16-bit precision and linear 16-bit color temperature control ranging from 2500K to 8000K, offering precise and vibrant color options.
  • Pixel Mapping Capability: Allows for individual pixel control on each LED, enabling intricate and dynamic lighting designs.
  • Reliable Connectivity: Equipped with Seetronic Powercon IP65 True1 connectors for power input and output, along with Seetronic 5-pin XLR and etherCON data connectors for reliable data transmission.
  • Precise Control: Compatible with multiple control protocols including DMX, Art-Net, RDM, and sACN, offering flexibility and ease of use.
  • Certified Quality: cETLus Listed, CE, and FCC certified, with an IP Rating of 20, ensuring compliance with safety and quality standards.
  • Comprehensive Built-in Effects: Delivers an array of sophisticated effects, encompassing virtual colors and movement macros with foreground and background color control, facilitating effortless pixel animation effects.

Technical specifications

Light Source

  • 8 x 60W RGBW LED Engine
  • 240 x 0.2W RGB SMD LED (30 LEDs per Head)
  • LED Life Expectancy: 50,000 Hours

Color System

  • RGBW color mixing 16 bit
  • Linear 16bit color temperature (range) 2500 -8000K
  • Pixel Mapping capability with individual pixel control on each LED
  • Dynamic RBG color Marcos for Eye-candy (Outer Ring)

Body

  • Die-cast Aluminum and Steel structure with high impact flame retardant PA6 GF 30 (Polyamide 6) with 30% glass fiber
  • Exterior finish: Black

Electronics

  • Linear Dimmer: 0-100% Smooth Linear LED
  • Linear CTO: 2500-8000K
  • Strobe Shutter: 1-25 Hz Variable

Electrical

  • Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)
  • Power Consumption: 640W
  • Power Linking for connecting fixture in daisy-chain
    • Up to 3 units @110V with a 20A circuit
    • Up to 6 units @208V with a 20A circuit
    • Up to 6 units @230V with a 20A circuit
    • Fuse: F12A, 250V
  • Certification / Qualifications
    • cETLus Listed, CE, FCC
    • IP Rating: IP 20
    • Operating Temperature: 40 ° C ( 104 °F)
    • Minimum Temperature: – 10 ° C ( 14 ° F)
    • Maximum Temperature: 60 ° C ( 140 ° F)



UPC

618528598680

Optics

  • Beam Angle:3.5°

Dynamic Effect

  • Movement:

Tilt: 2 modes

  1. 360-degree continuous movement
  2. 240-degree ( 8 bit and 16 bit)

Selectable preset home position Macros by DMX function channel for fast and easy programming

Selectable fast and precise movement speed by DMX function channel

Scan position memory with automatic tilt position correction

  • Dimmer: 0 – 100% smooth linear electronic dimming
  • Shutter/ Strobe
    • High speed electronic shutter and strobe
    • 0-25Hz shutter/ strobe effect with variable speed
    • Preset pulse strobe effect with variable speed
    • Random strobe effect with variable speed
  • Sharp Beam Effect
  • Dynamic Ring Effect with built-in Macros with variable speed

Control

  • Control Protocol: DMX, Art-Net, RDM, sACN
  • Personalities: 3 modes: 22/59/85 Control Channels

Physical

  • IP Rating: 20
  • Cooling: Fan
  • Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
  • Power Input: Seetronic Powercon IP65 True1
  • Power Output: Seetronic Powercon IP65 True1
  • Data Connectors: Seetronic 5pin XLR; Seetronic etherCON
  • Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
  • Dimensions: 47.3″ x 9.3″ x 6.6″
  • Weight: 42.1 lbs.

Box Content

  • 1 x Centipede B8
  • 1 x Powercon IP65 TRUE1 Power cable
  • 1 x 5 pin DMX Cable
  • 1 x User Manual
  • 2 x Omega Brackets
  • 2 x Safety Cable

Video

Download

DMX Charts

File name File size Download
Letter datasheet Centipede_B8_DMX_Charts_1.PDF 500KB Letter datasheet
Letter datasheet Centipede_B8_DMX_Charts_2.PDF 500KB Letter datasheet
Letter datasheet Centipede_B8_DMX_Charts_3.PDF 500KB Letter datasheet

Profiles

File name File size Download
CentipedeB8_Profiles Folder 500KB

Photometrics

File name File size Download
Letter datasheet Centipede_B8_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet Centipede_B8_CAD_Drawings.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet Centipede_B8_Data_Sheet.PDF 500KB Letter datasheet

Certifications

File name File size Download
Letter datasheet CentipedeB8_ETLCertificate 500KB Letter datasheet
Letter datasheet CentipedeB8_CECertificate 500KB Letter datasheet
