Centipede QUADRO

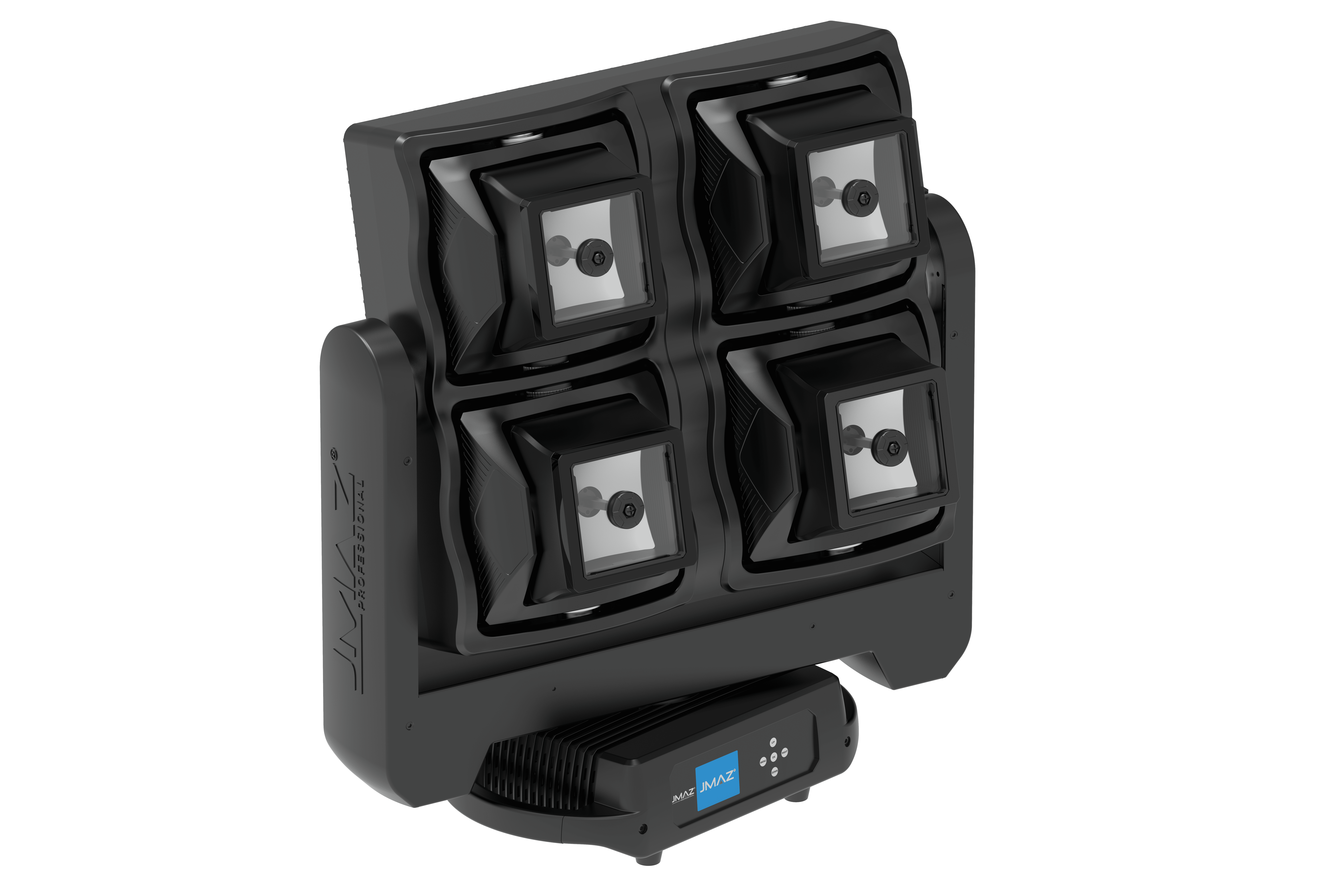

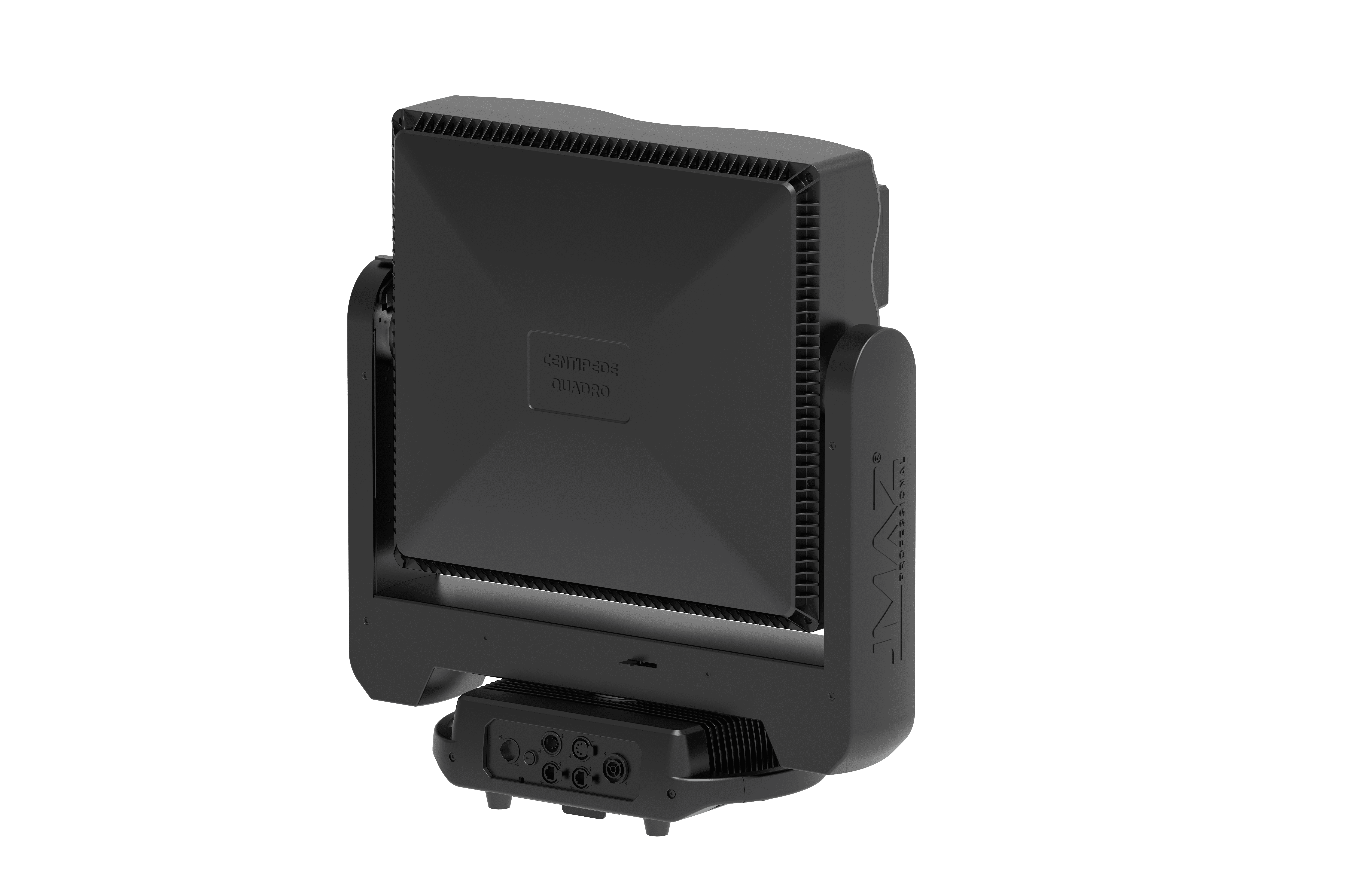

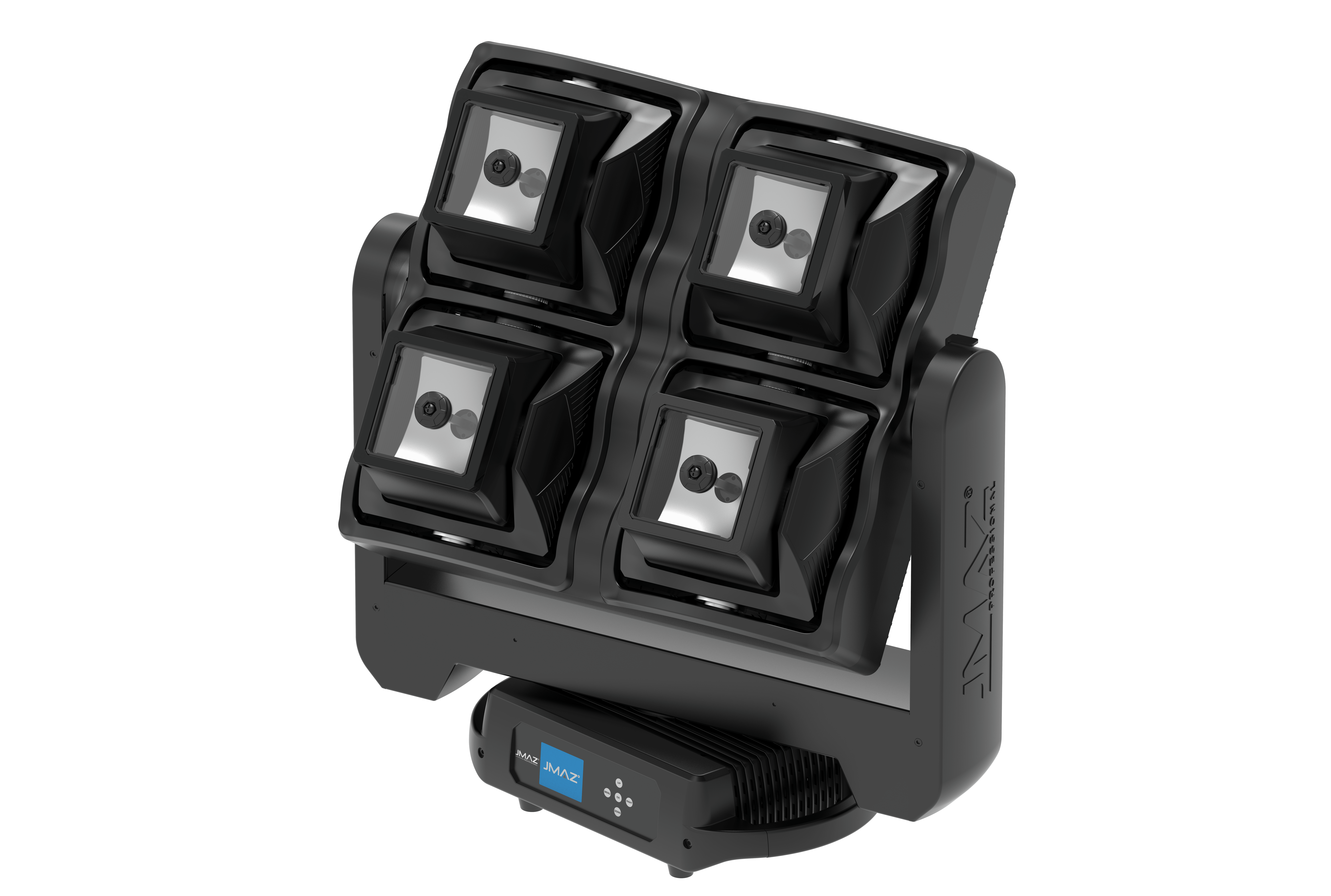

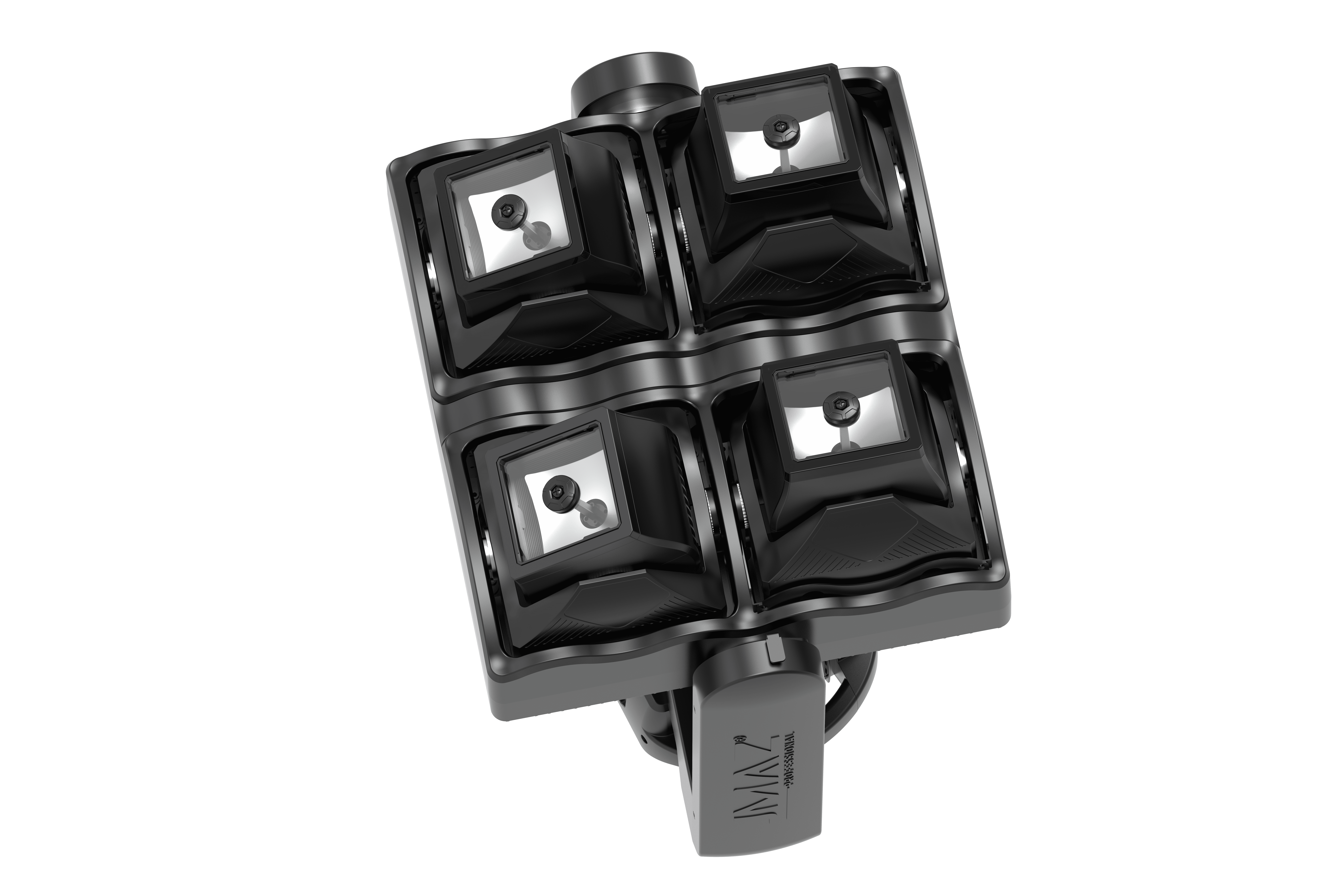

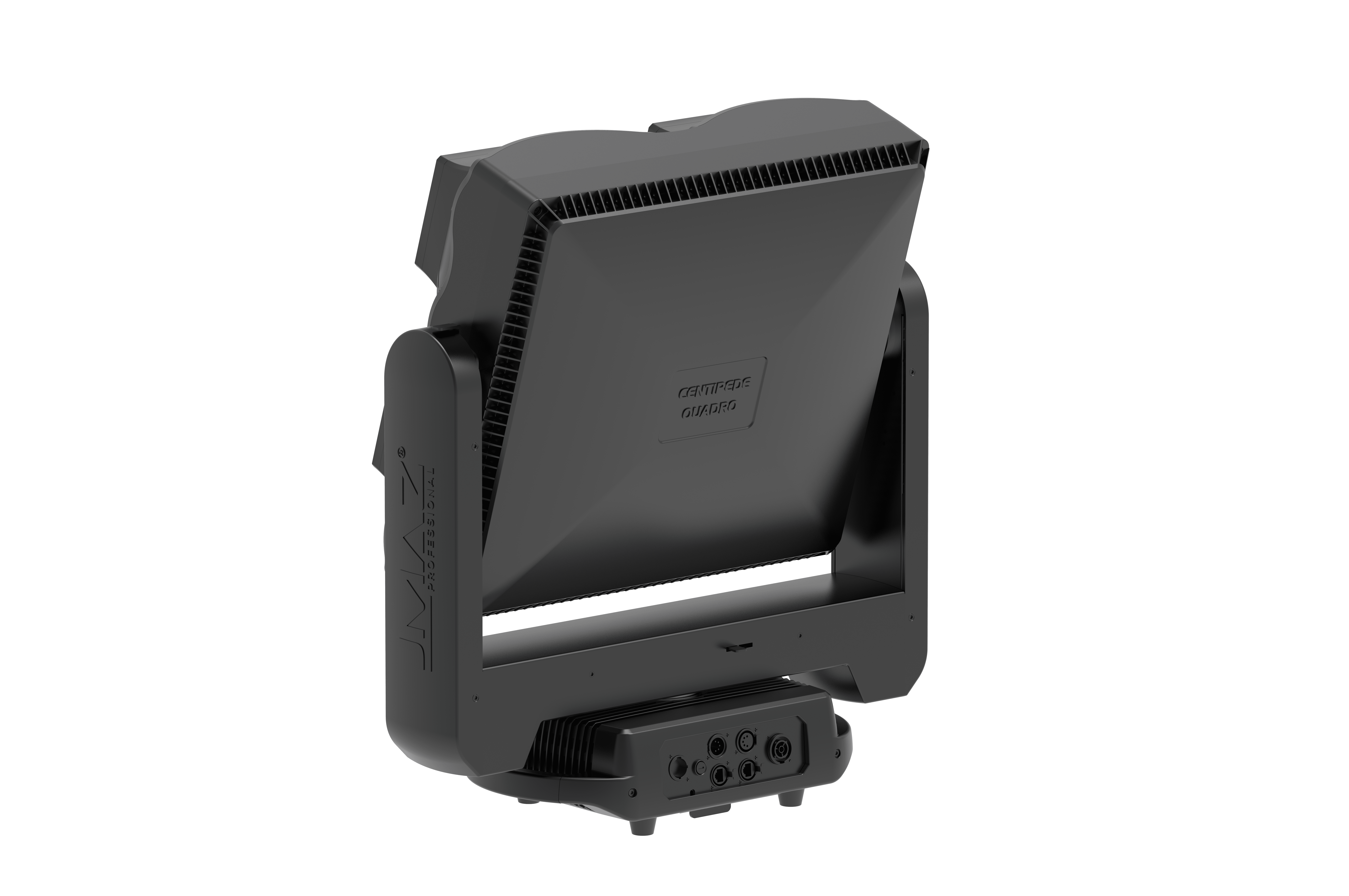

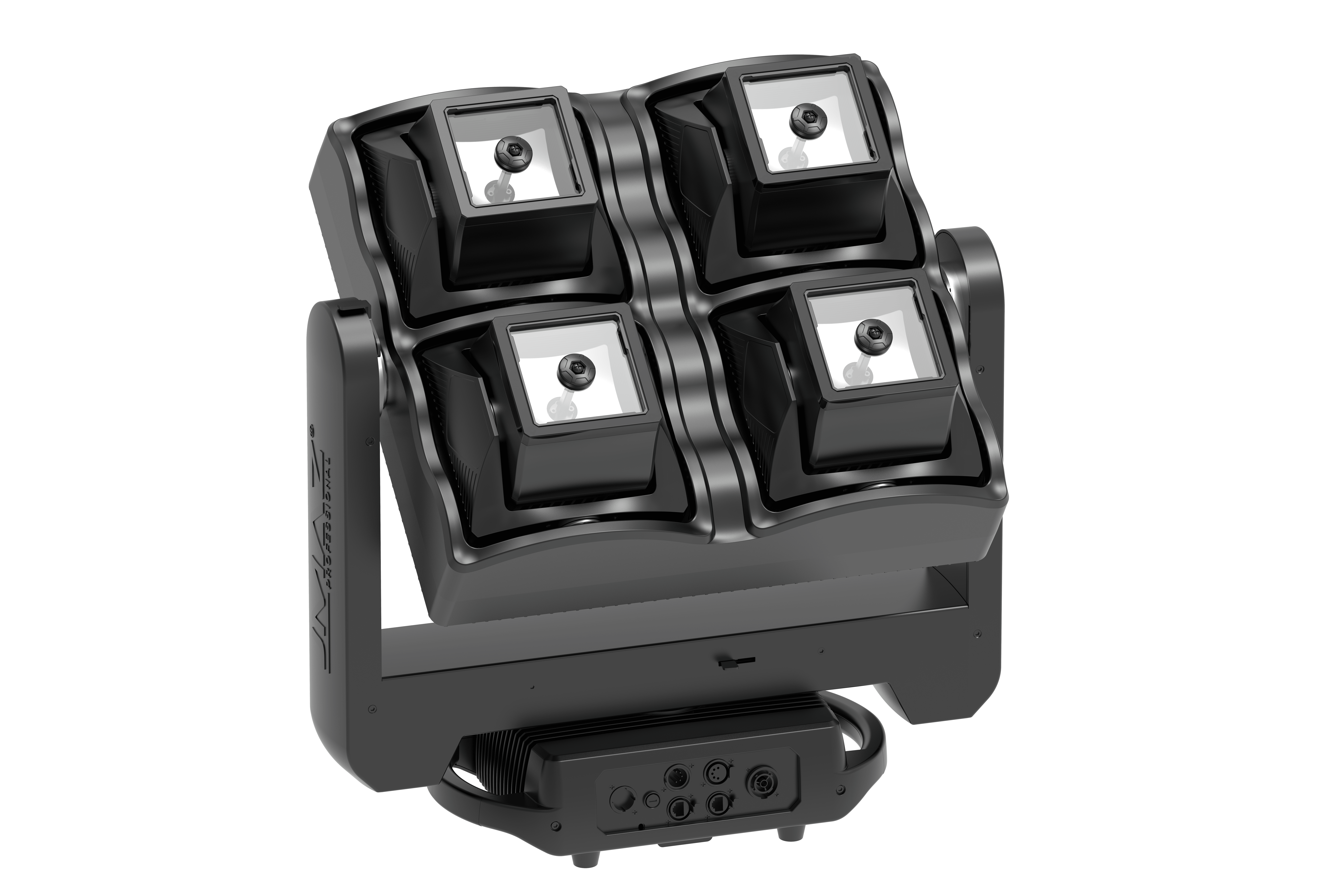

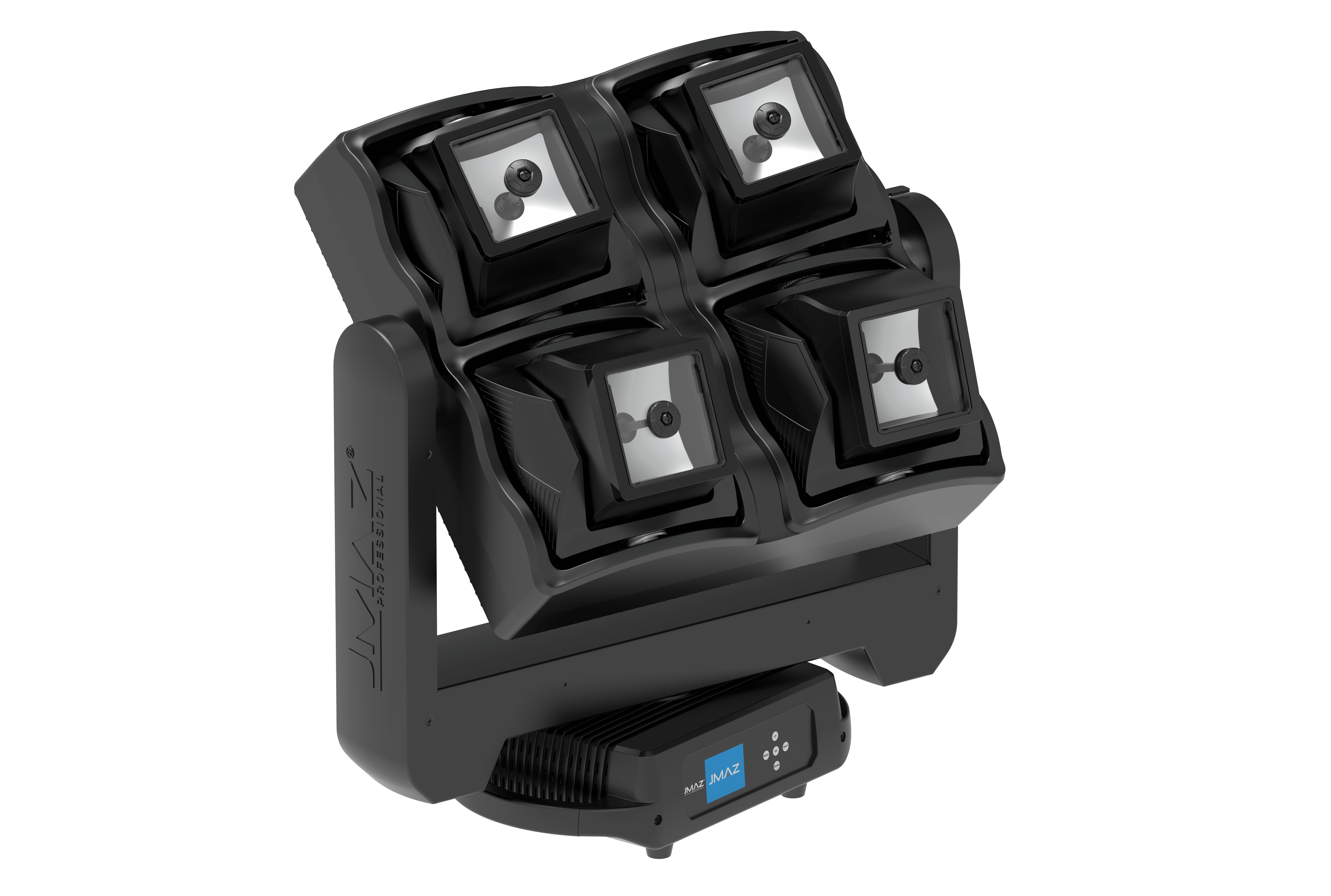

Centipede QUADRO RGBW LED Intelligent Quad Moving Head
Main features:
- Light Source: (4) 60W RGBW LED
- Ring Light Source: (120) 0.2W RGB SMD LEDs
- 360° Infinite Pan/Tilt Control
- Individual Head Pixel Control
- Individual Head 76° Pan/Tilt
- Individual Dynamic Ring Color And Effect Macro
- Built-In Virtual Colors And Movement Macros
- Beam Angle: 3.5°
- 16 bit RGBW Color Mixing, CTO: 2500K – 8000K
- Personalities: 3 Modes 38/46/88
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Power Connection: TRUE1 In/Out
- Includes: TRUE1 Power Cable, 5-Pin DMX Cable, 2 Omega Bracket, 2 Safety Cable, Manual
- CE, cETL, FCC, RoHs Certified
Product Description
The JMAZ Professional Centipede QUADRO is an advanced RGBW LED moving head fixture engineered for immersive lighting effects and full-stage dynamics. Equipped with four powerful 60W RGBW LEDs and a vibrant 120-piece RGB SMD LED ring, this fixture delivers sharp 3.5° beams with stunning color accuracy and definition. Each head offers independent 76° pan/tilt movement and pixel control, while the entire fixture features 360° infinite pan/tilt for fluid, sweeping effects. Enhanced with dynamic ring color macros, built-in virtual colors, and movement presets, the Centipede Quadro enables complex designs with minimal programming. With 16-bit RGBW color mixing and CTO ranging from 2500K to 8000K, it provides complete control over mood and tone. Operating in 3 DMX personality modes (38/46/88 channels) and supporting multiple protocols including DMX512, Art-Net, RDM, sACN, and Kling-Net, this fixture ensures seamless integration into modern lighting systems. TRUE1 IN/OUT power and 5-pin DMX provide reliable connectivity. Each unit includes a TRUE1 power cable, DMX cable, dual omega brackets, two safety cables, and a manual. CE, cETL, FCC, and RoHS certified.
Technical specifications
Light Source
- 240W (4 x 60W) RGBW LED
- Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs
- LED Life: 50,000 Hours
Color System
- 16 bit RGBW Color Mixing
- CTO: 2500K – 8000K
- Linear 16bit Color Temperature
- Individual Head Pixel Control
- Individual Dynamic Ring Color And Effect Macro
Optics
- Beam Angle: 3.5°
Dynamic Effect
- Two Movement Modes:
360° Infinite Pan / Tilt Control / 540° Pan and 270° Tilt Control (8-bit and 16-bit) - 76° Individual Head Pan / Tilt (8-bit and 16-bit)
- Selectable Preset Home Position Macros by DMX Function channel for fast and easy programming
- Selectable Fast and Precise Movement Speed by DMX Function channel
- Scan Position Memory with Automatic Pan / Tilt Position Correction
- Shutter / Strobe:
High Speed Electronic Shutter and Strobe - 0-25Hz Shutter/Strobe effect with Variable Speed
- Preset Pulse Strobe Effect with Variable Speed
- Random Strobe Effect with Variable Speed
- Sharp Beam Effect
- Dynamic Ring Effect with built-in Macros with variable speed
Control
- Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Personalities: 3 Modes 38/46/88
Body
- Die-cast Aluminum and Steel Structure with High Impact Flame Retardant PA6 GF 30 (Polyamide 6) with 30% Glass Fiber
- Exterior Finish: Black
Physical
- Cooling: Fan
- Power Connection: TRUE1 (UL Listed)
- Power IN/OUT: TRUE1
- Protocol Connectors: 5-Pin DMX512 IN/OUT, Art-Net RJ45
- Cable Length: Power 5ft. (1.5meter); DMX 5ft (1.5meter)
- IP Rating: 20
Electrical
- Input Voltage: 100 – 240V AC, 50/60Hz (Auto Ranging with Active PFC)
- Power Consumption: 320W
- Power Linking for Connecting Fixture in Daisy-Chain:
Up to 5 Units @ 110V with a 20A Circuit
Up to 9 Units @ 208V with a 20A Circuit
Up to 10 Units @ 220V with a 20A Circuit - Fuse: F12A, 250V
- Certification / Qualifications:
CE, cETL, FCC, RoHS - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
- 1 x Centipede QUADRO
- 1 x 5-Pin DMX Cable
- 1 x User Manual
- 2 x Omega Brackets
- 2 x Safety Cable
Item Dimensions & Weight
- Dimensions: 22.9″ x 10.5″ x 25″
- Weight: 73.7lbs
