Electro T4
SKU:
JP2001
Electro T4 RGBW LED Battery Powered Outdoor Tube
Main features:
- Light Source: 90W (288 x 0.3W) RGBW SMDs LED Tube
- Max 15 Hour Battery Life / 30 Hour Battery Saver Mode
- 5 Hour Charging Time
- IP65 Outdoor Rated
- CTO: 2800-10000K
- Beam Angle: 180°

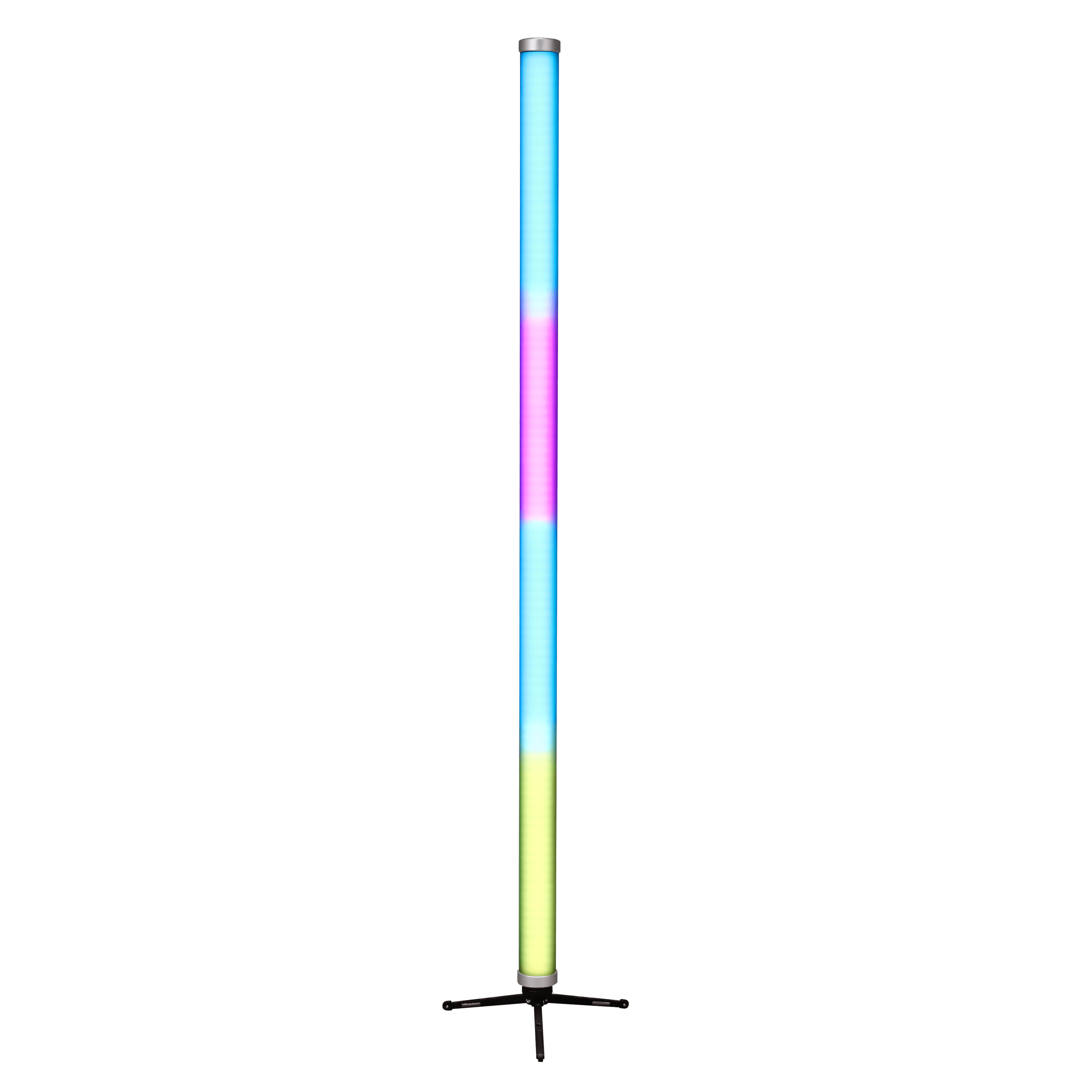

- 32 Individual Pixel Control
- 35 Preset Color Programs
- 4 Advanced Sound Active Modes w/ 15 Color Options
- 68 Auto / Fade Built-In Programs
- Personalities: 7 Modes 2/4/6/11/32/64/128
- Protocol: DMX512, Wireless DMX, Wifi, IR Remote

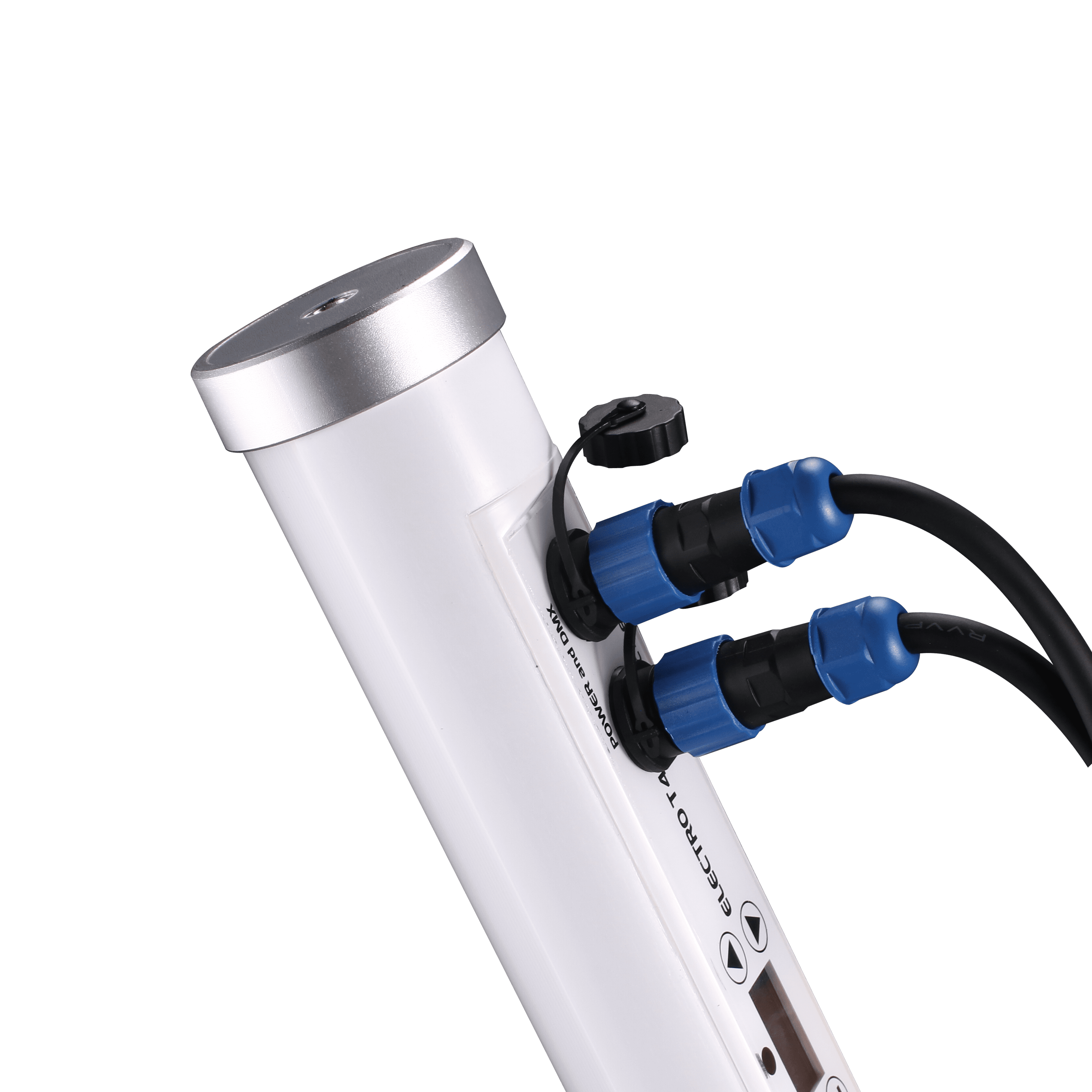

- Power Connection: 5-Pin Socket
- Includes: Tripod Stand, 2 x Eyebolts, 1 x Tube Extender Screw, 2 x 5-Pin DMX Cables, 1x AC Charger, 1x IR Remote, 2x Spare Connection Caps, 1x QSG, 1x Manual
- CE, FCC, RoHs Certified
Product Description
The JMAZ Professional Electro T4 is a versatile, battery-powered RGBW LED tube built for dynamic lighting indoors or out. Featuring 288 high-output SMD LEDs at 90W total, it delivers brilliant, even coverage with a wide 180° beam angle and 32-pixel control zones for precision effects. The fixture offers up to 15 hours of battery life—or 30 hours in battery saver mode—and fully recharges in just 5 hours. Designed for rugged environments, it boasts an IP65 rating and adjustable CTO from 2800K to 10000K for optimal white balance. Packed with creative potential, the Electro T4 includes 35 preset color programs, 4 advanced sound-active modes with 15 color variations, and 68 built-in auto/fade sequences. With 7 personality modes (2 to 128 channels) and compatibility with DMX512, wireless DMX, WiFi, and IR remote control, it fits seamlessly into any rig. Accessories include a tripod stand, tube extender, IR remote, DMX cables, charger, and more. Power connection is handled via a 5-pin socket. CE, FCC, and RoHS certified.
Technical specifications
Light Source
- 288 x 0.3W RGBW LEDs
- LED Life Expectancy: 50,000 Hours
Color System
- RGBW Color Mixing 8/16 Bit
- CTO: 2800K to 10000K
Optics
- Beam Angle: 180°
Dynamic Effect
- Individual Dynamic Chase, Fade, Static and Sound Active Modes
- Max 15 Hour Batery Life / 30 Hour In Battery Saving Mode
- Charging Time: 5 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 35 Preset Color Programs
- 4 Advanced Sound Active Mode with 15 Color Options
- 68 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading / Jumping Macros Light Change and Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25Hz
- Preset Color Temperature
Control
- Protocol: DMX512, Wireless DMX, Wi-Fi, IR Remote
- Personalities (7 Modes): 2CH; 4CH; 6CH; 11CH; 32CH -8 Pixels;
64CH -16 Pixels; 128CH -32 Pixels - OLED Graphical Display
Electronics
- Linear Dimmer: 0 – 100%
- Strobe Shutter: 1-20Hz Variable
- Refresh Rate: 20KHz
- Control Pixel: 32 Pixels
Body
- Polycarbonate + Aluminium
Physical
- IP Rating: 65
- Cooling: Fanless
Electrical
- Input Voltage: 100 – 240V AC, 50/60Hz
- Power Consumption: 50W
- PWM: 1.5KHz
- Battery Voltage: 12.6V / 18Ah
- Battery Capacity: 21,700mAH, 273.4 Wh/hour
- Charger: 12.6V, 2A
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
- Certification / Qualifications
CE, FCC, RoHS - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
- 1x Tripod Stand
- 2 x Eyebolts
- 1 x Tube Extender Screw
- 2 x 5-Pin DMX Cables
- 1 x AC Charger
- 1 x IR Remote
- 2 x Spare Connection Caps
- 1 x QSG
- 1 x Manual
Item Dimensions & Weight
- Dimensions: 46.9″ x 2.1″ x 2.1″
- Weight: 3.86lbs
