Electro T5
SKU:
JP2002

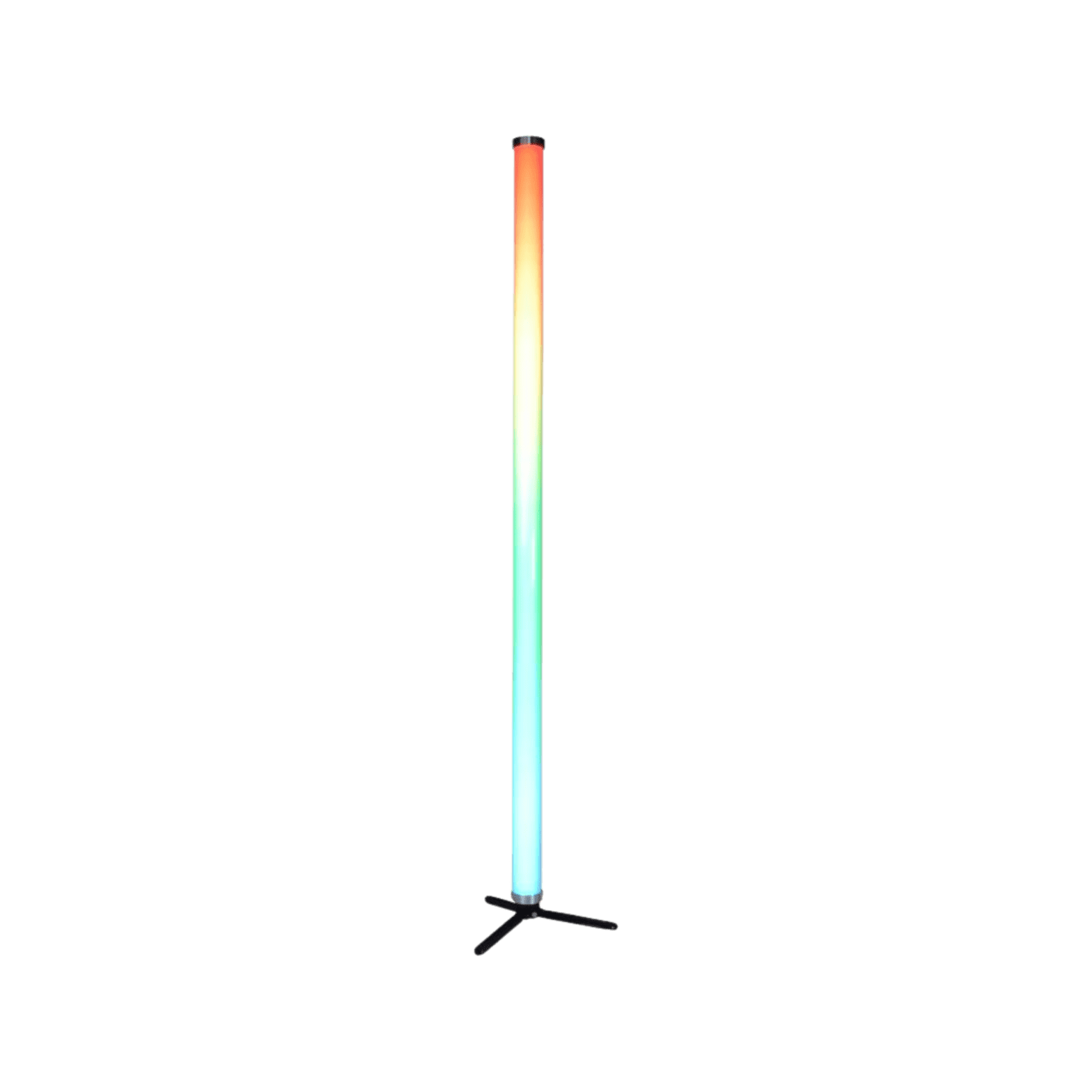

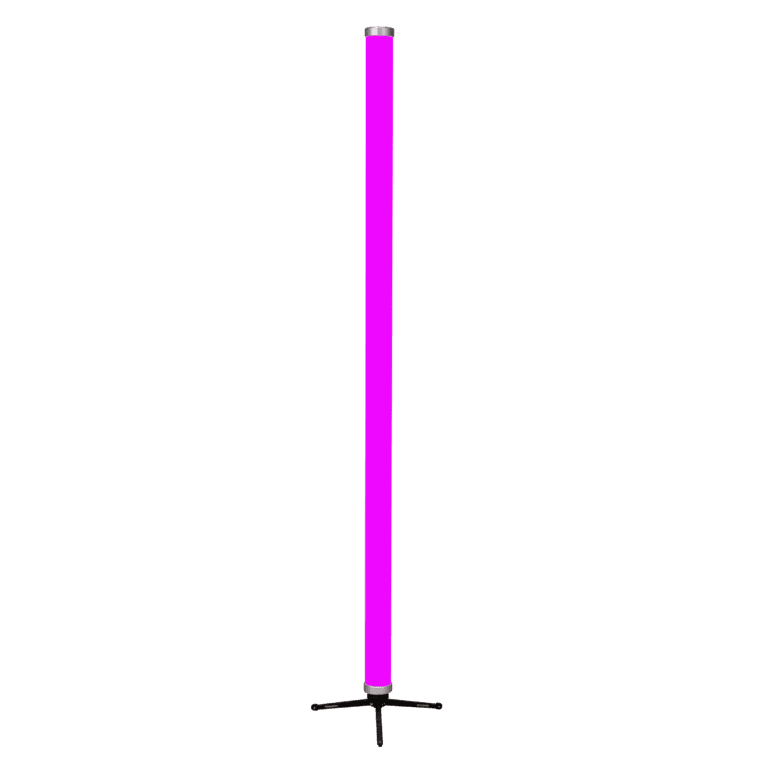

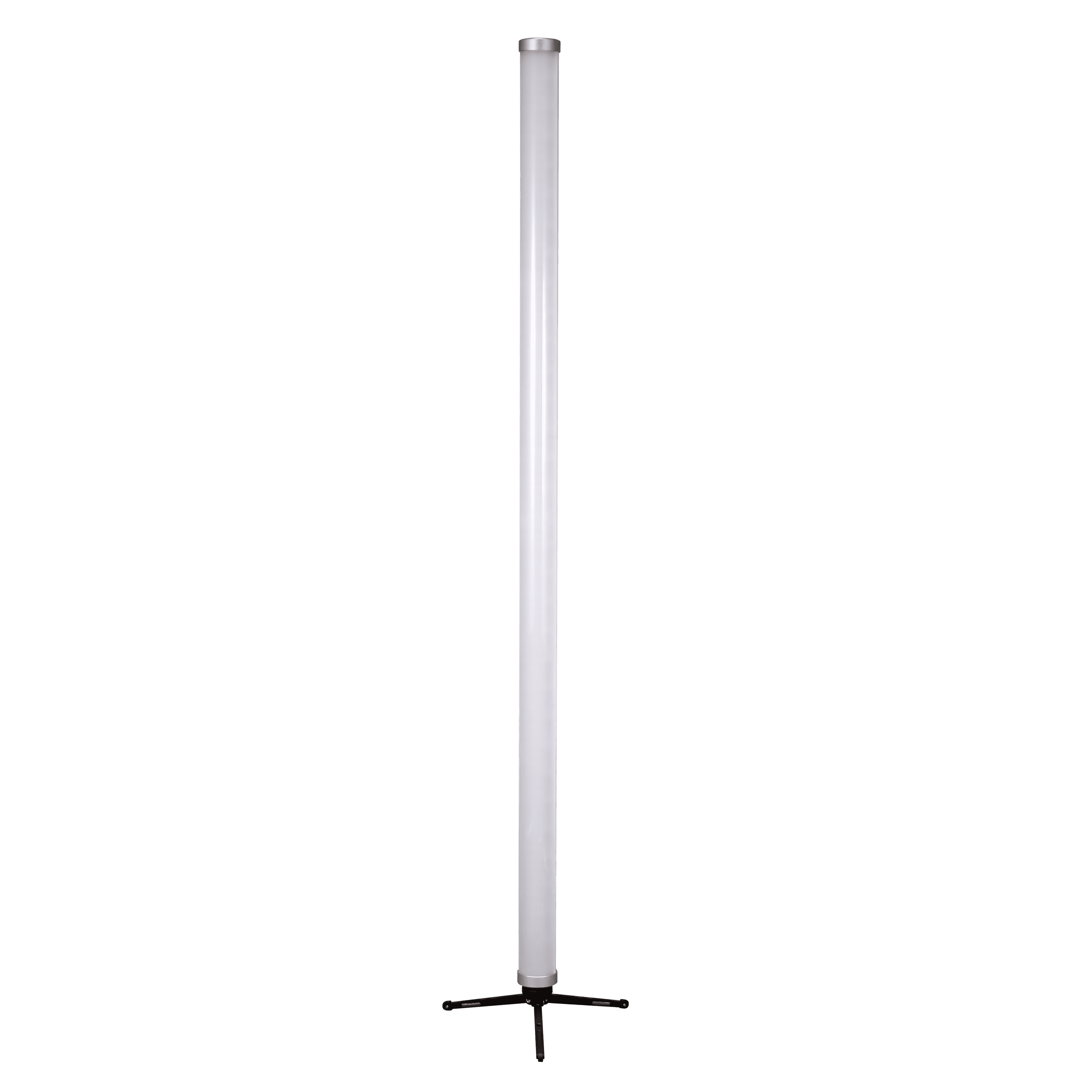

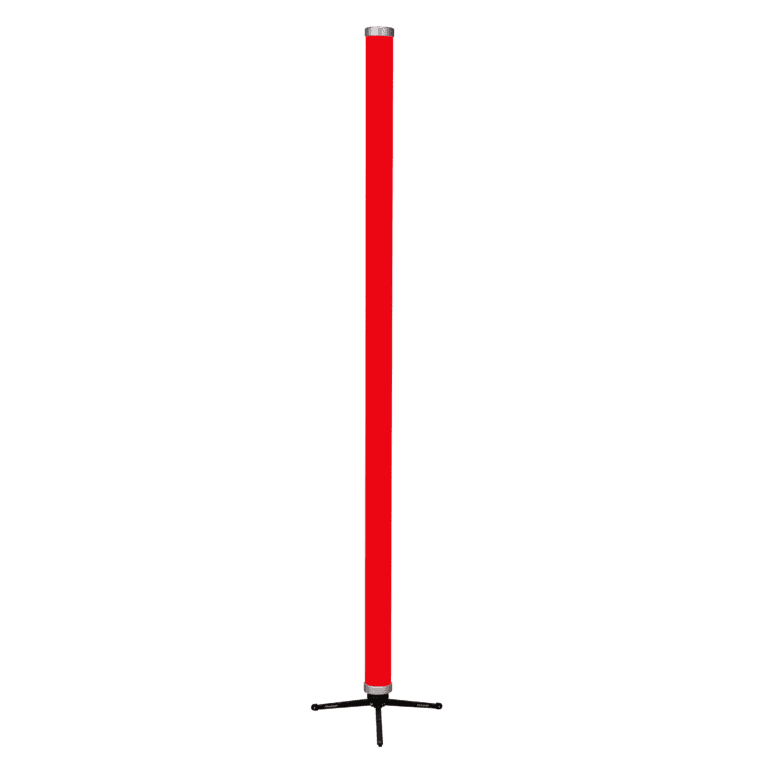

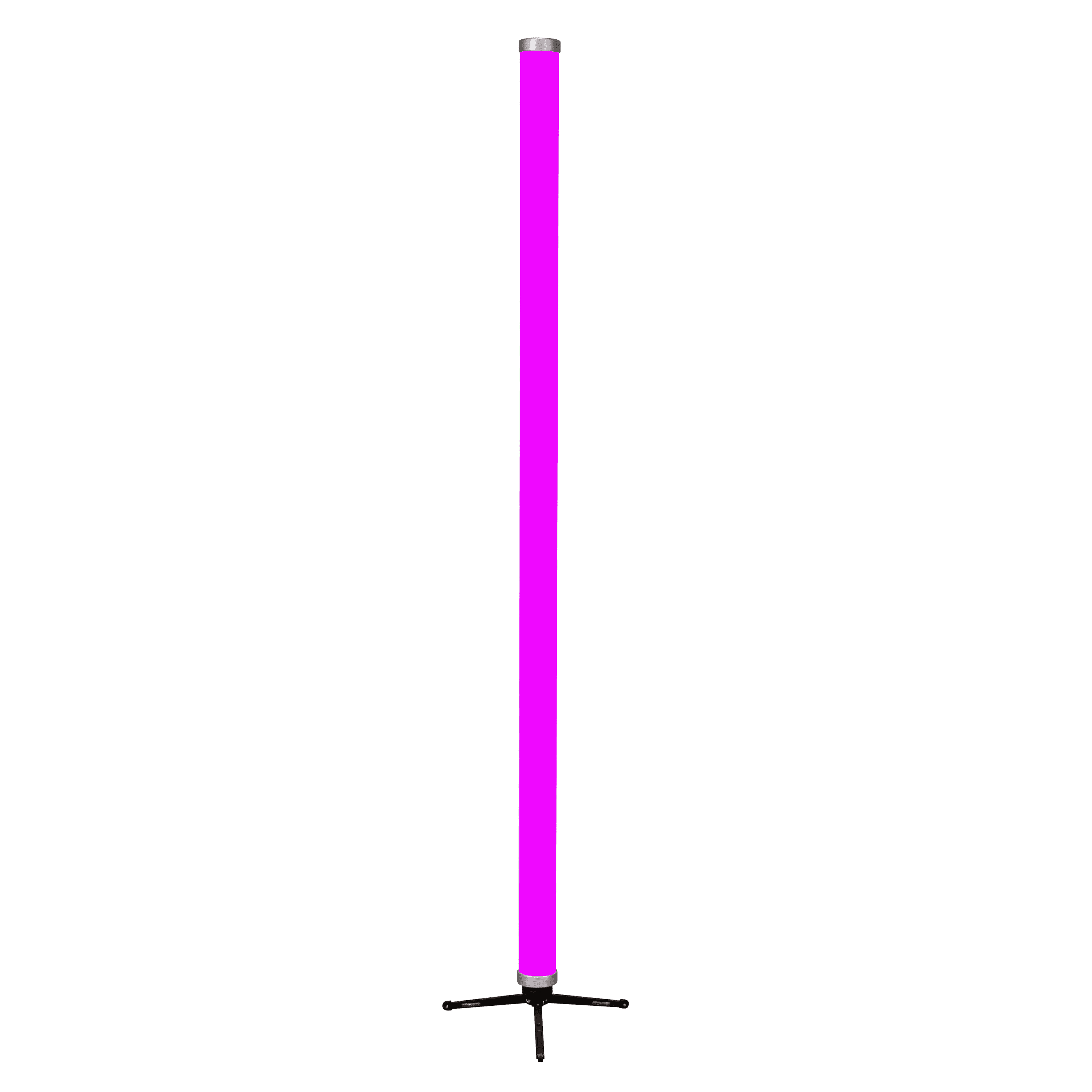

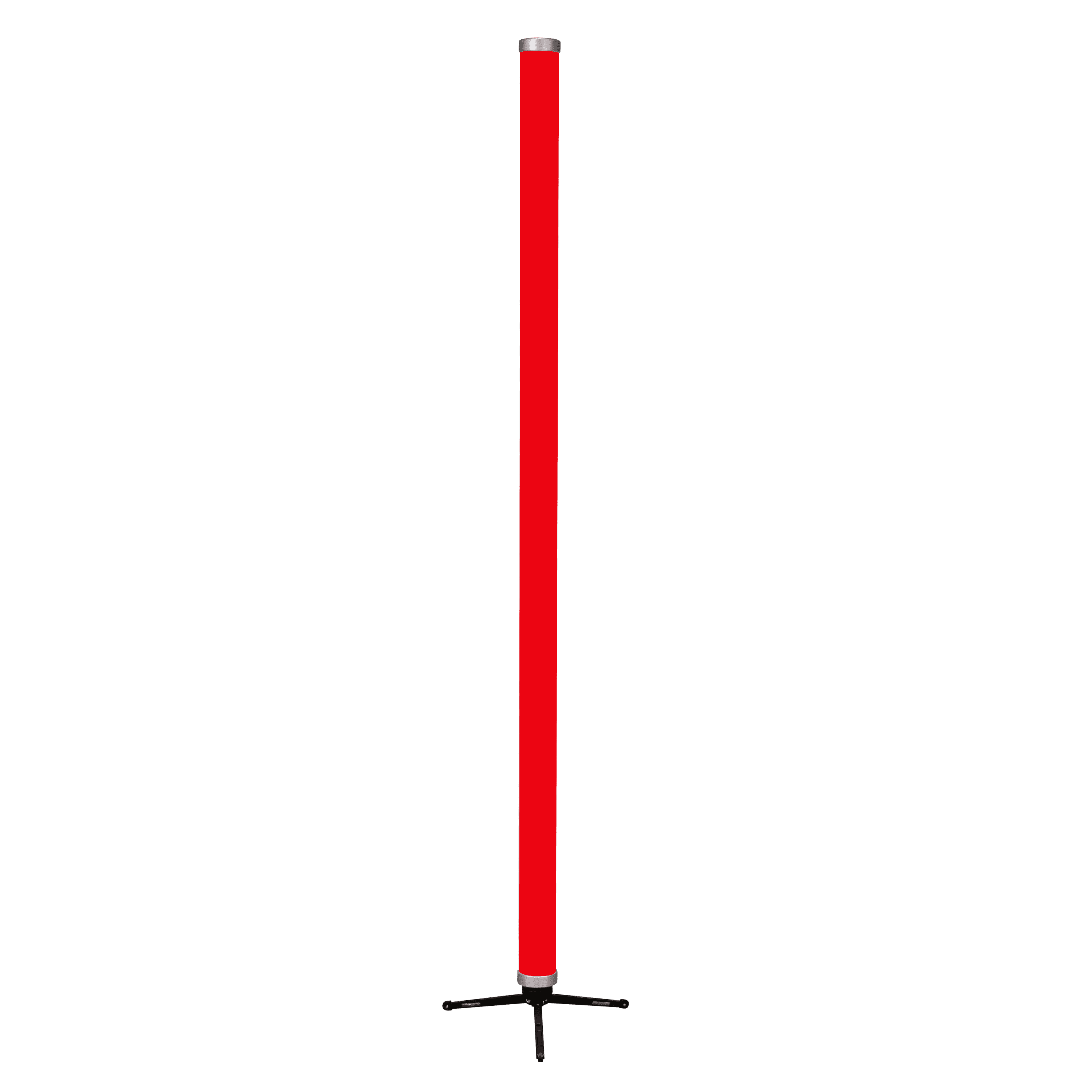

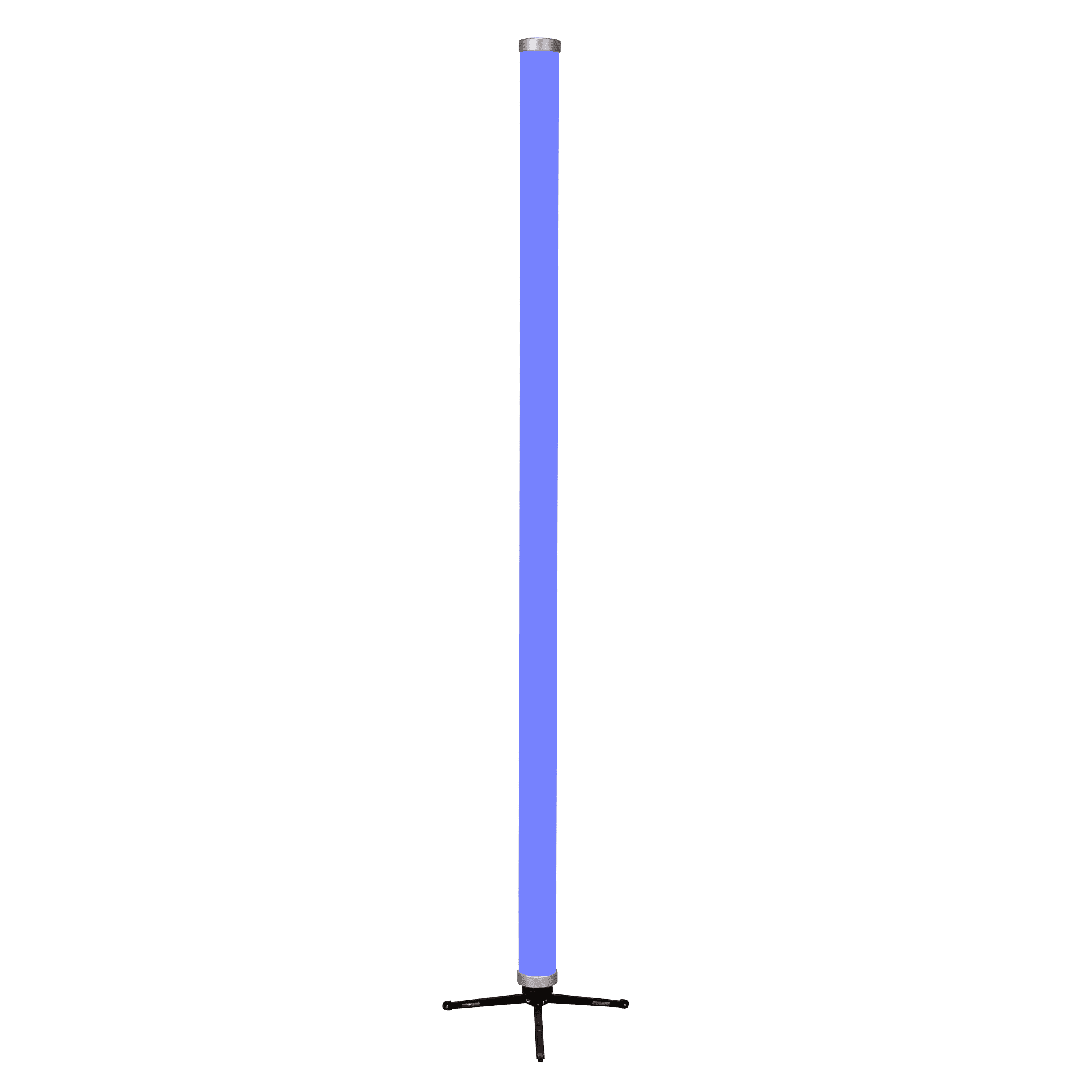

Electro T5 High CRI RGBW+WW LED Battery Powered Outdoor Tube
Main features:
- Light Source: 100W (192 x 0.5W) RGBW+WW LEDs Tube
- Max 15 Hour Battery Life / 30 Hour Battery Saver Mode
- 5 Hour Charging Time
- IP65 Outdoor Rated
- CTO: 2500-10000K
- CRI: ≥ 95, CQS: ≥ 95, TLCI: ≥ 95, Refresh Rate: 20KHz
- Beam Angle: 180°
- 32 Individual Pixel Control
- 49 Preset Color Programs
- 4 Advanced Sound Active Modes w/ 49 Color Options
- 68 Auto / Fade Built-In Programs
- Personalities (9 Modes): CCT-4CH; HSI-4CH; CCT/HSI-6CH; 16-Bit-13CH; RGBCW+S-7CH; Macro-12CH; Pix8-40CH; Pix16-80CH; Pix32-160CH
- Protocol: DMX512, Wireless DMX, Wifi, IR Remote

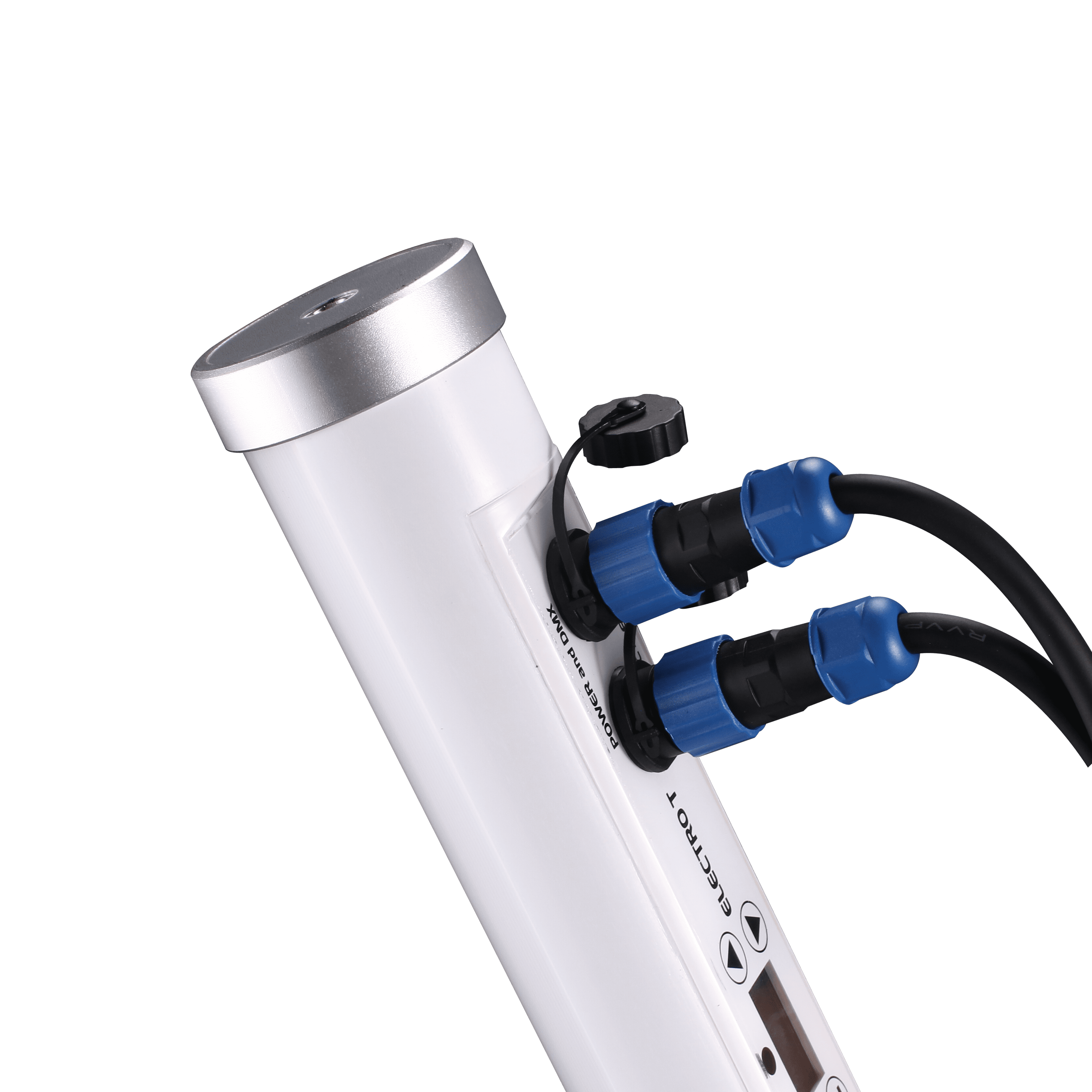

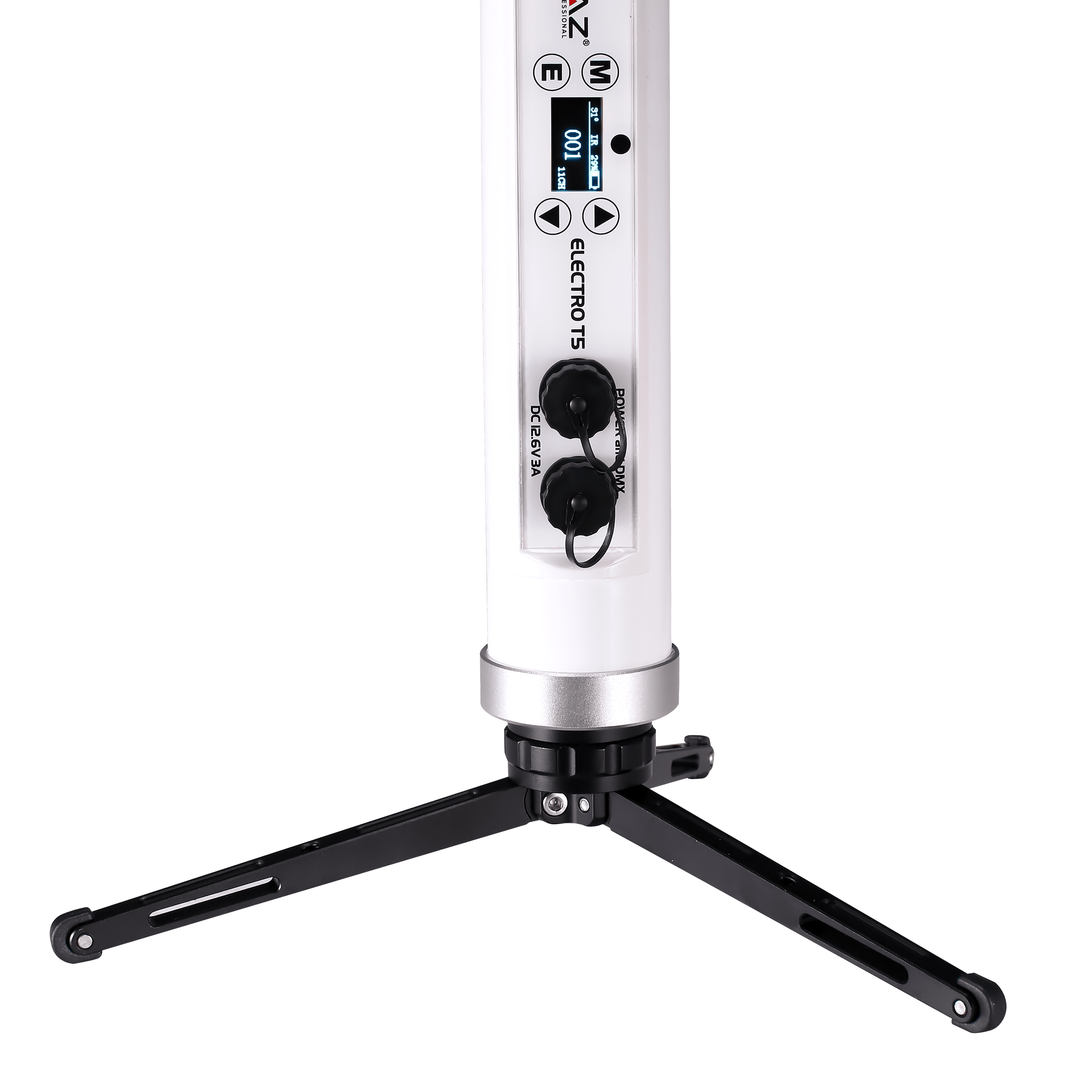

- Power Connection: 5-Pin Socket
- Includes: Tripod Stand, 2 x Eyebolts, 1 x Tube Extender T-Screw, 2 x 5-Pin DMX Cables, AC Charger, IR Remote, 2 Spare Connection Caps, QSG, Manual
- CE, FCC, RoHs Certified
Product Description
The JMAZ Professional Electro T5 is a high-performance RGBW+WW LED tube designed for precision color rendering and professional-grade output. With 100W of power from 192 dual-chip 0.5W LEDs, this fixture delivers superior output with a CRI, CQS, and TLCI of ≥95, plus a flicker-free 20KHz refresh rate—ideal for film, broadcast, and high-end production. A wide 180° beam angle and 32-pixel control zones provide vibrant, immersive visuals. The adjustable CTO range of 2500K–10000K allows for full-spectrum white tuning, while 49 preset color programs and 68 built-in auto/fade effects offer versatile creativity. Additional features include 4 advanced sound-active modes with 49 color options. The Electro T5 runs up to 15 hours per charge (30 in saver mode) and recharges in just 5 hours. It supports DMX512, wireless DMX, WiFi, and IR remote control, with 9 operation modes including HSI, CCT, 16-bit, and pixel-mapped modes up to 160 channels. IP65-rated for outdoor use, the unit includes a tripod stand, eyebolts, extender screw, DMX cables, charger, IR remote, spare caps, and manual. CE, FCC, and RoHS certified.
Technical specifications
Light Source
- 192 x 0.5W RGBW+WW LEDs
- LED Life Expectancy: 50,000 Hours
Color System
- RGBW+WW Color Mixing 8/16 Bit
- CTO: 2500K to 10000K
Optics
- Beam Angle: 180°
Dynamic Effect
- Individual Dynamic Chase, Fade, Static and Sound Active Modes
- Max 15 Hour Batery Life / 30 Hour In Battery Saving Mode
- Charging Time: 5 Hours
- Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
- 49 Preset Color Programs
- 4 Advanced Sound Active Mode with 49 Color Options
- 68 Auto / Fade Built-In Programs
Control
- Protocol: DMX512, Wireless DMX, Wi-Fi, IR Remote
- Personalities (9 Modes): CT-4CH; HSI-4CH; CCT/HSI-6CH;
16-Bit-13CH; RCGCW+S-7CH; Macro12CH; Pix8-40CH;
Pix16-80CH; Pix32-160CH - OLED Graphical Display
Electronics
- Linear Dimmer: 0 – 100%
- CRI: ≥ 95
- CQS: ≥ 95
- TLCI: ≥ 95
- Refresh Rate: 20KHz
- Control Pixel: 32 Pixels
- Strobe Shutter: 0-25Hz
- Dimming Modes: 4 (Linear, Exponential, Logarithmic, S-Curve)
Body
- Polycarbonate + Aluminium
Physical
- IP Rating: 65
- Cooling: Fanless
Electrical
- Input Voltage: 100 – 240V AC, 50/60Hz
- Power Consumption: 50W
- PWM: 1.5KHz
- Battery Voltage: 12.6V / 18Ah
- Battery Capacity: 21,700mAH, 273.4 Wh/hour
- Charger: 12.6V, 2A
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
- Certification /Qualifications
CE, FCC, RoHS - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
- 1 x Tripod Stand
- 2x Eyebolts
- 1 x Tube Extender Screw
- 2 x 5-Pin DMX Cables
- 1 x AC Charger
- 1x IR Remote
- 2 x Spare Connection Caps
- 1 x QSG
- 1 x Manual
Item Dimensions & Weight
- Dimensions: 46.9″ x 2.1″ x 2.1″
- Weight: 3.86lbs
