Electro Panel W18
SKU:
JP2007

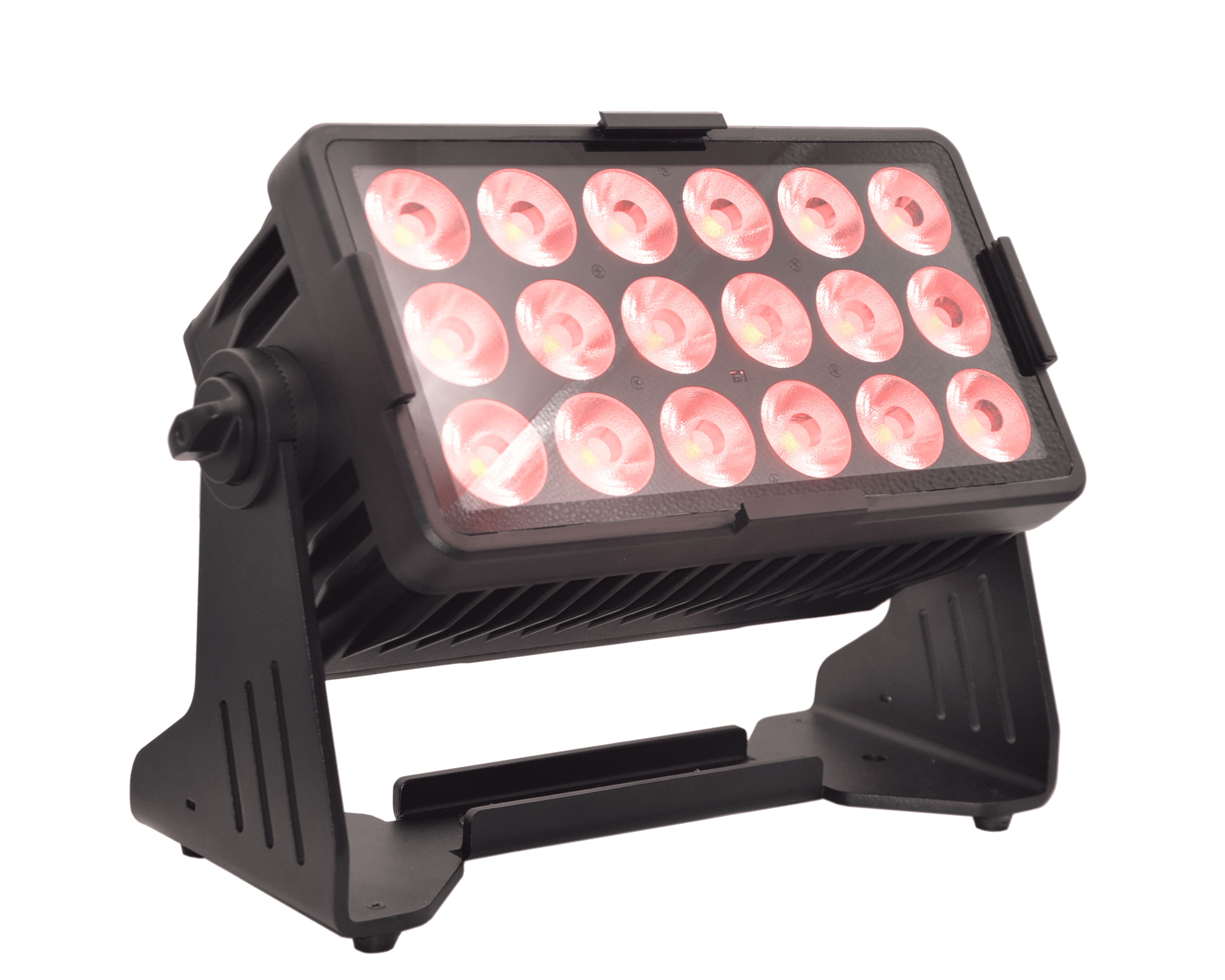

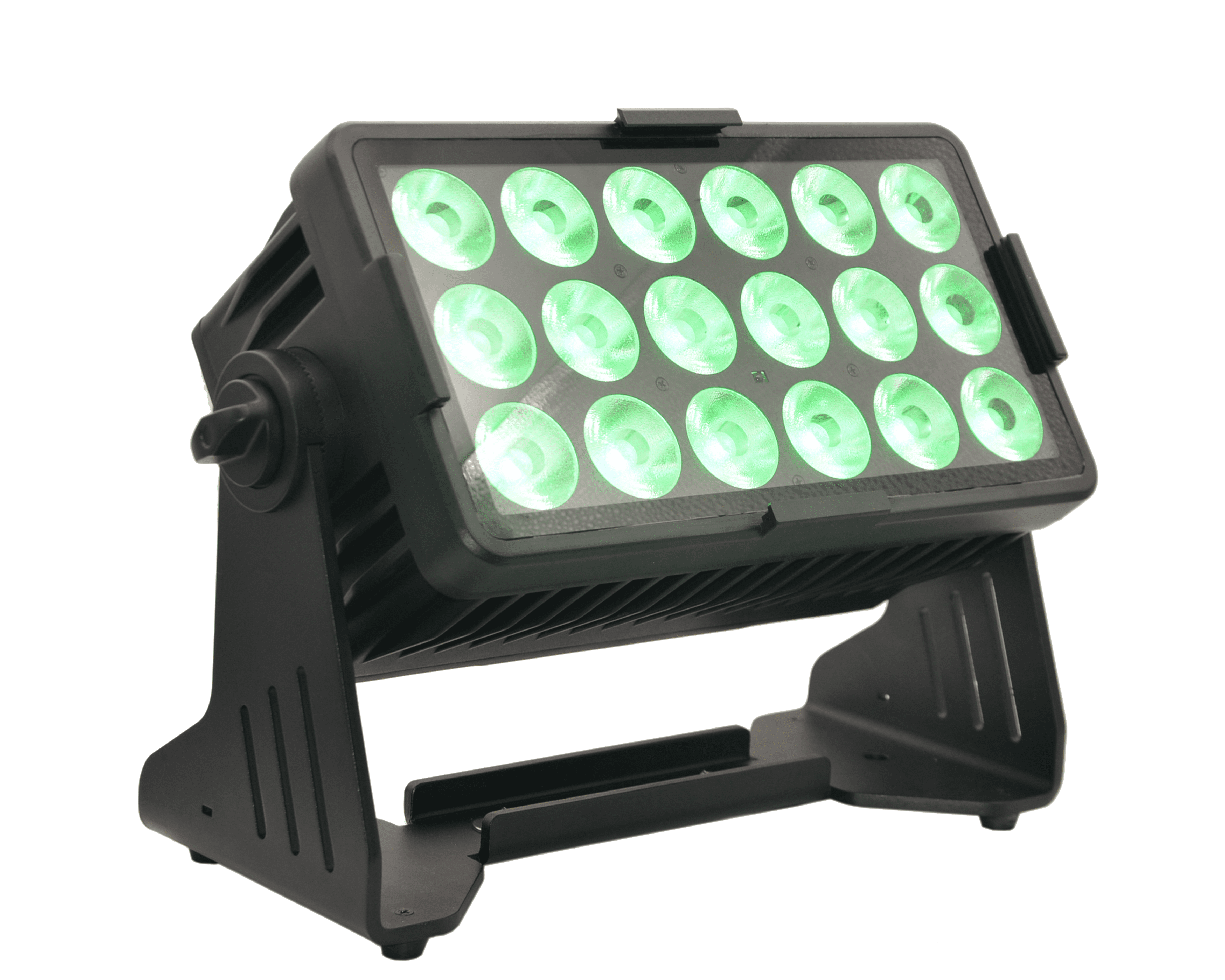

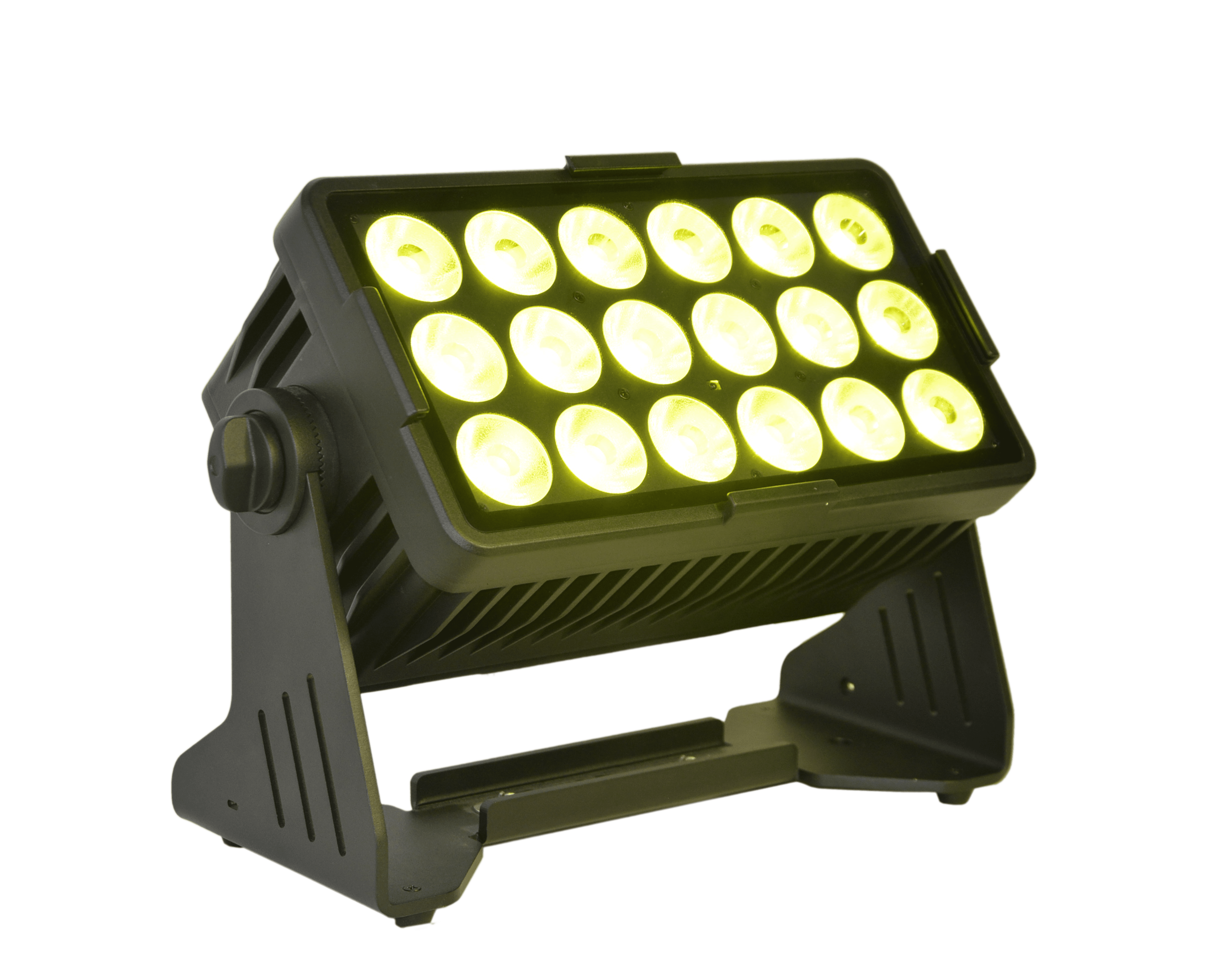

Electro Panel W18 RGB+LIME LED Battery Powered Outdoor Panel
Main features:
- Light Source: (18) 12W RGB+LIME LEDs
- IP65 Outdoor Rated
- Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 2.5 Hours
- CCT: 2300K – 8500K
- 73 Preset Color Programs
- 72 Auto / Fade Built In Programs
- 20° Beam Angle / 40° Beam Angle w/Diffuser Included
- Protocols: DMX512, Wireless DMX (CRMX by LumenRadio), RDM, IR Remote
- Personalities: 7 Modes: HSV / HSI / 3 / 4 / 6 / 11 / 16
- Power Connection: TRUE1 IN/OUT; Operates and charges simultaneously with built-in battery charger
- Data Connection: 5-Pin DMX IN/OUT; IP65 5-Pin DMX IN/OUT for Wired Data Connection
- Includes: Diffuser, Barndoors, TRUE1 Power Cable, Omega Bracket, IR Remote, QSG, Manual
- CE, FCC, RoHs Certified, UL Listed Battery
Product Description
The JMAZ Professional Electro Panel W18 is a rugged and versatile battery-powered RGB+LIME LED panel designed for professional outdoor lighting. Equipped with 18 high-efficiency 12W RGB+LIME LEDs, it delivers bold, vibrant output with a CCT range of 2300K to 8500K. Rated IP65 for outdoor use, the W18 offers up to 11 hours of battery life—or up to 40 hours in battery saver mode—with a quick 4.5-hour recharge. With 73 preset color programs and 72 auto/fade built-in effects, it provides instant creative control for any environment. A native 20° beam angle ensures focused output, while the included diffuser widens coverage to 40° for softer washes. The fixture supports multiple control protocols, including DMX512, Wireless DMX (CRMX by LumenRadio), RDM, and IR remote, and features 7 personality modes (HSV, HSI, 3–16 channels). TRUE1 IN/OUT power allows for simultaneous operation and charging, and IP65-rated 5-pin DMX ports support secure wired data. Accessories include a diffuser, barndoors, TRUE1 power cable, omega bracket, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified with a UL listed battery for added safety and reliability.
Technical specifications
Light Source
- 216W (18 x 12W) RGBL LEDs
- LED Life Expectancy: 50,000 hrs
Color System
- RGBL Color Mixing 8/16 bit
- CTO: 2300K – 8500K
Optics
- Advanced Optics Beam Angle: 20 Degree

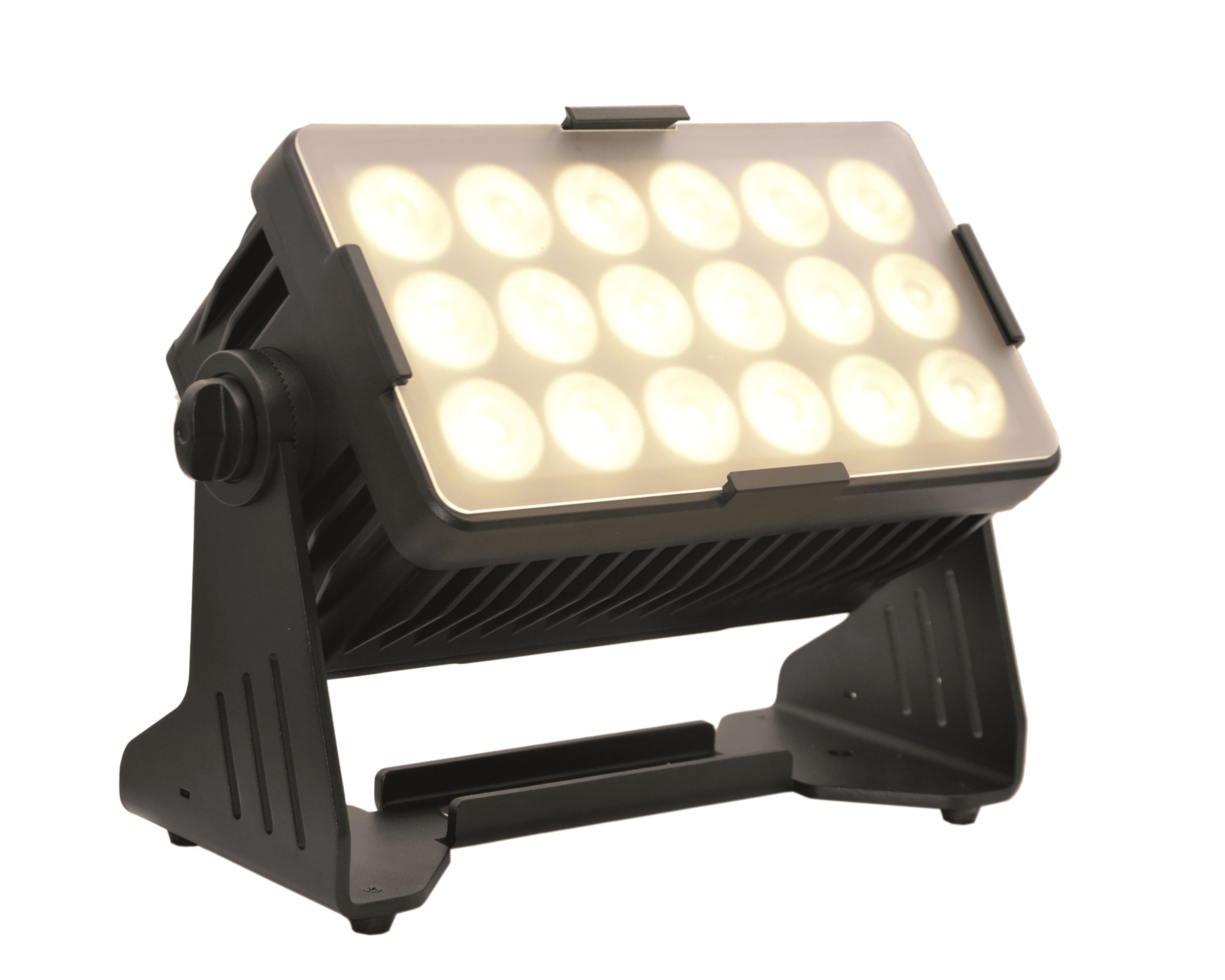

- Diffuser Angle (included): 40 Degree
Dynamic Effect
- Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 2.5 Hours
- Selectable Battery Saving Mode: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
- 73 Preset Color Programs
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature: 2300K – 8500K
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Wireless DMX: CRMX by LumenRadio
- Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
- External Finish: Black
Physical
- IP Rating: 65
- Cooling: Fanless
- Certifications / Qualifications:
RoHS, CE, FCC, cETL (Pending) - Operating Temperature: -10° C to (14°F) to 60° C (140° F)
- Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
- Power Input: Seetronic Powercon IP65 True1
- Power Output: Seetronic Powercon IP65 True1

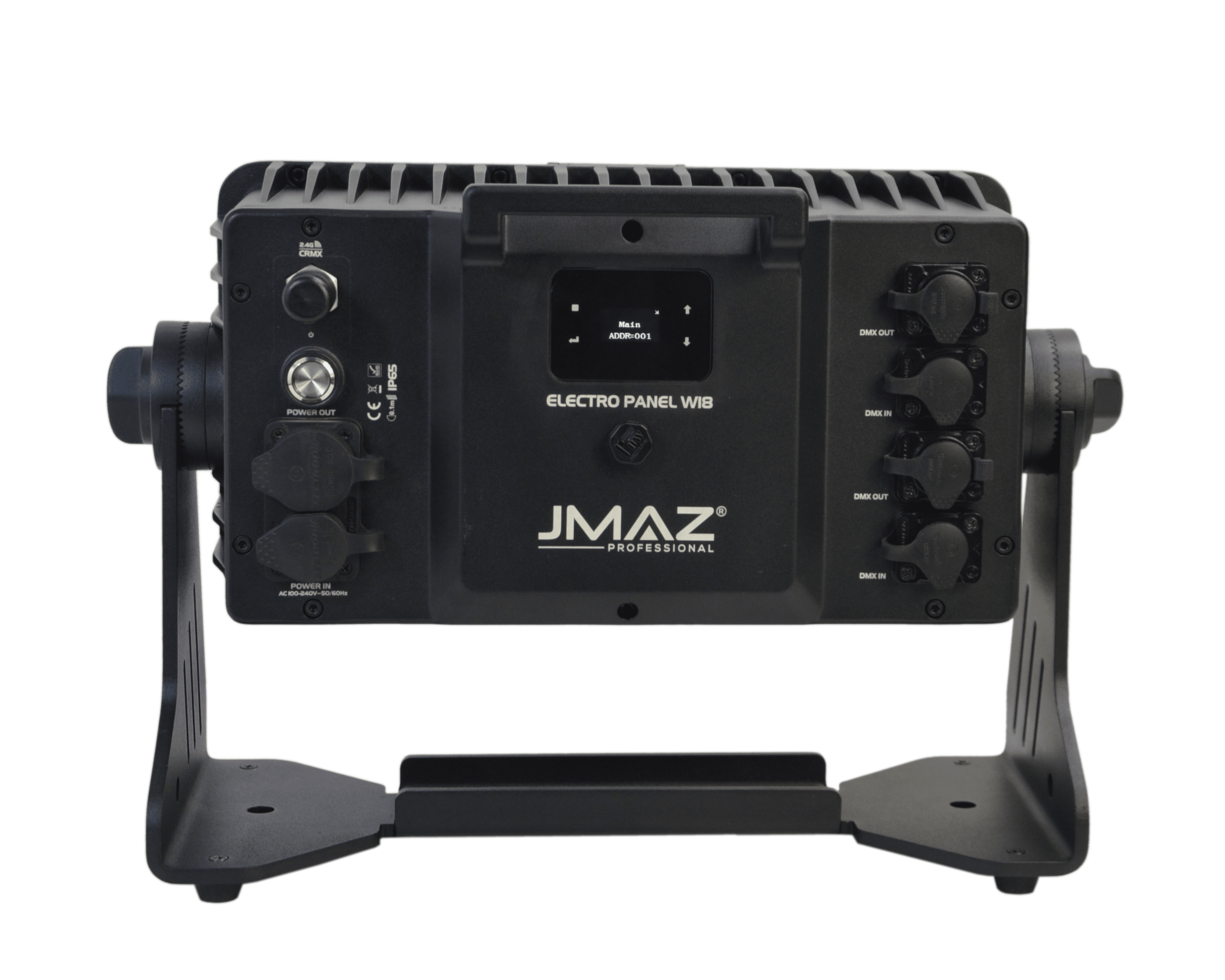

- Data Connectors: Seetronic 5pin XLR IN/OUT
- Cable Length: Power 4.1 feet (1.25 meter)
Electrical
- Input Voltage: 100V – 240V AC, 50/60 Hz
- Power Consumption: 216W
- PWM: 1.5KHz
- Battery Voltage: 29.6V, 3A
- Battery Capacity: 13000mAh, 384.8Wh/hour
- Charger: 29.4V, 5.5A
- Rechargeable Battery Type: Lithium Ion ***UL Listed***
- Power Linking for connecting fixtures in daisy-chain:
Up to 8 units @110V with a 20A circuit
Up to 14 units @208V with a 20A circuit
Up to 17 units @230V with a 20A circuit
Box Content
- 1 x Electro Panel W18
- 1 x Powercon IP65 TRUE1 Power Cable
- 1 x Quick Start Guide
- 1 x User Manual
- 1 x IR Remote

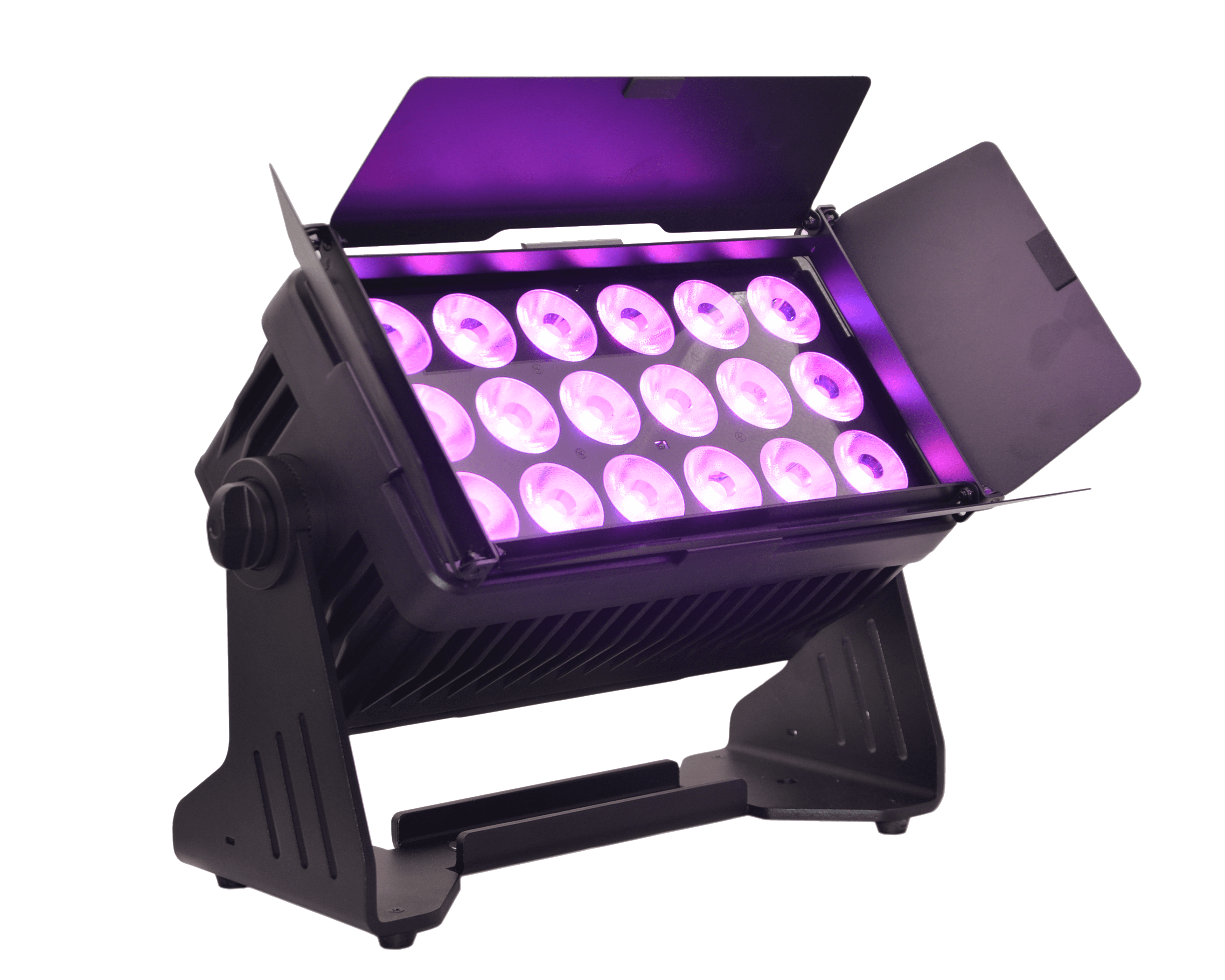

- 1 x Barn Door
- 1 x 40 Degree Diffuser
Item Dimensions & Weight
- Dimensions: 16.2″ x 7.3″ x 10.6″
- Weight: 23.4lbs (10.6Kgs)
