Electro Panel W8
SKU:
JP2006
Electro Panel W8 RGB+LIME LED Battery Outdoor Powered Panel
Main features:
- Light Source: (8) 12W RGB+Lime LED
- IP65 Outdoor Rated
- Max 14 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4.5 Hours
- CCT: 2300K – 8500K
- 73 Preset Color Programs
- 72 Auto / Fade Built In Programs
- 20° Beam Angle / 40° Beam Angle w/Diffuser Included
- Protocols: DMX512, Wireless DMX (CRMX by LumenRadio), RDM, IR Remote
- Personalities: 7 Modes: HSV / HSI / 3 / 4 / 6 / 11 / 16
- Power Connection: TRUE1 IN/OUT; Operates and charges simultaneously with built-in battery charger
- Data Connection: 5-Pin DMX IN/OUT; IP65 5-Pin DMX IN/OUT for Wired Data Connection
- Includes: Diffuser, Barn Doors, TRUE1 Power Cable, IR Remote, QSG, Manual
- CE, FCC, RoHs Certified, UL Listed Battery
Product Description

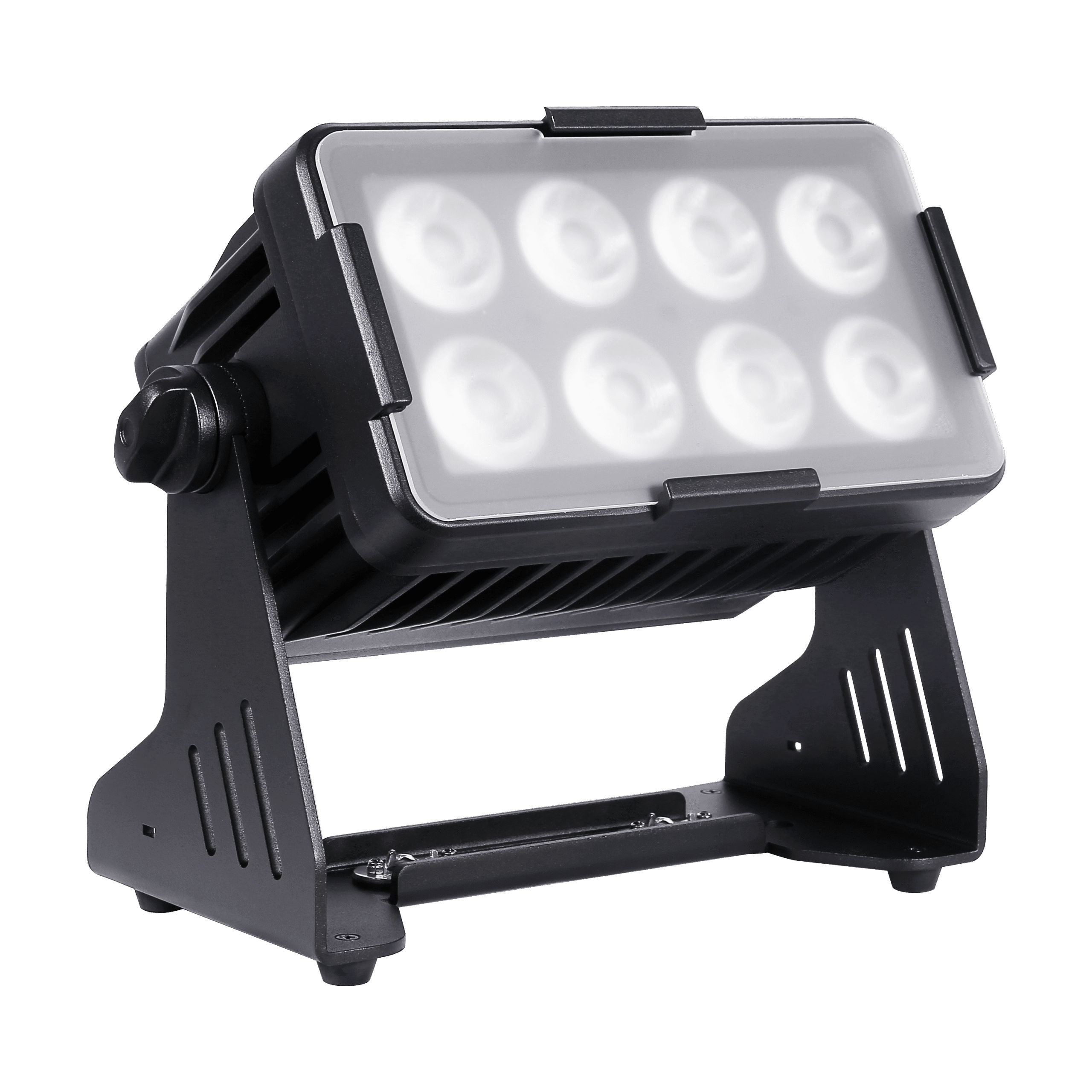

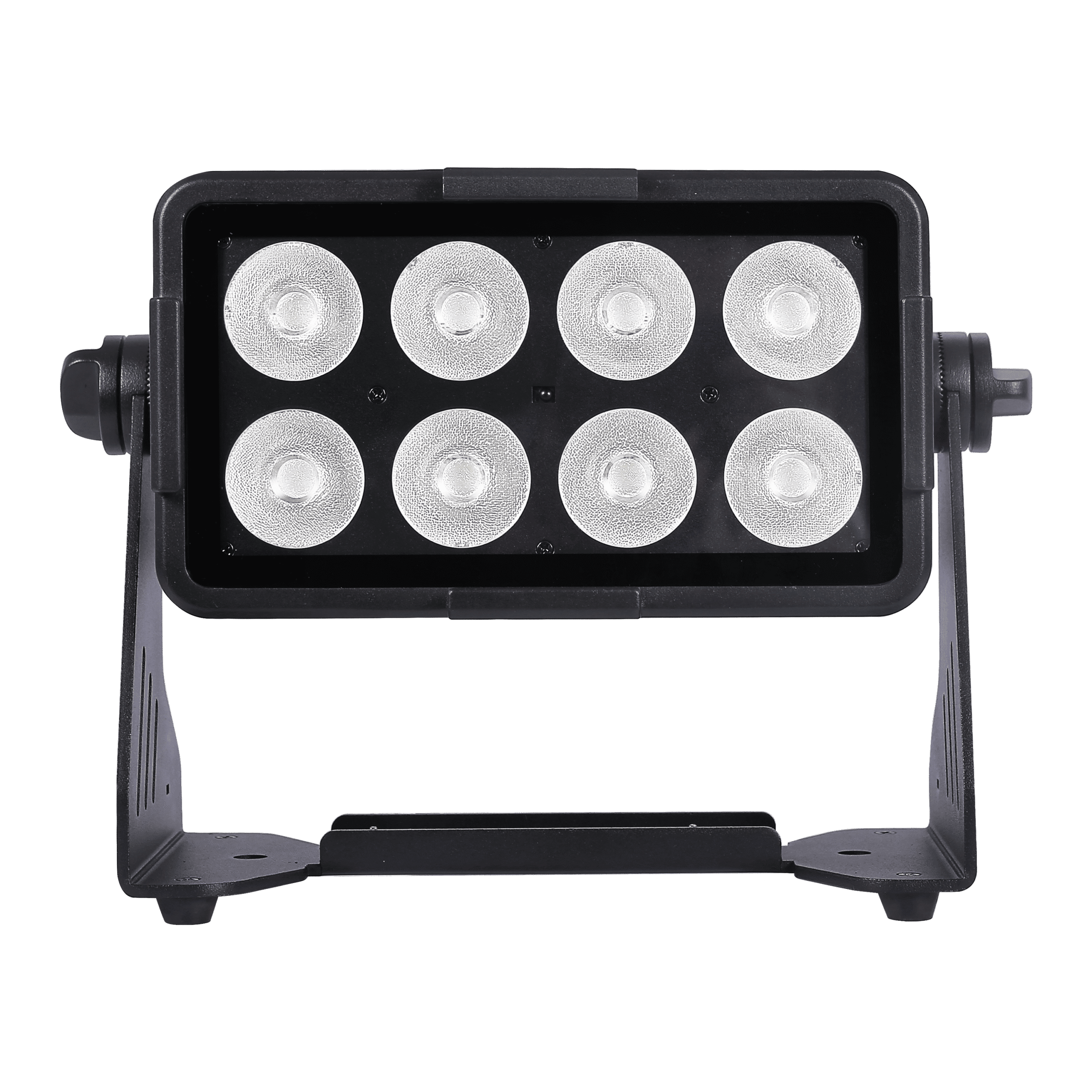

The JMAZ Professional Electro Panel W8 is a compact and powerful outdoor battery-powered LED panel, built for professional applications where flexibility, brightness, and color precision matter. Featuring 8 high-output 12W RGB+LIME LEDs, the W8 delivers vibrant color rendering with a tunable CCT range of 2300K to 8500K. With a native 10° beam angle (expandable to 40° using the included diffuser), it offers tight control or wide coverage as needed. Its IP65 rating ensures durability in outdoor environments, while the internal battery supports up to 14 hours of operation—or up to 40 hours in saver mode—with a fast 4.5-hour recharge. The W8 includes 73 preset color programs and 72 auto/fade effects, all controllable via DMX512, Wireless DMX (CRMX by LumenRadio), RDM, or IR remote. Seven personality modes (HSV, HSI, 3–16 channels) allow for tailored control. The TRUE1 IN/OUT power system enables simultaneous operation and charging via a built-in battery charger. Data connectivity is available via 5-pin DMX and IP65-rated wired ports. Comes complete with diffuser, TRUE1 power cable, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified with a UL listed battery.
Technical specifications
Light Source
- 96W (8 x 12W) RGBL LEDs
- LED Life Expectancy: 50,000 hrs
Color System
- RGBL Color Mixing 8/16 bit
- CTO: 2300K – 8500K
Optics
- Advanced Optics Beam Angle: 20 Degree
- Diffuser Angle (included): 40 Degree
Dynamic Effect
- Max 16 Hour Battery Life / 40 Hour In Battery Saving Mode
- Charging Time: 4.5 Hours
- Selectable Battery Saving Mode: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
- 73 Preset Color Programs
- 72 Auto / Fade Built-In Programs
- Stand Alone Color Mixing
- Electronic Dimmer
- Fading/Jumping Macros Light Change And Jump
- Shutter/Strobe: Electronic
- Strobe Rate: 0-25 Hz
- Preset Color Temperature: 2300K – 8500K
- 4 Favorite Color Customization Triggered via DMX / IR Remote
Control
- Control Protocol: Wireless DMX, IR Remote
- Wireless DMX: CRMX by LumenRadio
- Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes
- OLED Graphical Display
Electronics
- Strobe Shutter: 1-25Hz
- Dimming Modes: 4
Body
- Die-Cast Aluminum and Steel Structure
- External Finish: Black
Physical
- IP Rating: 65
- Cooling: Fanless
- Certifications / Qualifications:
RoHS, CE, FCC, cETL (Pending) - Operating Temperature: -10° C to (14°F) to 60° C (140° F)

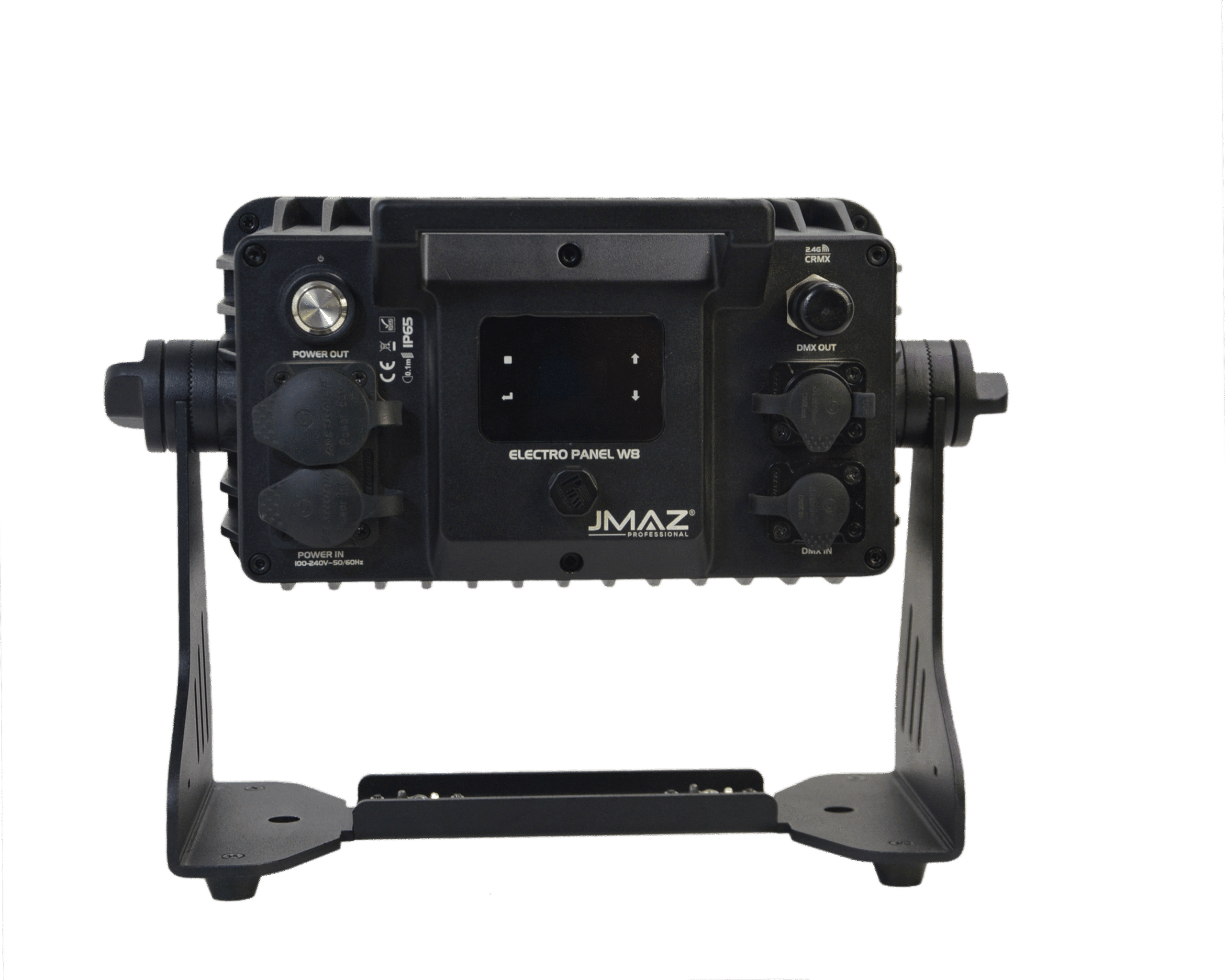

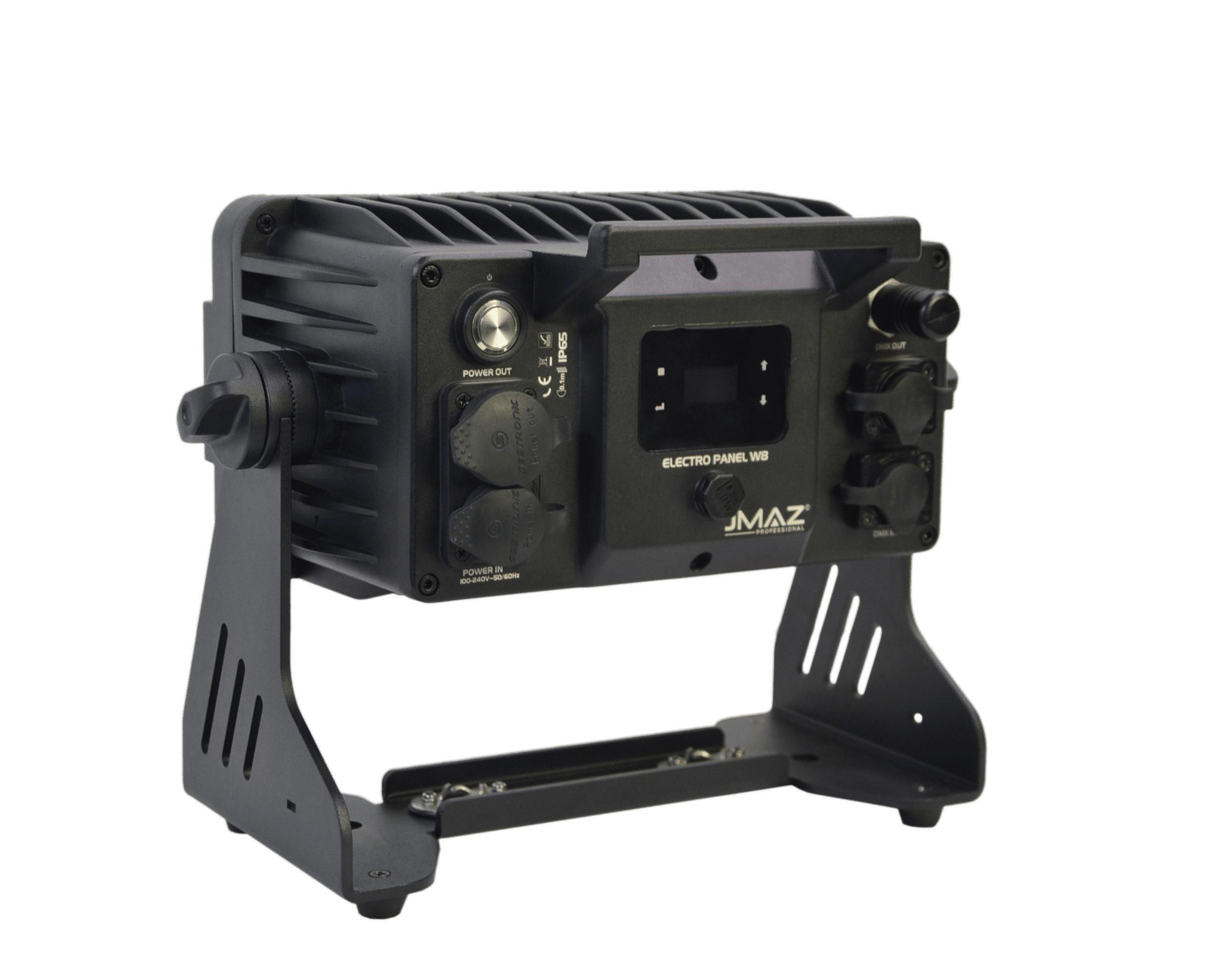

- Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
- Power Input: Seetronic Powercon IP65 True1
- Power Output: Seetronic Powercon IP65 True1
- Data Connectors: Seetronic 5pin XLR IN/OUT
- Cable Length: Power 4.1 feet (1.25 meter)
Electrical
- Input Voltage: 100V –240V AC, 50/60 Hz
- Power Consumption: 120W
- PWM: 1.5KHz
- Battery Voltage: 18.5V
- Battery Capacity: 15600mAh, 288.6Wh
- Charger: 21V, 3.5A
- Rechargeable Battery Type: Lithium Ion***UL Listed***
- Power Linking for connecting fixtures in daisy-chain:
Up to 18 units @110V with a 20A circuit
Up to 30 units @208V with a 20A circuit
Up to 40 units @230V with a 20A circuit

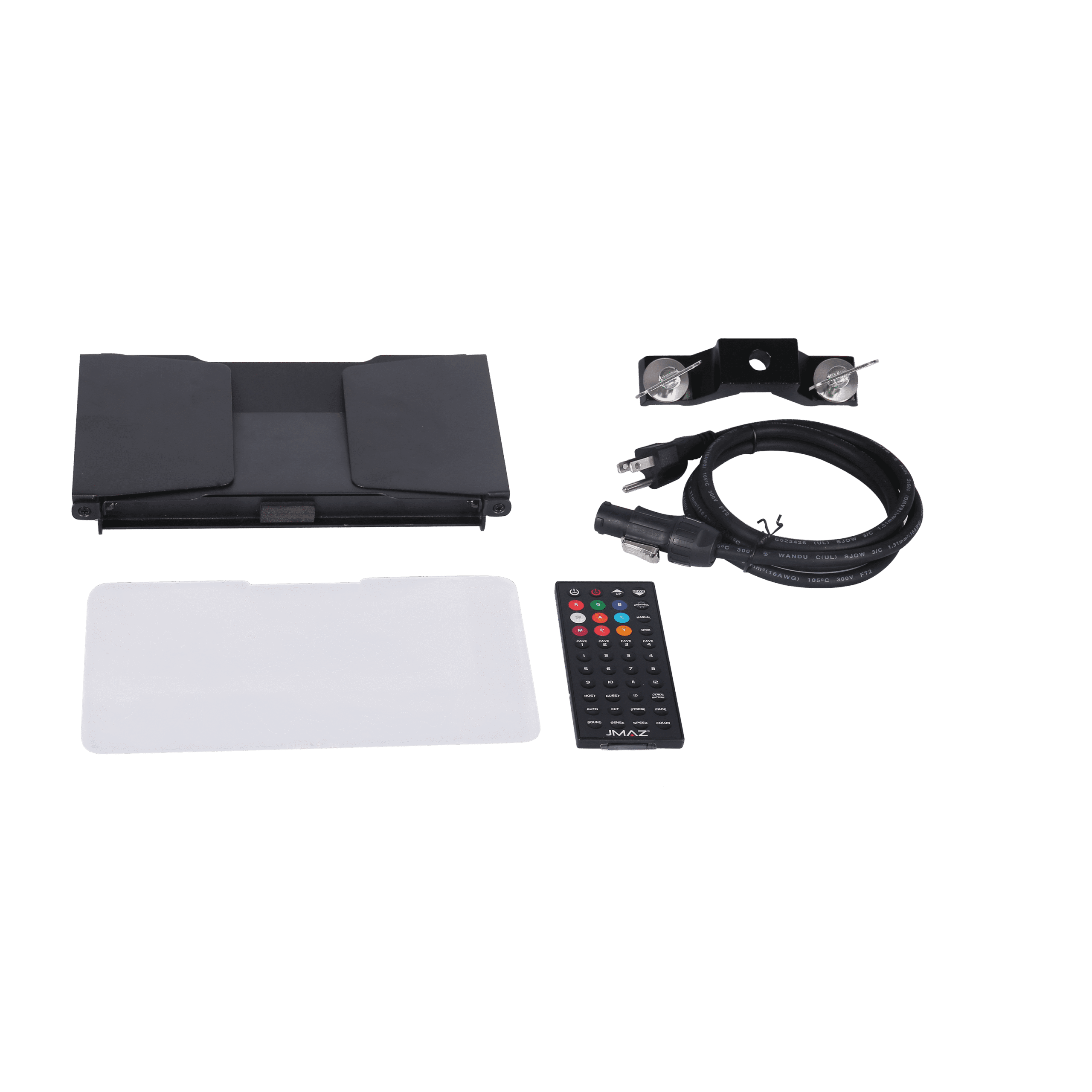

Box Content
- 1 x Electro Panel W8
- 1 x Powercon IP65 TRUE1 Power Cable
- 1x Quick Start Guide
- 1 x User Manual
- 1 x IR Remote
- 1 x Barn Door
- 1 x 40 Degree Diffuser
Item Dimensions & Weight
- Dimensions: 12.56″ x 5.51″ x 9.77″
- Weight: 14.7lbs (6.6Kgs)
