Novastar VX1000 LED Video Panel Processor

SKU:

BB4005

Novastar VX1000 LED Video Panel Processor

Main features:

  • 2-in-1 video controller & processor
  • Drives up to 6.5M pixels with one unit
  • Perfect for ultra wide/high screens
  • LCD menu display
  • Intuitive display interface
  • PC: Ethernet, USB (A/B), Genlock IN + LOOP
  • Loading capacity: 6.5m pixels
  • Layers: 3 x 4Kx1K@60Hz

Technical specifications

Features

  • Loading Capacity: 6.5 million pixels
  • Max Width & Height: Max width: 10240 pixels Max height: 8192 pixels
  • Layers: 3x 4K×1K
  • Input Connectors: 1x 3G-SDI 2x HDMI 1.4 2x DVI (HDMI 1.4) 1x OPT1

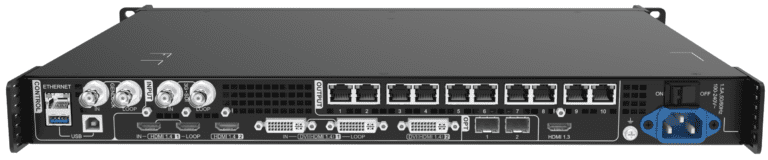

  • Output Connectors: 10x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT
  • Presets: 10
  • Control Connectors: 1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP)

Download

User Manual

File name File size Download
Letter datasheet NovastarVX1000_User_Manual.PDF 500KB Letter datasheet

Tech / Data Sheets

File name File size Download
Letter datasheet NovastarVX1000_Spec_Sheet.PDF 500KB Letter datasheet
