Zona 5L
SKU:
JP4002

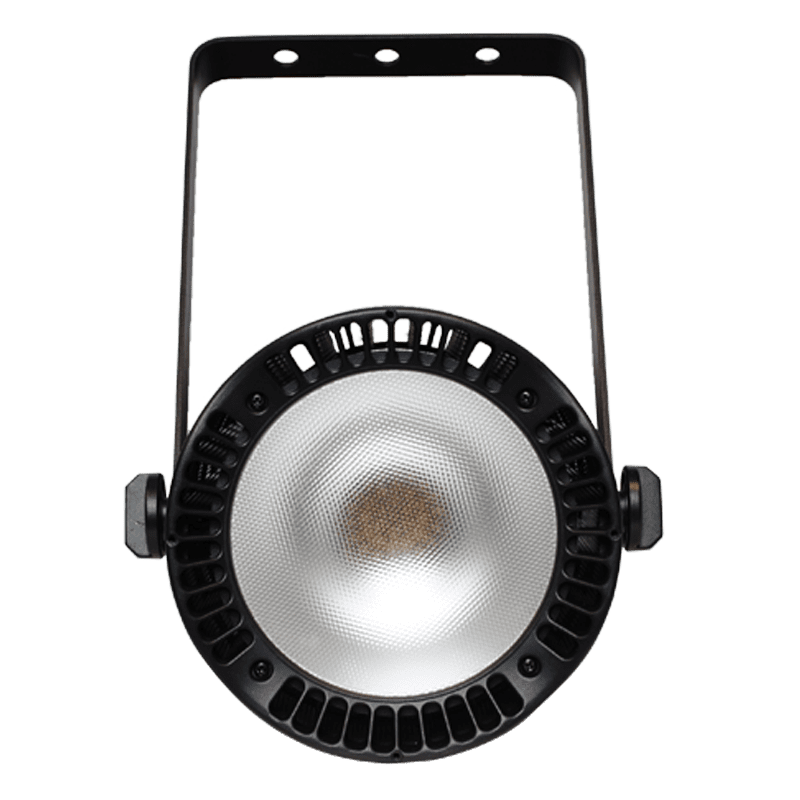

Zona 5L 350W RGBA+L PAR LED House Light
Main features:
- 350W COB RGBA+L LED
- 50,000 Hour Average LED Life
- Ring Effect: 50W (250 x 0.2W) RGB SMD LEDs
- CTO: 2000K – 12000K
- CRI: ≥ 90
- Beam Angle: 55°
- Cooling: Fanless
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
- Personalities: 3 Modes: 8/18/27
- Built-In Automated Programs:
- Protocols: DMX512 5-Pin & Hardwire In/Out, RDM (Remote Device Management)
- Power Connection: TRUE1 In, Hardwire
- Includes: Diffuser, Hanging Yolk, TRUE1 Power Cable, 5-Pin DMX Cable, 1 Safety Cable, Manual
Product Description
The JMAZ Professional Zona 5L is a powerful 350W RGBA+L PAR LED house light designed for premium performance. Featuring a 350W COB LED with a 50,000-hour lifespan, 2000K-12000K CTO, CRI ≥ 90, and a 60° beam angle, it delivers exceptional brightness and color accuracy. The 50W RGB SMD ring effect enhances visual appeal. Fanless cooling, dimming modes, and DMX512/RDM compatibility ensure seamless operation. Includes diffuser, hanging yolk, cables, and manual. CE, cETL, FCC, and Rohs certified.
Technical specifications
Light Source
- 350W COB RGBA+L LED
- Ring Effect: 50W (250 x 0.2W) RGB SMD LEDs
- CTO: 2000K – 12000K
- 50,000 Hour Average LED Life
Color System
- COB RGBA+L LED
Optics
- Beam Angle: 55°
- CRI: ≥ 90
Dynamic Effect
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
- Built-In Automated Programs:
- Cooling: Fanless
Control
- Protocols: DMX512 5-Pin & Hardwire In/Out, RDM (Remote Device Management)
- Personalities: 3 Modes: 8/18/27
Electronics
- Power Connection: TRUE1 In, Hardwire
Physical
- Diffuser
- Hanging Yolk
- TRUE1 Power Cable
- 5-Pin DMX Cable
- 1 Safety Cable
- Manual
Electrical
- CE, cETL, FCC, Rohs Certified
Download
Profiles
| File name | File size | Download | |
|---|---|---|---|
 |
Zona 5L Profiles Folder | 500KB |  |
Photometrics
| File name | File size | Download | |
|---|---|---|---|
 |
Zona_Photometrics_sheet.PDF | 500KB |  |
CAD Drawings
| File name | File size | Download | |
|---|---|---|---|
|
Zona L_CAD_sheet.PDF | 500KB | |
