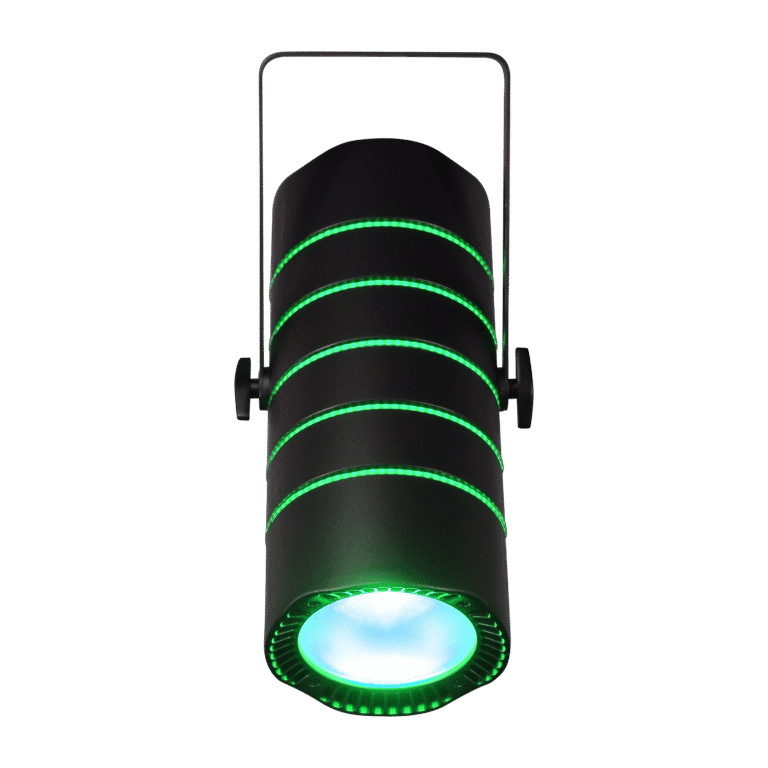

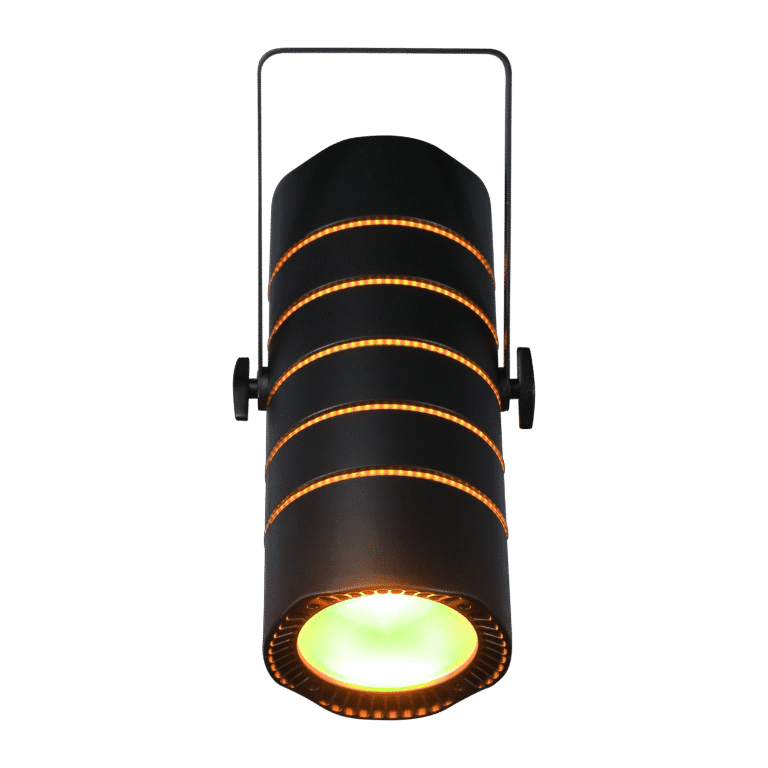

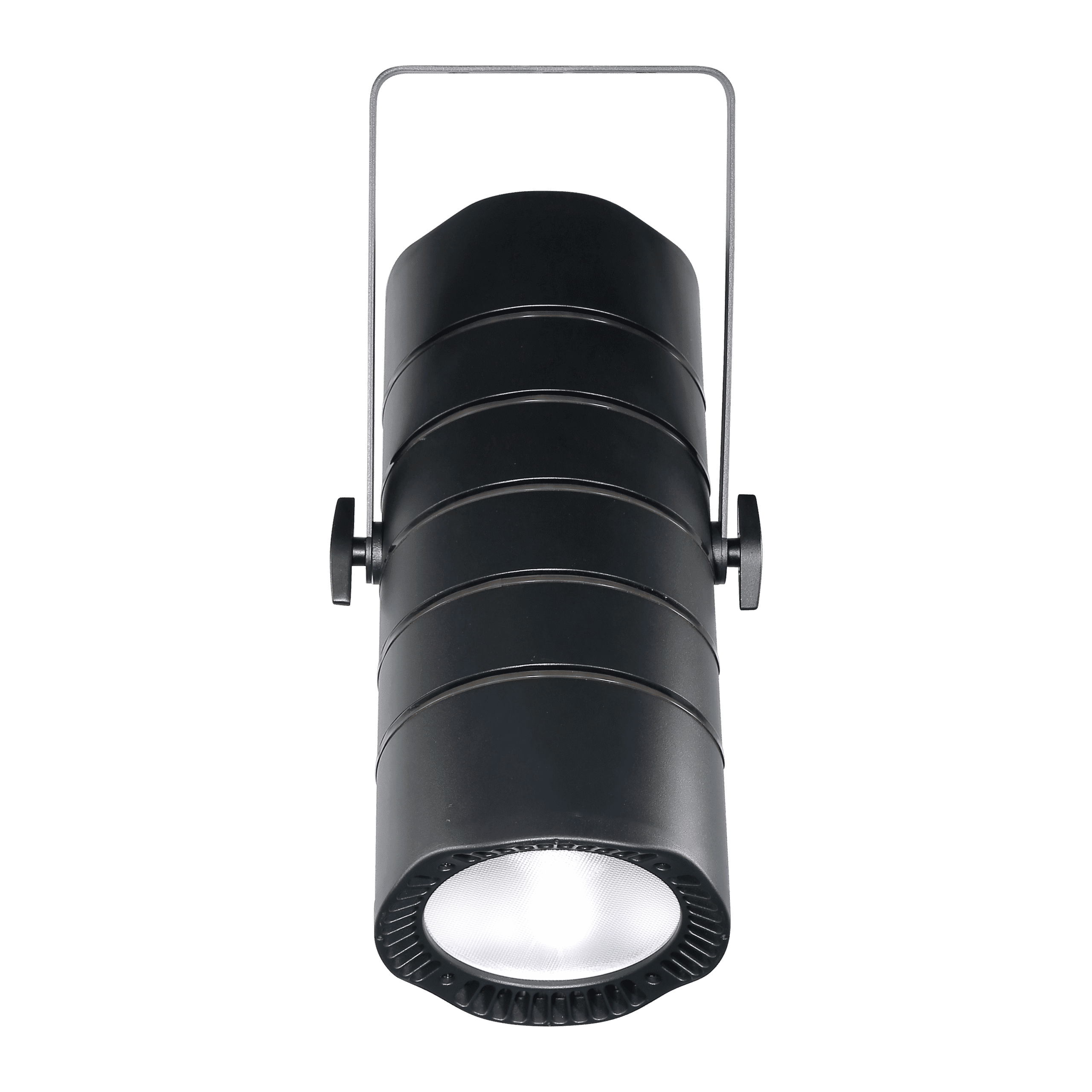

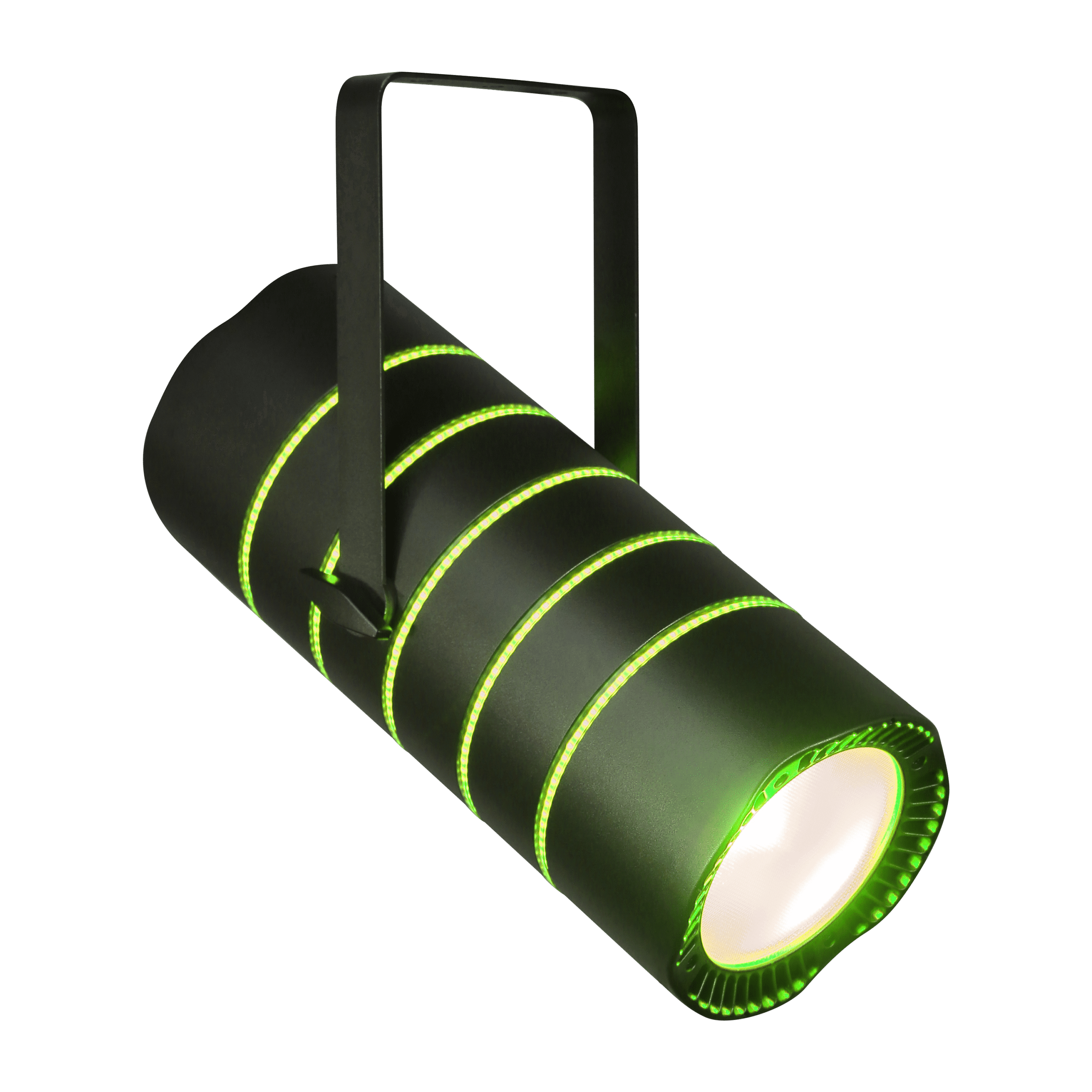

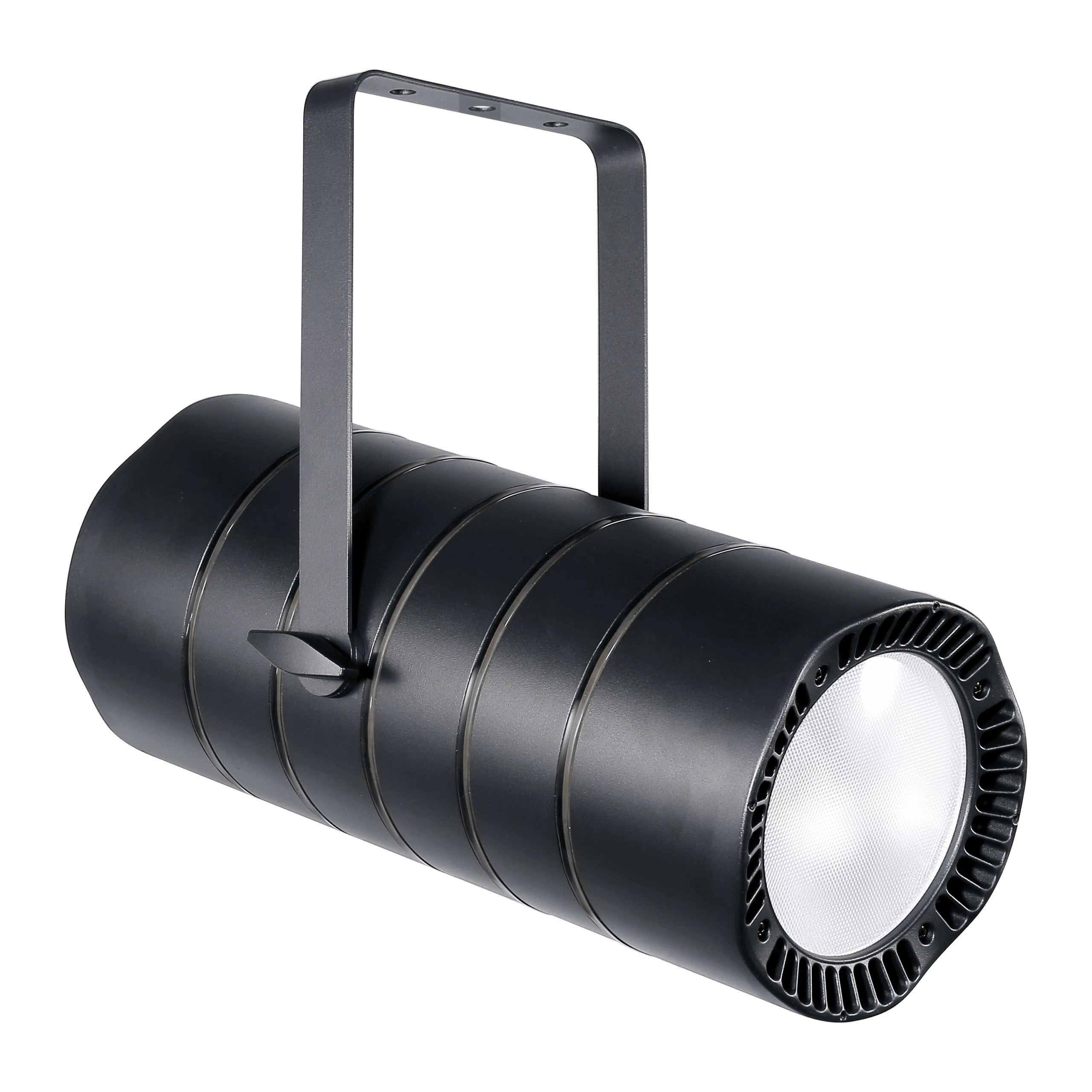

Zona 5L

Technical specifications

Light Source

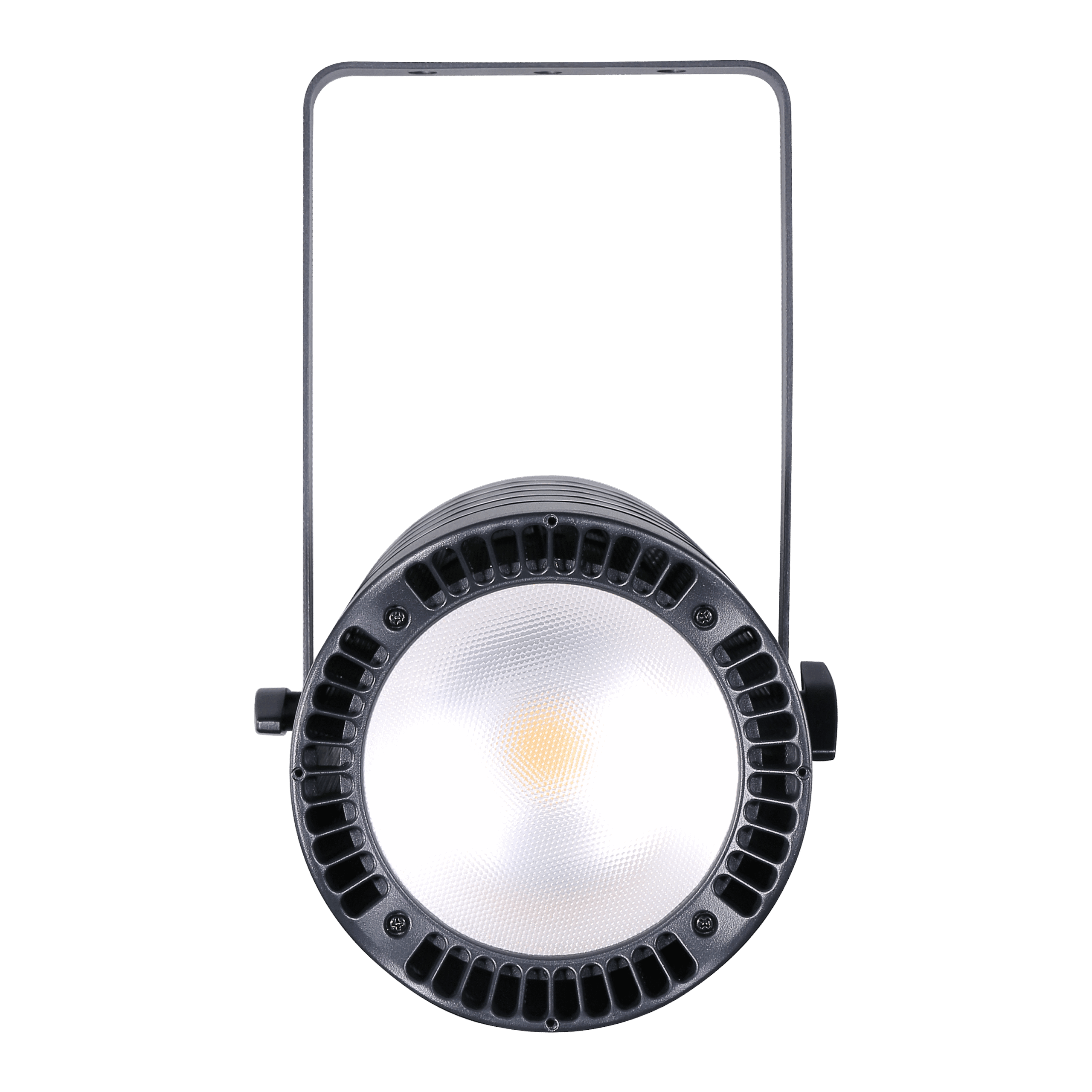

  • 1 x 350W COB RGBA+L LED
  • LED Life Expectancy: 50,000 hrs

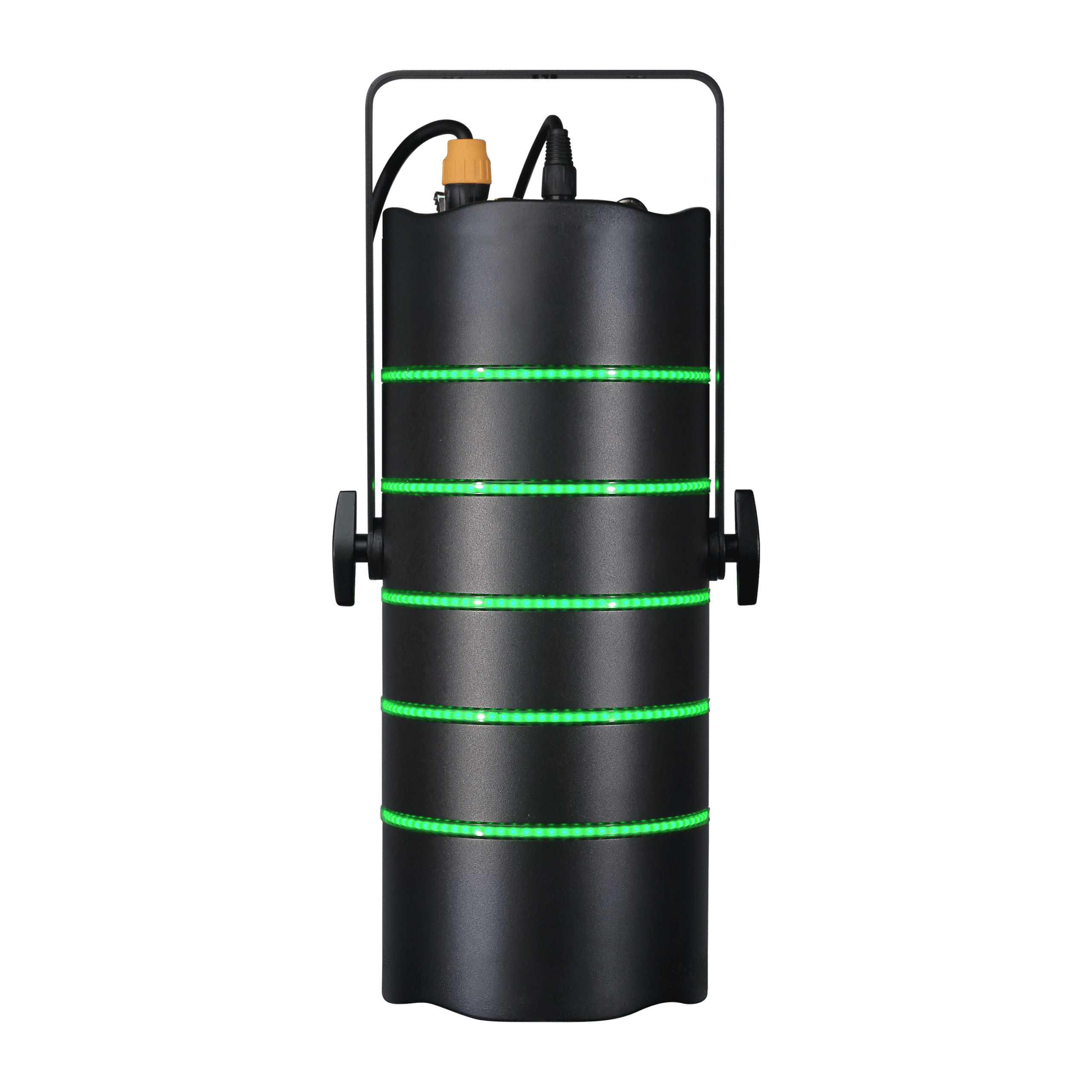

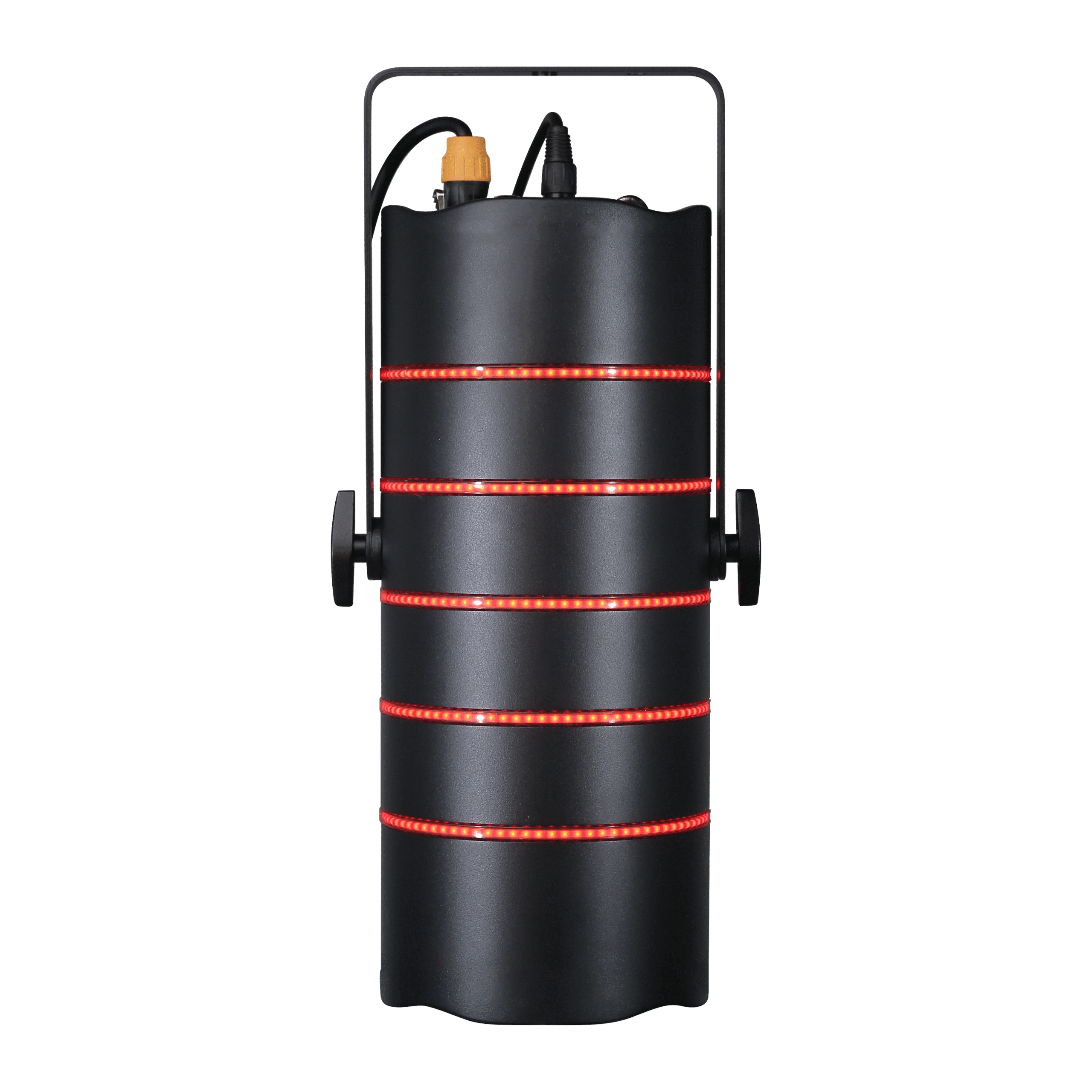

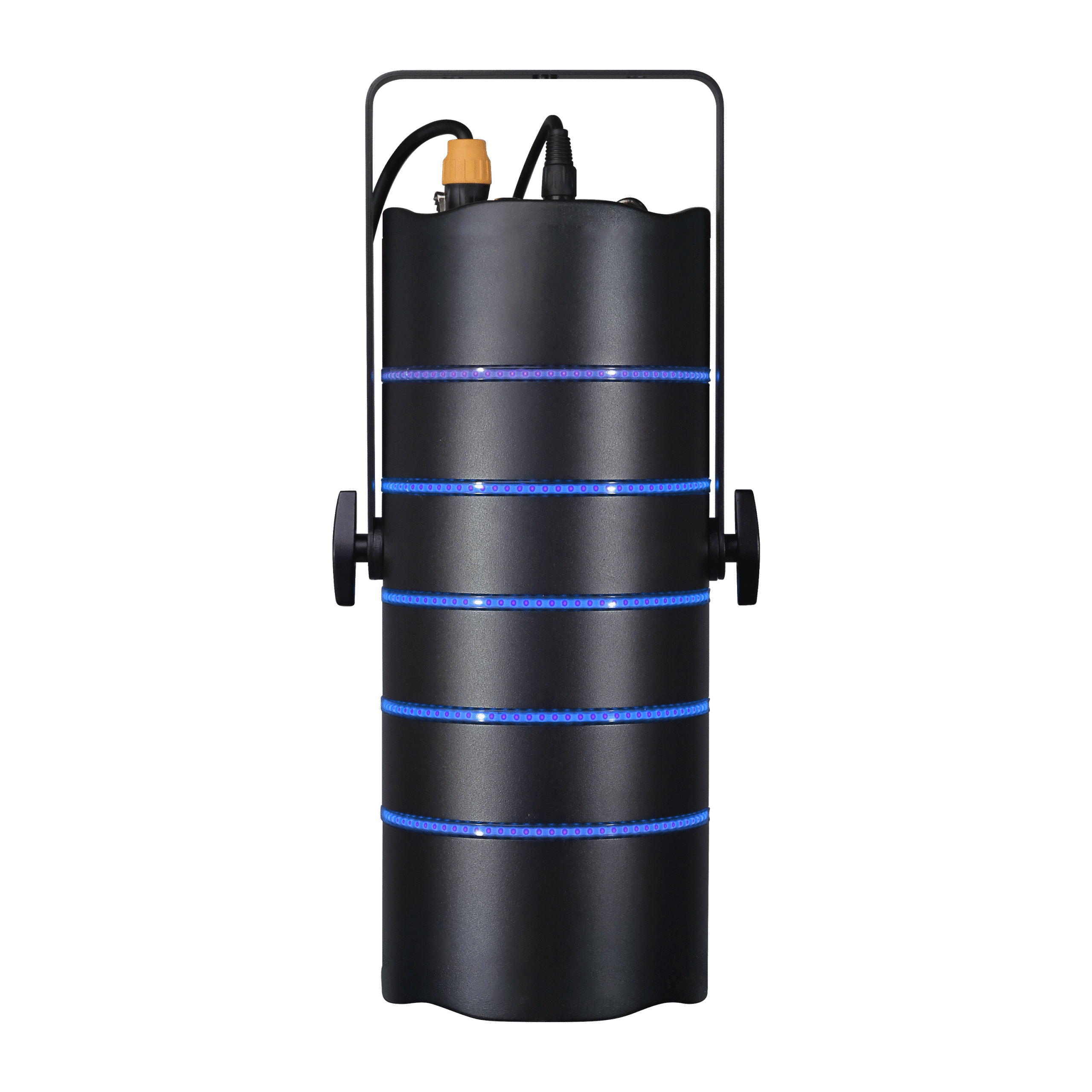

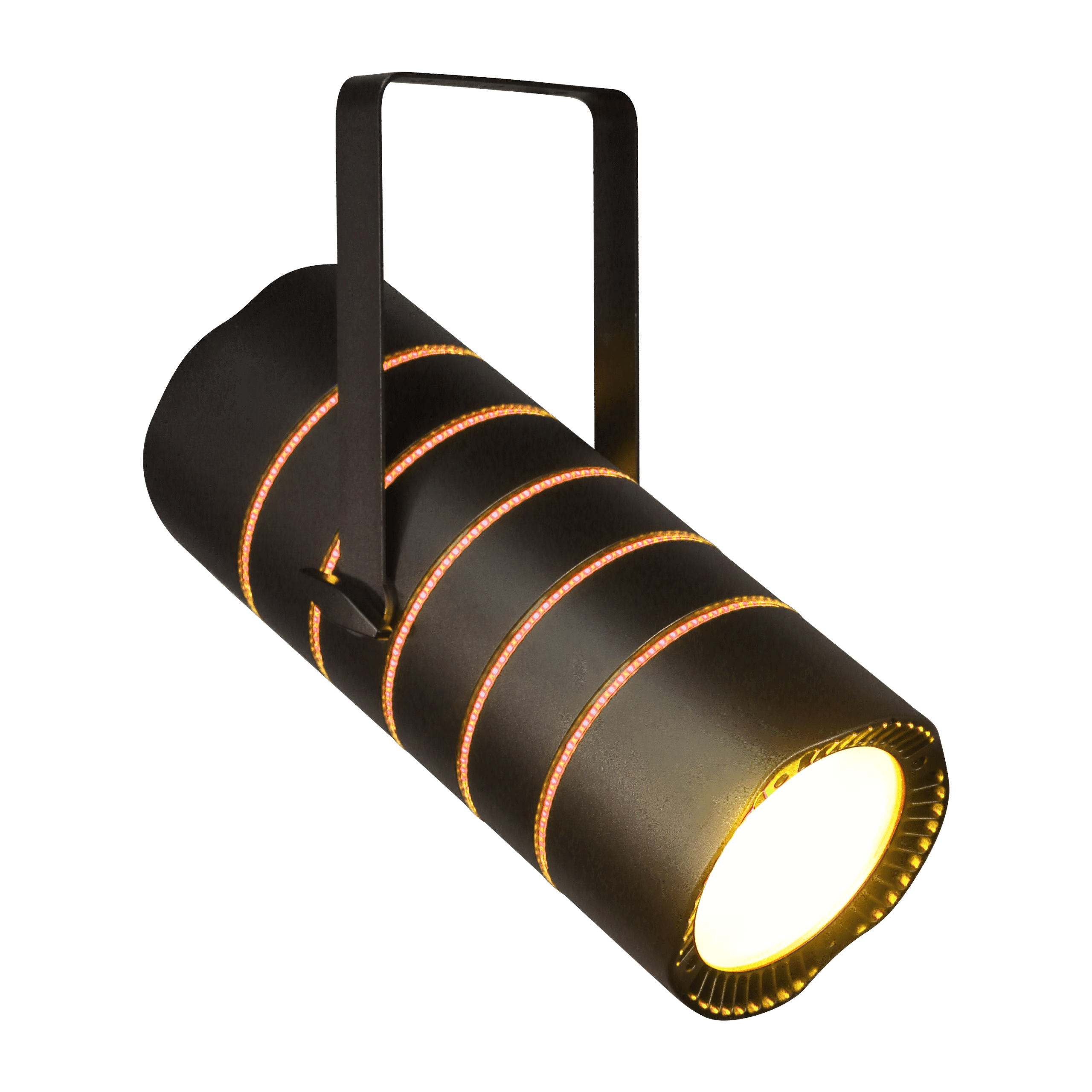

  • Ring Lights :50w (each ring 10wx5) , RGB 3 in 1 led, each ring 50pcs led x5

Color System

  • RGBA+L Color Mixing: 8/16 bit
  • Color Temperature Range: 2000K -12,000k
  • CRI: Equal or greater than 93

Body

  • Die-Cast Aluminum and Steel Structure
  • Exterior Finish: Black

Electronics

  • Linear LED Dimmer: 0-100% Smooth
  • CCT: 2000k – 12000k
  • Strobe Shutter: 1.02hz – 26.5Hz
  • Dimming Modes: 4 Different Ones

Electrical

  • Input Voltage: 100 V – 260 V AC, 50 -60 Hz
  • Power Consumption: 365W
  • Power Linking for connecting fixture in daisy-chain
    • Up to 7 units @110V with a 20A circuit
    • Up to 10 units @208V with a 20A circuit
    • Up to 12 units @230V with a 20A circuit
    • Fuse: F3A, 250V

Certification / Qualifications

  • cETL (Pending), RoHS, CE, FCC
  • IP Rating: IP 20
  • Operating Temperature: 40 ° C ( 104 °F)
  • Minimum Temperature: – 10 ° C ( 14 ° F)
  • Maximum Temperature: 60 ° C ( 140 ° F)

Optics

  • Install Optic: 60 Degree
  • Filter 1 Beam Angle: 35 degree

Dynamic Effect

  • 64 Preset Color Macros
  • Stand Alone Color Mixing: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Dim Mode: 4
  • Built-In Automated Programs: Yes

Control

  • Control Protocol: DMX, RDM
  • Optional Add-On Wireless DMX: Lumen Radio (CRMX) with RDM
  • Personalities: 8/18/33 DMX Channel Modes

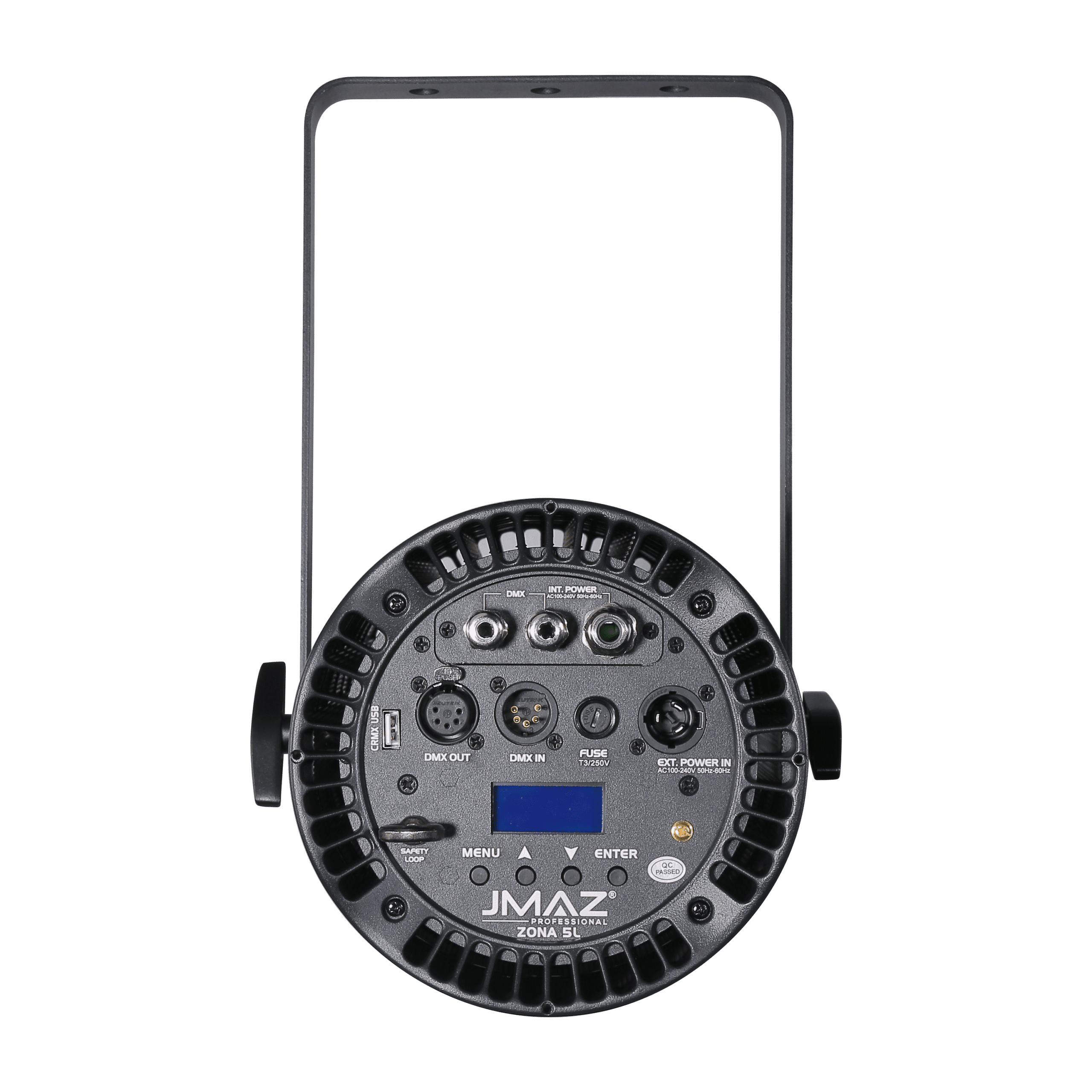

  • Setting and addressing: LCD Graphical Display, RDM ANSI E2.20, Standalone Mode

Physical

  • IP Rating: 20
  • Cooling: Fanless
  • Power Connection: US Edison (UL Listed) plug to Seetronic Powercon IP65 True1
  • Power Input: Seetronic Powercon IP65 True1
  • Power Output: Seetronic Powercon IP65 True1
  • Data Connectors: Seetronic 5pin XLR
  • Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
  • Dimensions: 20” x 9.1 x 7.1
  • Weight: 16.8 lbs

Box Content

  • 1 x Zona HL 5L
  • 1 x Powercon IP65 TRUE1 Power cable
  • 1 x 5 pin DMX Cable
  • 1 x User Manual
  • 1 x Safety Cable

Download

Photometrics

File name File size Download
Letter datasheet Zona HL 5L_Photometrics.PDF 500KB Letter datasheet

CAD Drawings

File name File size Download
Letter datasheet ZonaHL5L_CAD.PDF 500KB Letter datasheet
