ZONA DWS
SKU:
JP4003

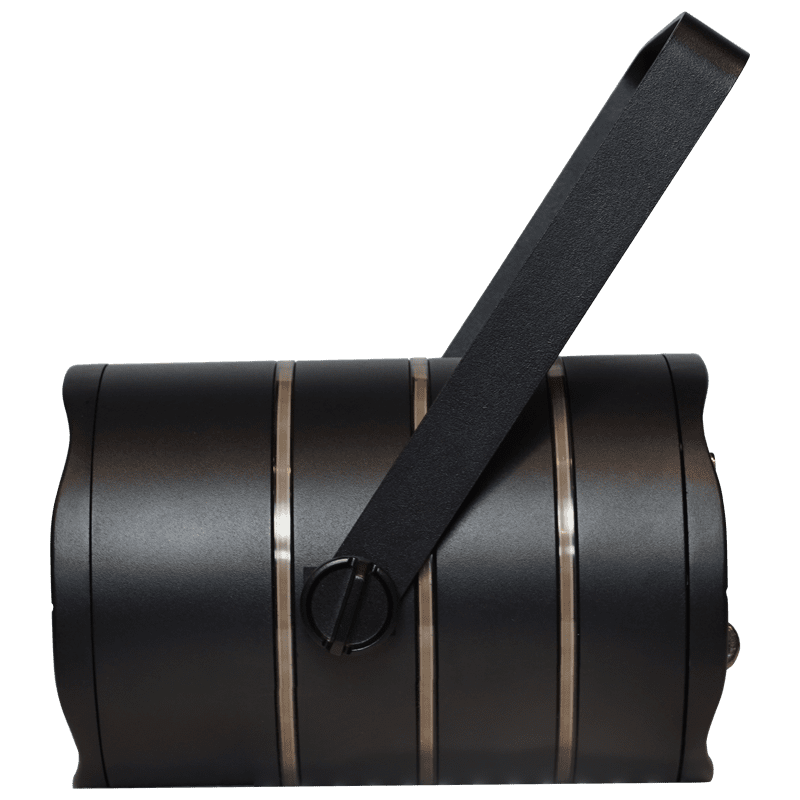

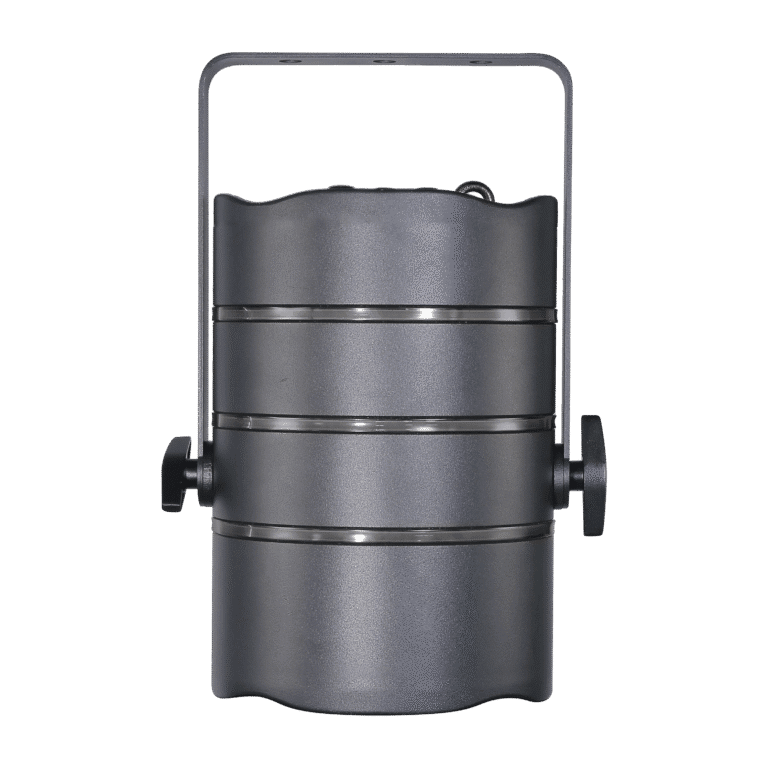

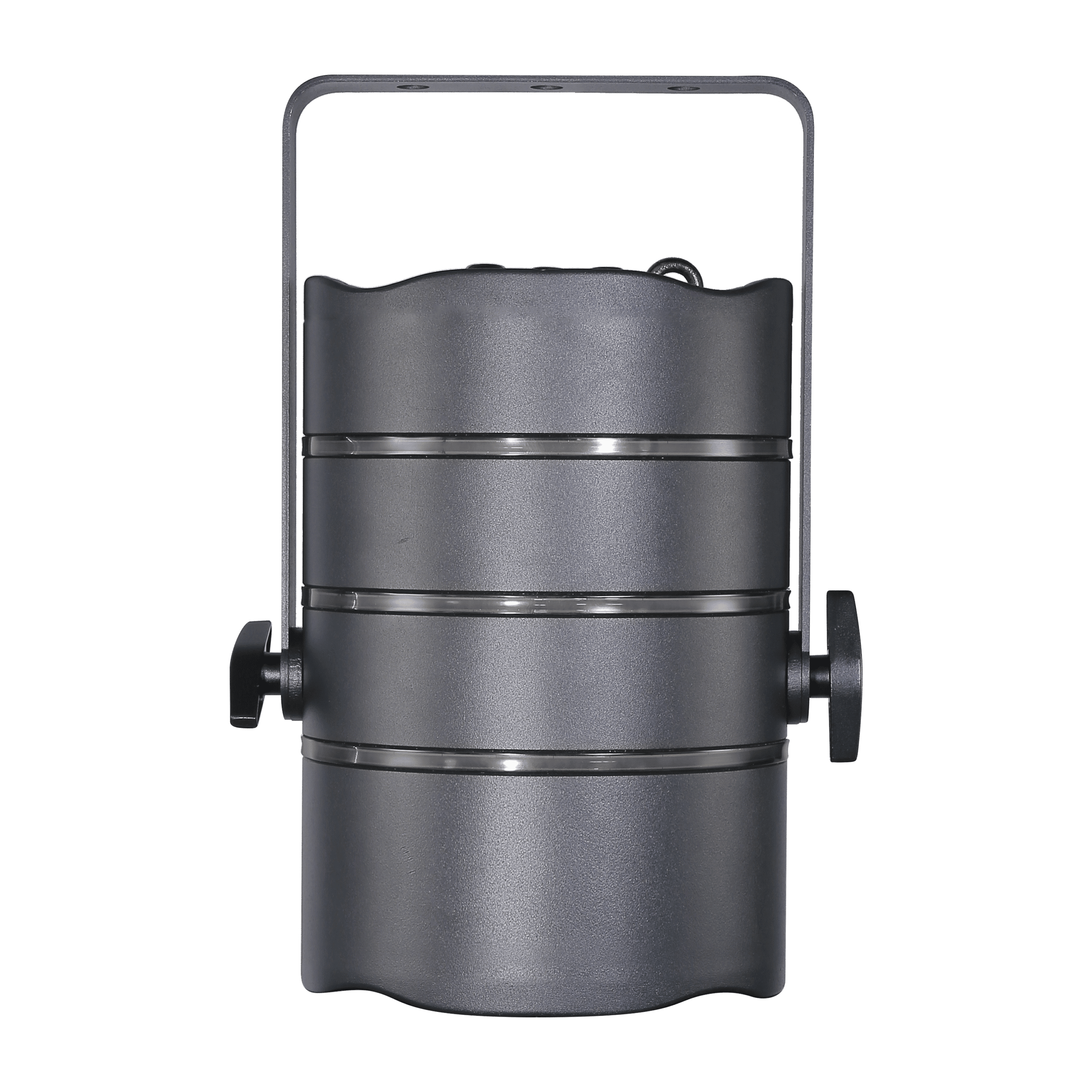

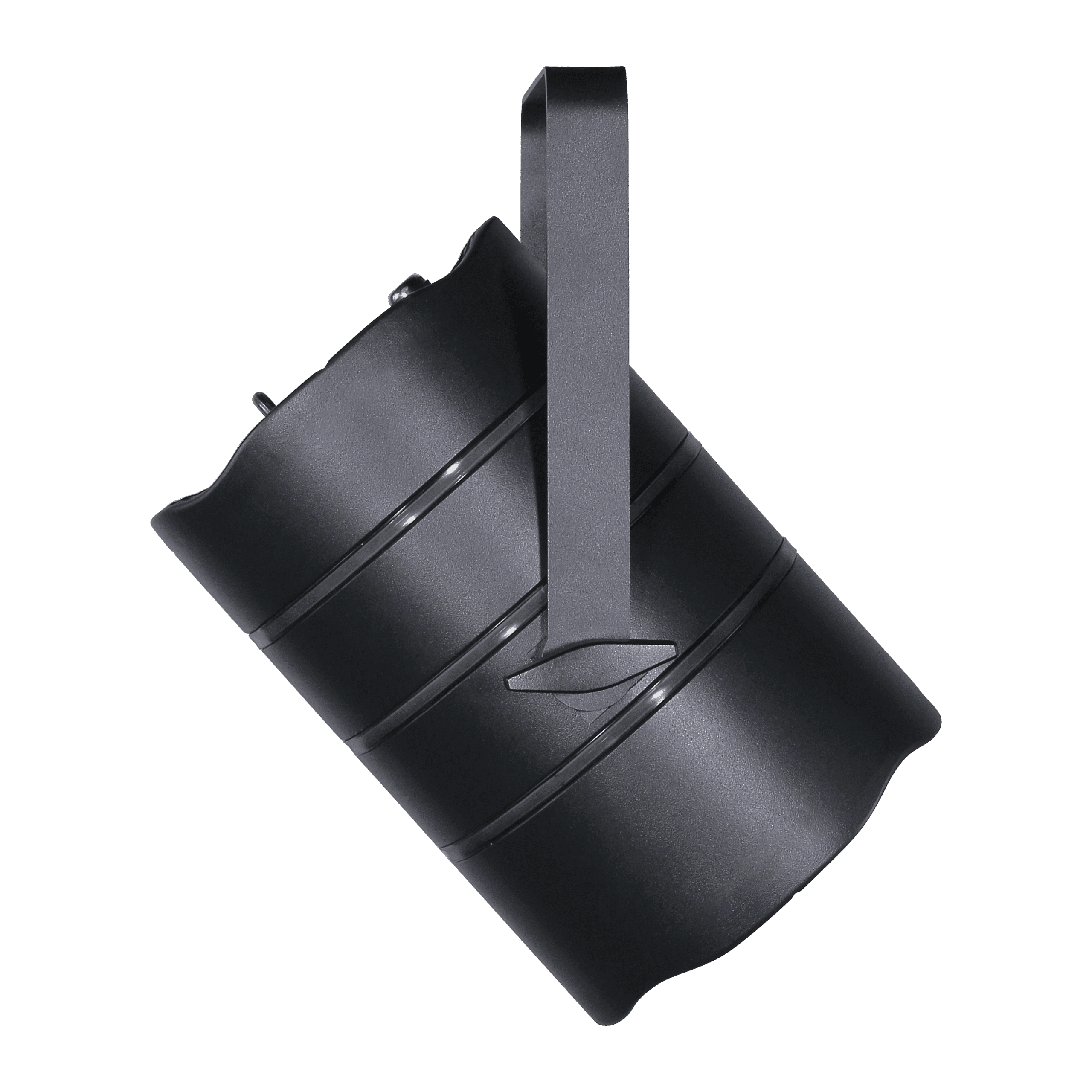

ZONA 120W DWS CW+WW PAR LED House Light
Main features:
- Light Source: 60W Warm White 60W Cool White LED

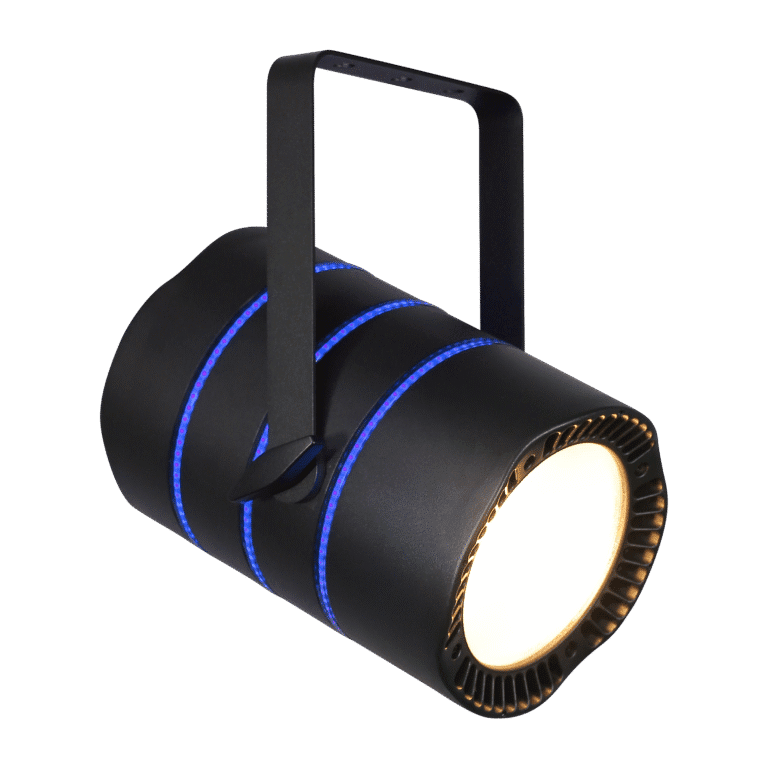

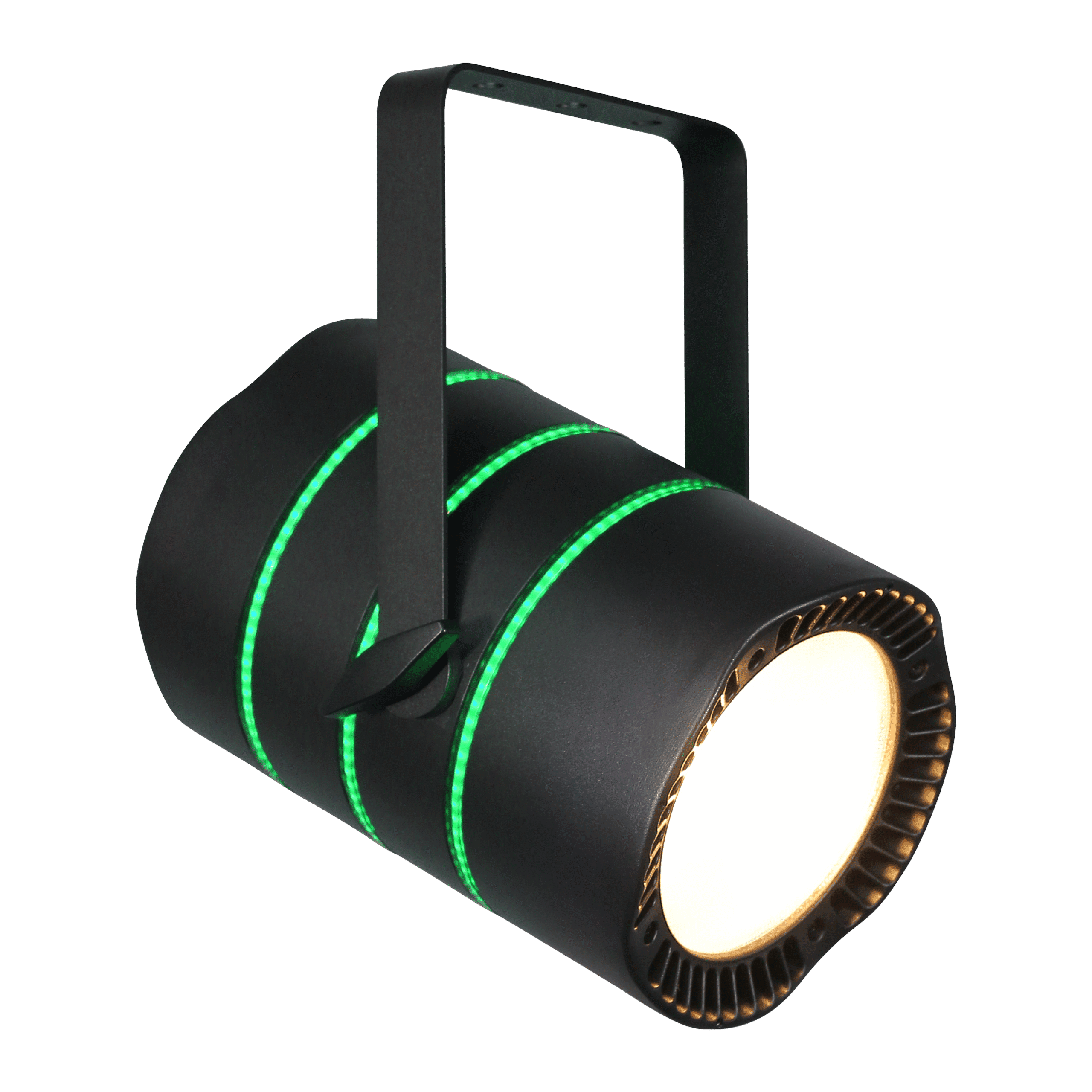

- Light Source 3 Ring Effect: (150) 0.3W RGB SMD LEDs
- 8/16-bit Color Mixing, CTO: 2700K – 5600K
- Individual Dynamic Ring Color & Effect Macro
- 31 Preset Color Macros on LED Rings
- 4 Dimming Curves / 4 Dimming Modes
- CRI: ≥ 95 – & Beam Angle: 60° (Optional Lens Available: 30°)
- Cooling: Fanless (Silent Performance)
- Personalities: 6 Modes:3/5/10/16/19/28
- Protocols: 5-Pin DMX, RDM (Remote Device Management)
- Power Connection: TRUE1 IN/OUT
- Data Connection: 5-Pin IN/OUT
- Bare Wire Block Terminal Connection (Both Power & DMX)
- Includes: Hanging Yolk, TRUE1 Power Cable, 5-Pin DMX Cable, Safety Cable, Manual
- CE, FCC, RoHS Certified, ETL &cETL Pending
Technical specifications
Light Source

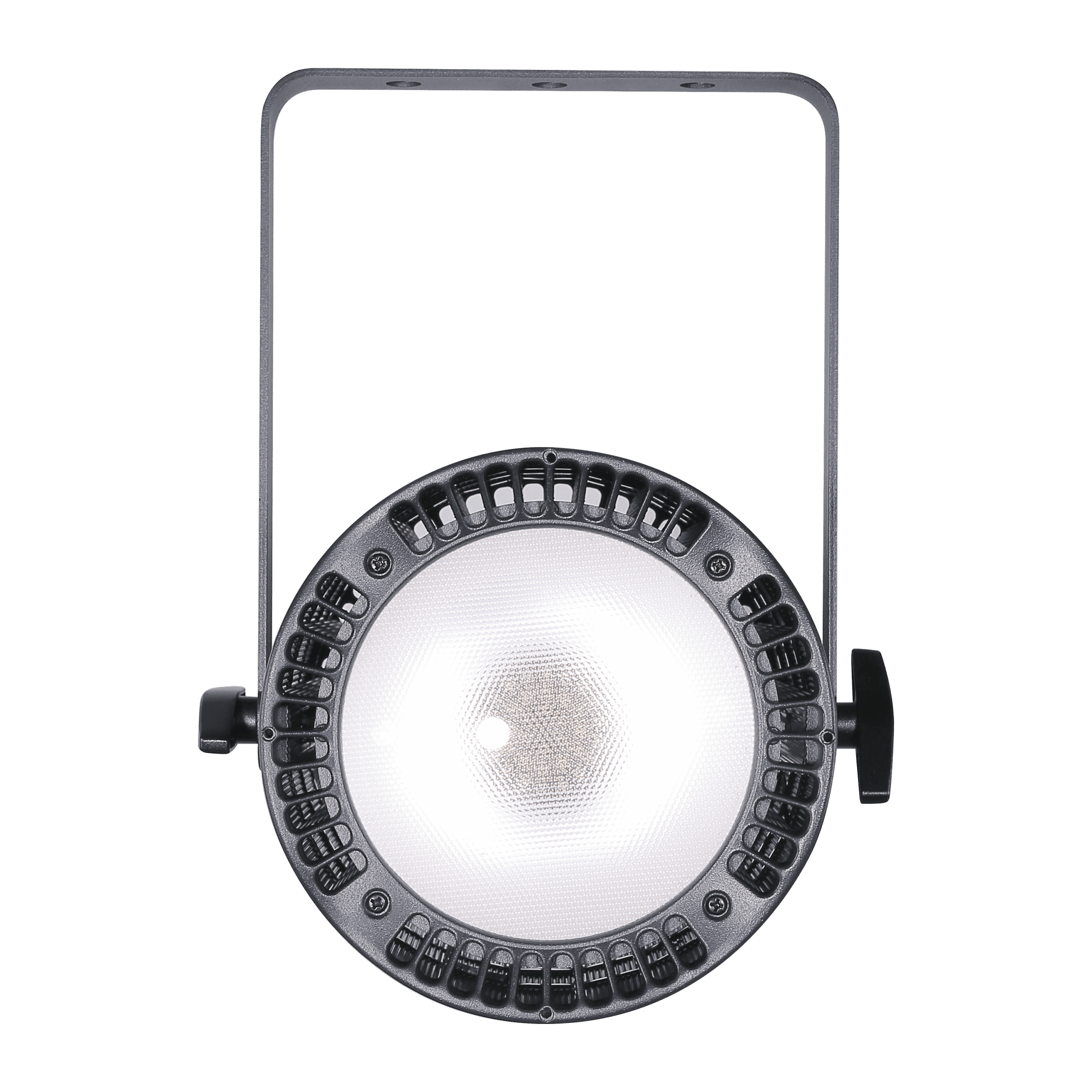

- 60W COB Warm White LED
- 60W COB Cool White LED
- Light Source: 3 Ring Effect: (150) 0.3W RGB SMD LEDs
- LED Life Expectancy: 50,000 hours
Color System
- CTO: 2700K – 5600K
- CRI: ≥ 95
Optics
- Advanced Optics Beam Angle: 60°
- Optional Lens Available: 30°
Dynamic Effect
- Virtual Color Wheel
- 31 Preset Color Macros on LED Rings
- Color Temperature Presets: 2700K – 5600K
- Linear Dimmer: 0 – 100% Electronic Dimming
- Shutter/Strobe:
1-25Hz Shutter / Strobe Effect with Variable Speed - Preset Pulse Strobe Effect with Variable Speed
- Random Strobe Effect with Variable Speed
- Dimming Curves: 4 (Linear, Square, F-Square, S-Line)
- Dimming Mode: 4
- Built In Auto Programs: Yes
Control
- Control Protocol: DMX, RDM (Remote Device Management)
- Optional Add-On Wireless DMX: CRMX USB – Powered by LumenRadio SKU: JP5001)
- Personalities: 6 Modes: 3/5/10/16/19/28
- LED Graphical Display
- Standalone Mode
Body
- Die-Cast Aluminum and Steel Structure
- External Finish: Mute Black
- Optional: Half Snoot Kit Available
Physical
- IP Rating: 20
- Cooling: Fanless (Silent Performance)

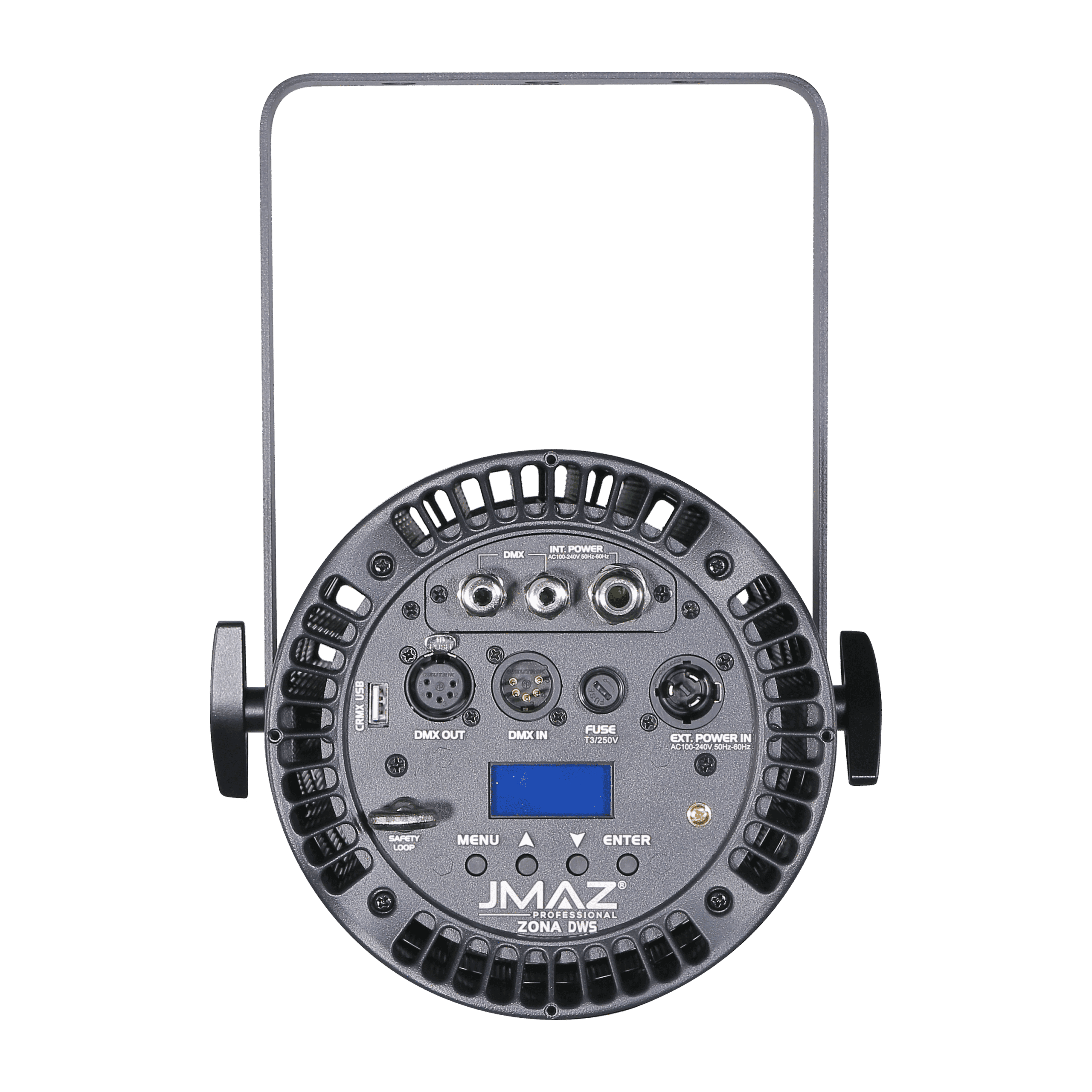

- Bare Wire Block Terminal Connection: Both power & DMX for Permanent Fixed Install
- Power Connection: US Edison (UL Listed) Plug to Seetronic Powercon IP65 TRUE1
- Power Input: Seetronic Powercon IP65 TRUE1
- Power Output: Seetronic Powercon IP65 TRUE1
- Data Connectors: Seetronic 5-Pin XLR IN/OUT
- Cable Length: 5 feet (1.5 meter)
- Certification / Qualifications:
cETL (Pending), RoHS, CE, FCC - Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 45 ° C ( 113 ° F)
Electrical
- Input Voltage: 100V – 240V AC 50/60Hz
- Power Consumption: 90W
- Fuse: T3A, 250V
- Power Linking for connecting fixture in daisy-chain:
Up to 24 Units @110V with a 20A Circuit
Up to 47 Units @208V with a 20A Circuit
Up to 52 Units @220V with a 20A Circuit
Box Content
- 1x ZONA DWS
- 1x Hanging Yolk
- 1x Powercon IP65 TRUE1 Power Cable
- 1x 5-Pin DMX Cable
- 1x Safety Cable
- 1x Manual
Item Dimensions & Weight
- Dimensions:
10.3″” x 7.1″” x 7.1″” - Weight: 11.12lbs
