ZONA Profile 6

SKU:

JP4007

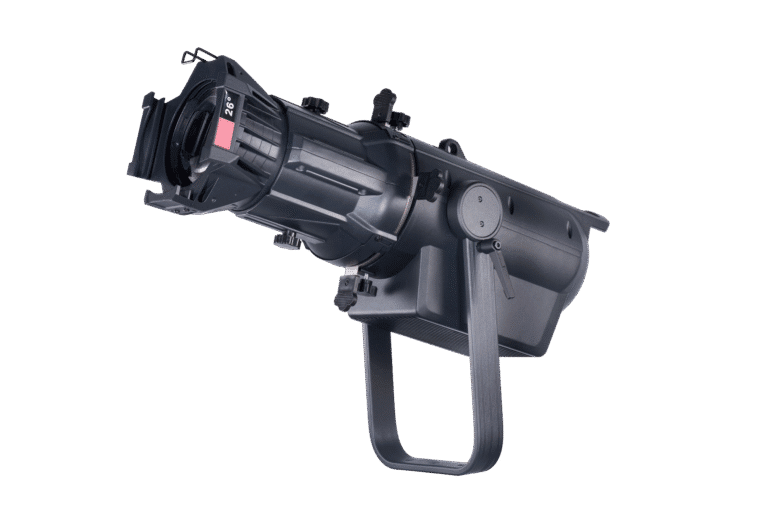

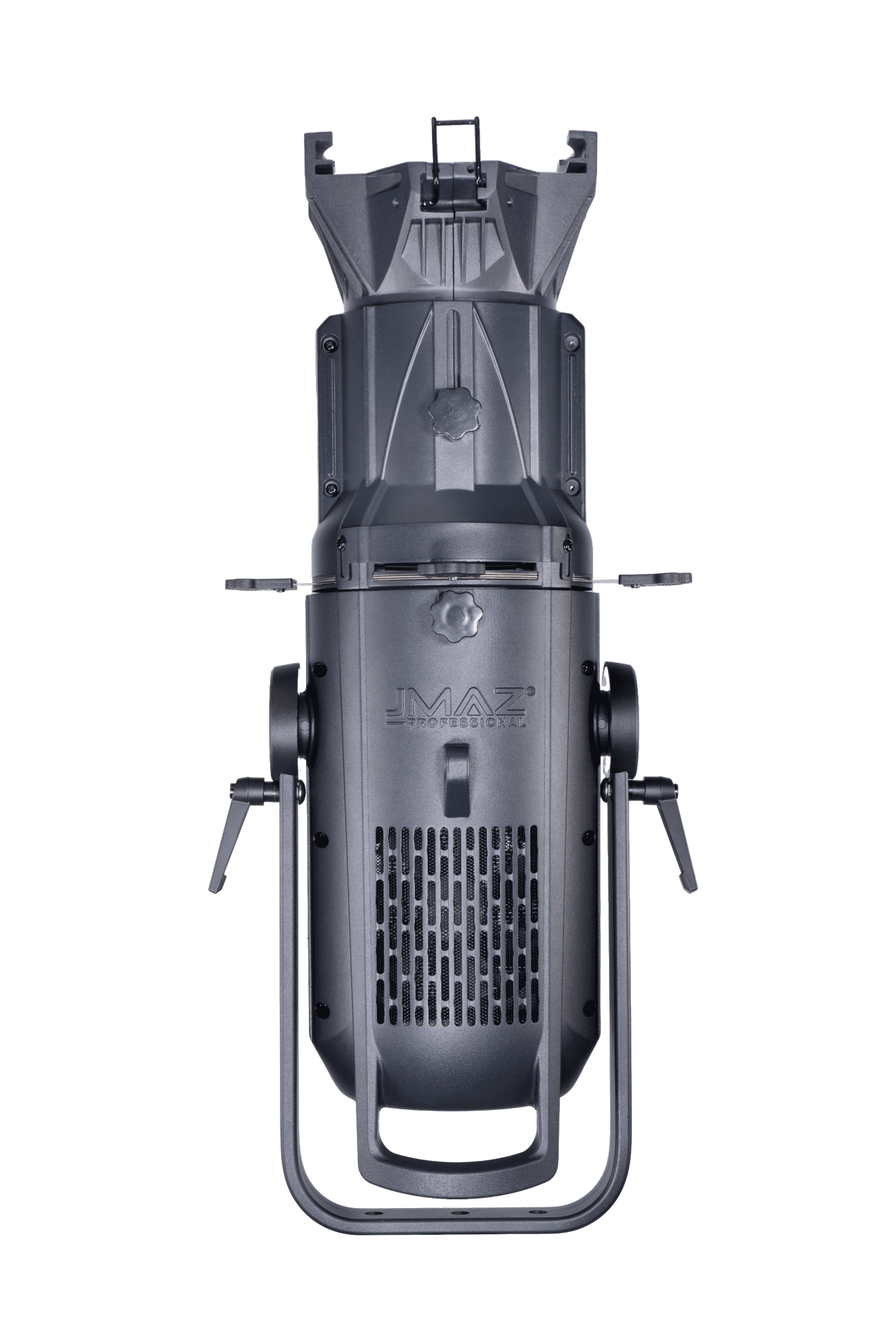

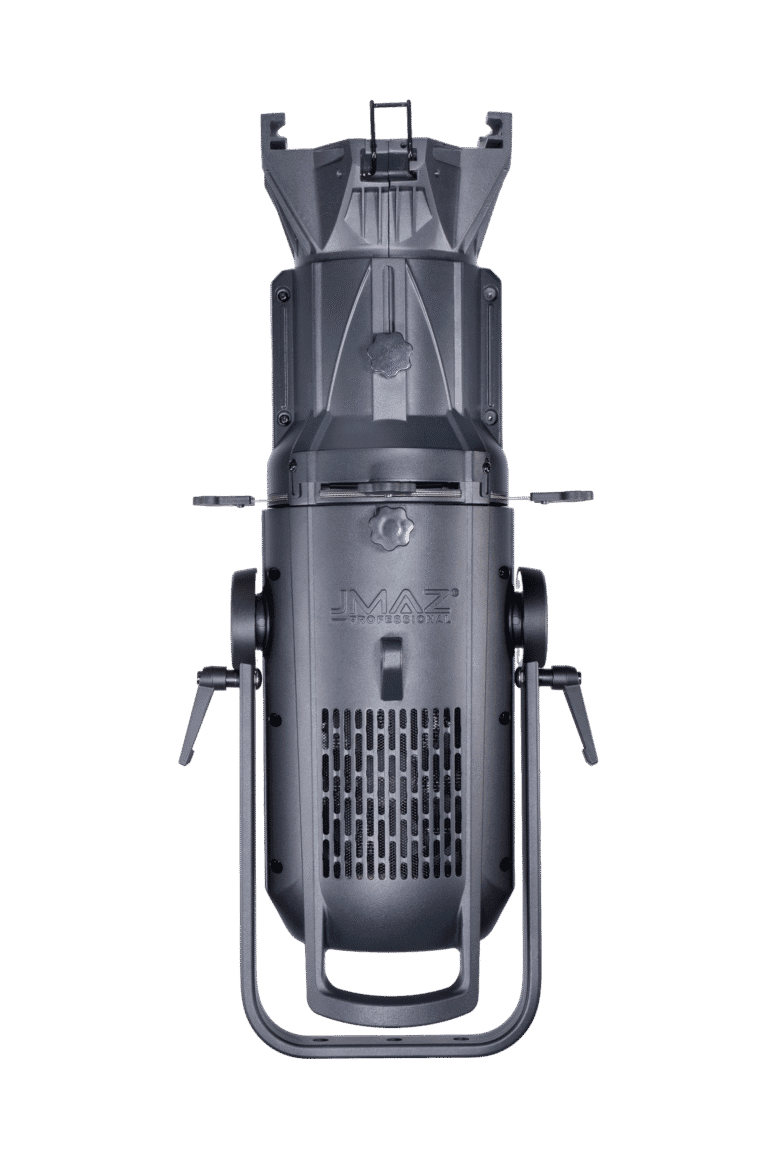

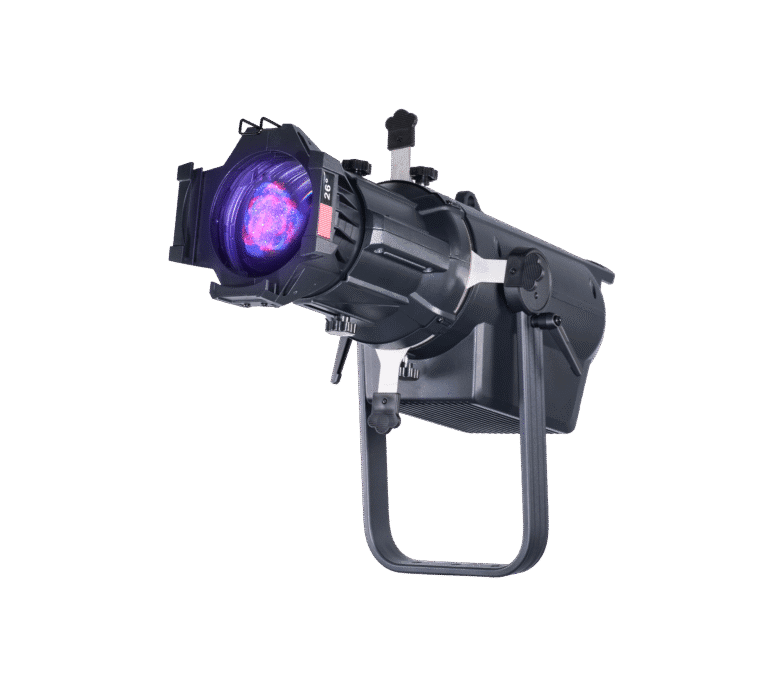

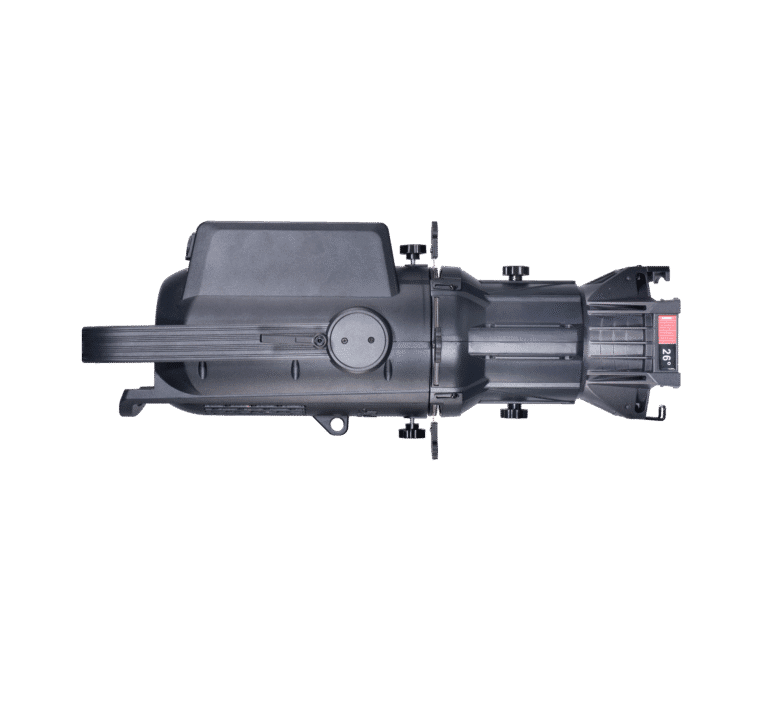

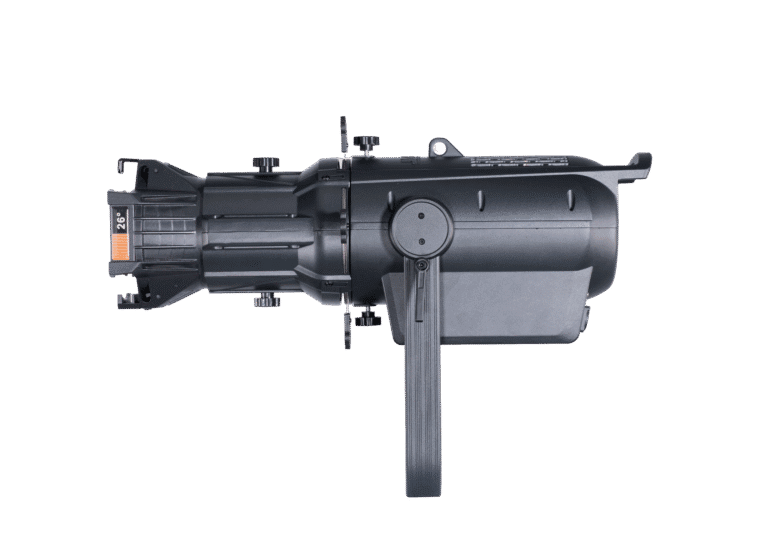

Zona Profile 6 RGBAL+RB LED Ellipsoidal Light

Main features:

  • Full-spectrum RGBAL + RB LED engine optimized for theatre, film, broadcast, and live production, delivering rich, consistent color output every time.
  • Precision CCT presets from 2000K to 12000K with high CRI for accurate, true-to-life white light reproduction.
  • Advanced 255-color virtual color wheel plus 60 precision-crafted theatrical gel presets carefully color-matched and inspired by today’s most popular production gel colors.
  • Ultra-smooth 16-bit dimming with 6 dimming modes and 4 selectable dimming curves for seamless fades and precision control.
  • Flicker-free performance with adjustable PWM for flawless results across virtually any camera system.
  • Virtually silent operation with Auto, Fast, Slow, and Fan-Off cooling modes, ideal for studio, film, theatre, and other noise-sensitive environments.
  • Advanced ± Green/Magenta correction for precise white-light tuning and accurate fixture-to-fixture color matching, with emulated red-shift for a natural tungsten-style dimming effect.
  • RDM-enabled for seamless remote configuration, monitoring, and system integration.
  • Advanced adjustable yoke design for precise positioning and simplified installation in low-clearance environments.
  • Compatible with standard ellipsoidal lenses, gel frames, and gobo holders for seamless integration with industry-standard accessories (lens not included).

Product Description

The ZONA PROFILE 6 was created for designers, programmers, and production teams who expect more from a modern ellipsoidal fixture. Packed with a 6-color LED Engine, it features a wide color temperature range from 2000K to 12000K for any application imaginable.

From subtle tungsten-style fades to bold theatrical looks and beautifully balanced whites, the ZONA PROFILE 6 gives lighting professionals the flexibility to move between live entertainment, broadcast, worship, studio, and theatrical applications without compromise. Every detail was engineered with real-world production challenges in mind, including silent operation for noise-sensitive spaces, precise color control for camera consistency, and intelligent fixture design for fast integration into existing systems.

Whether illuminating a stage, a broadcast set, or a house of worship, the ZONA PROFILE 6 delivers the refined performance, creative freedom, and professional reliability today’s productions demand.

Technical specifications

Light Source

  • 500W (1 x 500W) RGBAL + RB LED (Red, Green, Blue, Amber, Lime, Royal Blue)
  • LED Life Expectancy: 50,000 hours

Color System

  • 16-bit RGBAL+RB Color Mixing
  • Linear CCT: 2000-12000K
  • Color Temperature (At Full): 19870K
  • CRI (Ra): 97.2 @ 2700K
  • CRI (Ra) 97.4 @ 3200K
  • CRI (Ra) 96.2 @ 5600K

Optics

  • Optional Gobo Size:
    • Maximum Size: 90mm (outside), 70mm (image), 2.5 mm (max. thickness)
    • Size B: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
  • Lens Available (Not Included):
    • 19° Degree
    • 26° Degree
    • 36° Degree
    • 50° Degree

Dynamic Effect

  • Virtual Color Wheel – 255 Preset Color Macros
  • 60 Theatrical Gel Swatches via Gel Mode
  • Linear Dimmer: 0-100% Smooth Linear LED
  • Strobe Shutter: 1-25 Hz Variable
  • Dimmer: 0 – 100% smooth linear electronic dimming
  • Shutter/ Strobe
    • High speed electronic shutter and strobe
    • 0-25Hz shutter/ strobe effect with variable speed
    • Preset pulse strobe effect with variable speed
    • Random strobe effect with variable speed
  • Dimming Modes: 6
  • Dimming Curves: 4
  • Built in-Auto Programs: Yes
  • Color Temperature: 2000K – 12000K

Control

  • Control Protocol: DMX, RDM
  • Personalities: 1, 3-HSV, 3-RGB, 5, 5-RGB, 8-RGB, 8-STUD, 9-STUD, 11-DIR, 12-RGB, 18-STND, 18-DIR, 19-ADV, 26-EXT
  • Optional Add-On Wireless DMX: CRMX USB– Powered by LumenRadio (SKU: JP5001)

Body

  • Die-Cast Aluminum Body
  • Exterior Finish: Black

Physical

  • IP Rating: 20
  • Cooling: Advanced Ultra Quiet Fan
  • Power Connection: US Edison (ETL listed) plug to REAN IP65 TRUE1
  • Power Input: REAN IP65 True1
  • Power Output: REAN IP65 True1
  • Data Connectors: NEUTRIK 5-Pin DMX
  • Cable Length: Power 5ft (1.5M)
  • Certifications:
    • CE
    • ETL (Pending)
    • RoHS
    • FCC

Electrical

  • Input Voltage: 100 – 240V AC, 50/60Hz (Auto Ranging with Active PFC)
  • Power Consumption: 350W
  • Power Linking for connecting fixture in daisy-chain:
    • Up to 5 units @110V with a 20A circuit
    • Up to 9 units @208V with a 20A circuit
    • Up to 11 units @230V with a 20A circuit
  • Fuse: T6.3A/250V
  • Operating Temperature: 40 ° C ( 104 °F)
    • Minimum Temperature: – 10 ° C ( 14 ° F)
    • Maximum Temperature: 60 ° C ( 140 ° F)

Box Content

  • 1 x ZONA Profile 6 w/ Shutter Barrel (Lens Sold Separately)
  • 1 x TRUE1 Power Cable
  • 1 x User Manual
  • 1 x Safety Cable
  • 1 x Gobo Holder

Item Dimensions & Weight

  • Dimensions: 21.6″ x 10.8″ x 8.7″ / 551.2 x 276 x 221mm
  • Weight: 18.62lbs (8.5kgs)

UPC

618528599861

Download

File name File size Download
ZONA Profile 6 Product Data Sheet 500KB

File name File size Download
ZONA Profile 6 Manual 500KB

File name File size Download
ZONA Profile 6 DMX Chart 500KB

File name File size Download
ZONA Profile 6 Profiles 500KB

File name File size Download
ZONA Profile 6 Photometrics 500KB

File name File size Download
ZONA Profile 6 CAD Drawings 500KB
