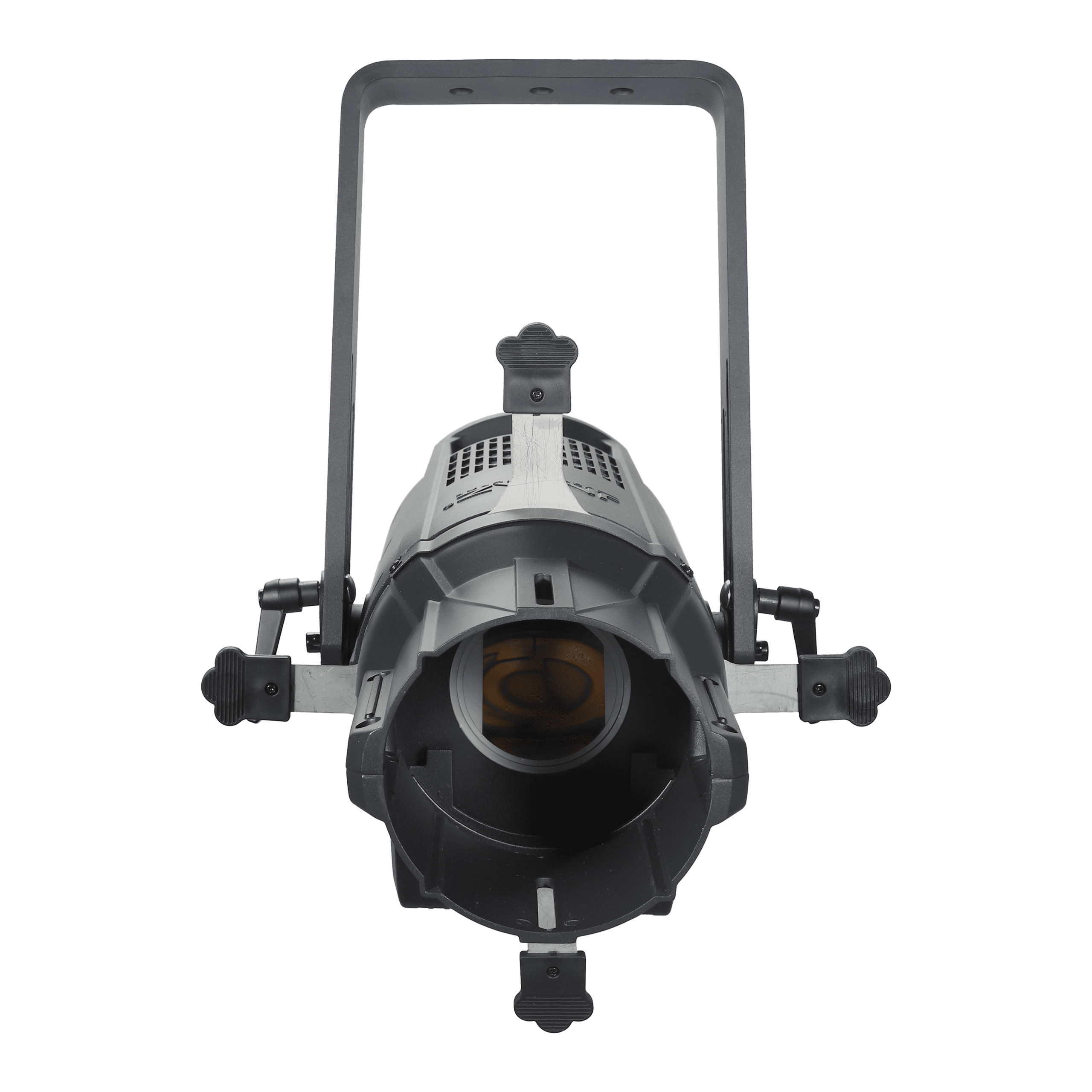

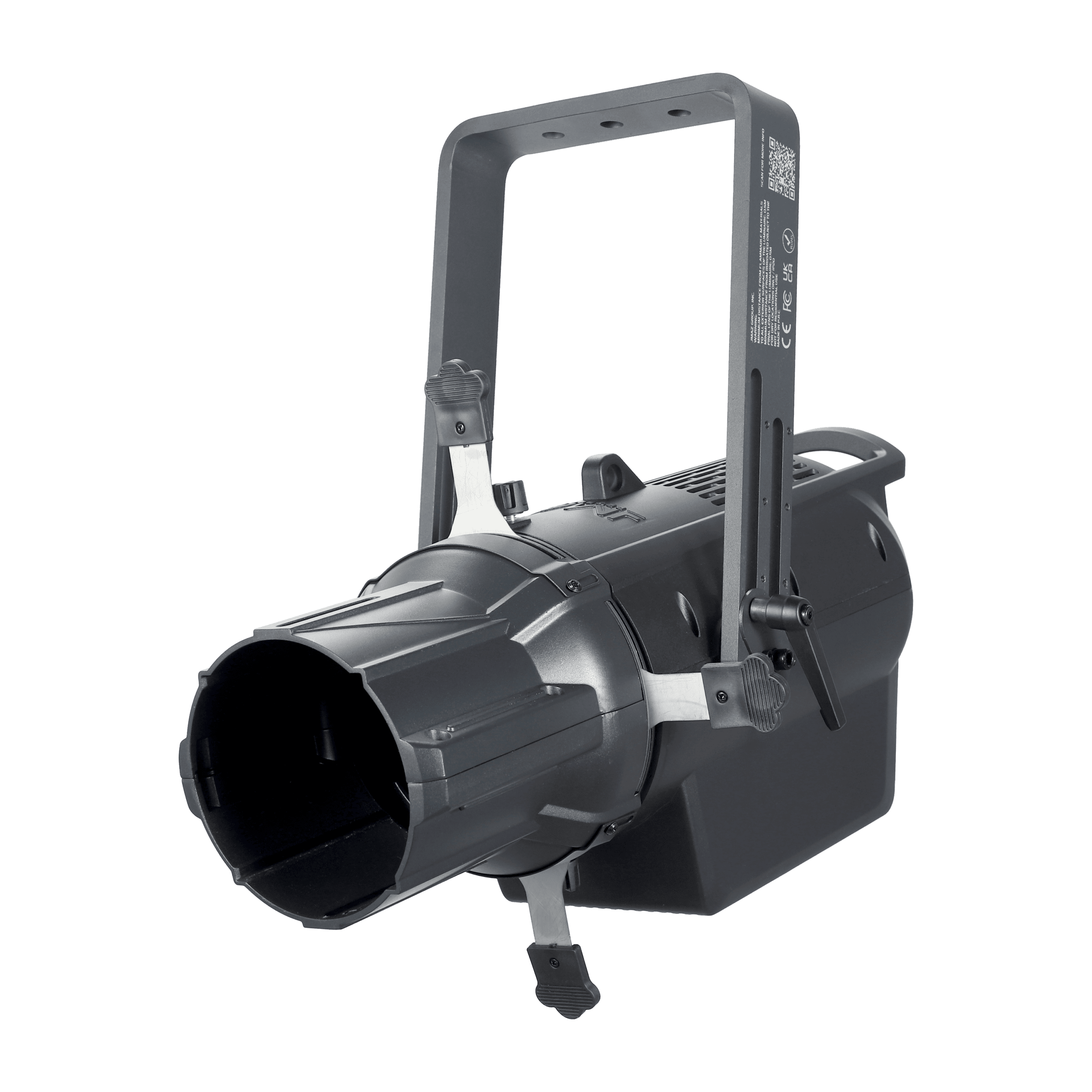

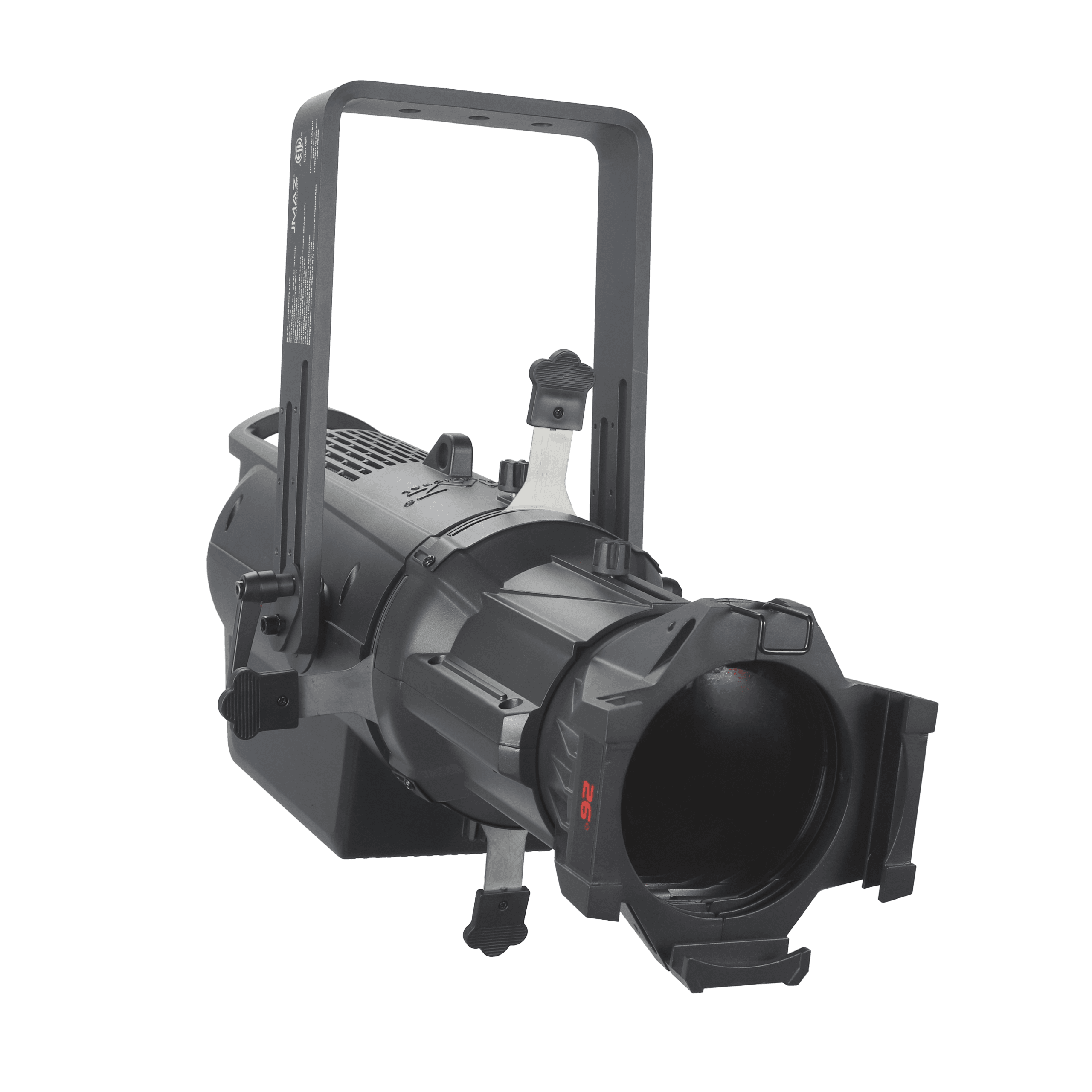

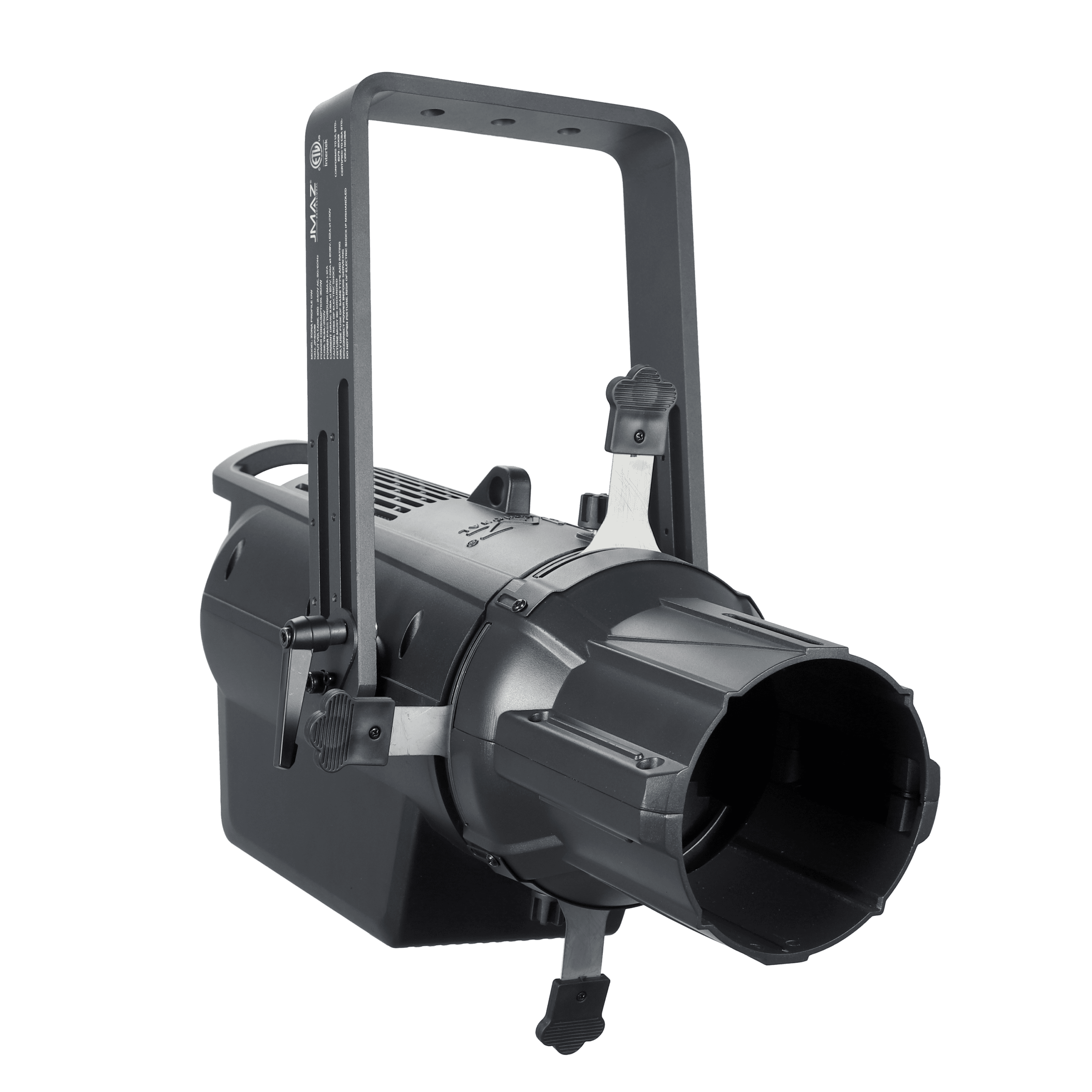

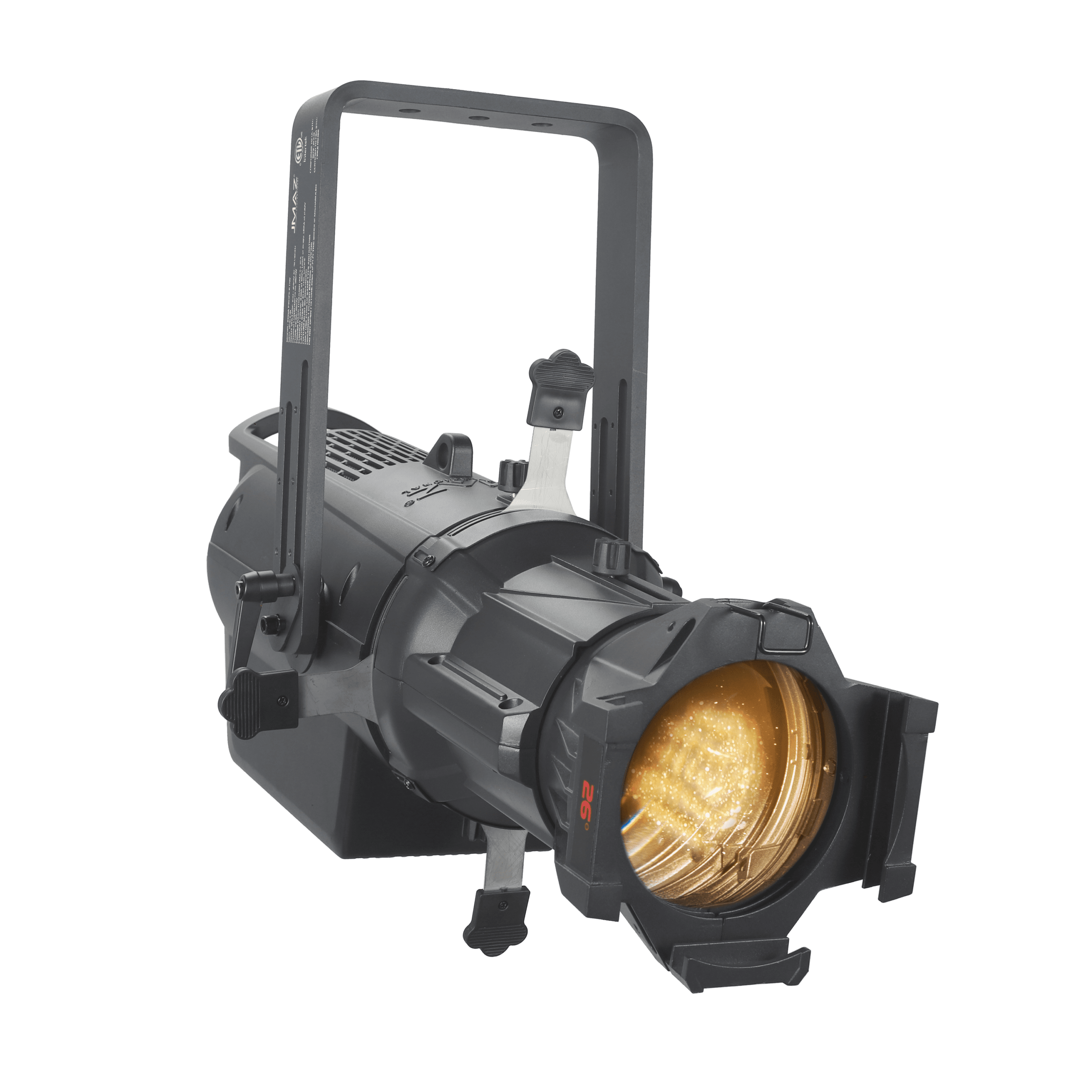

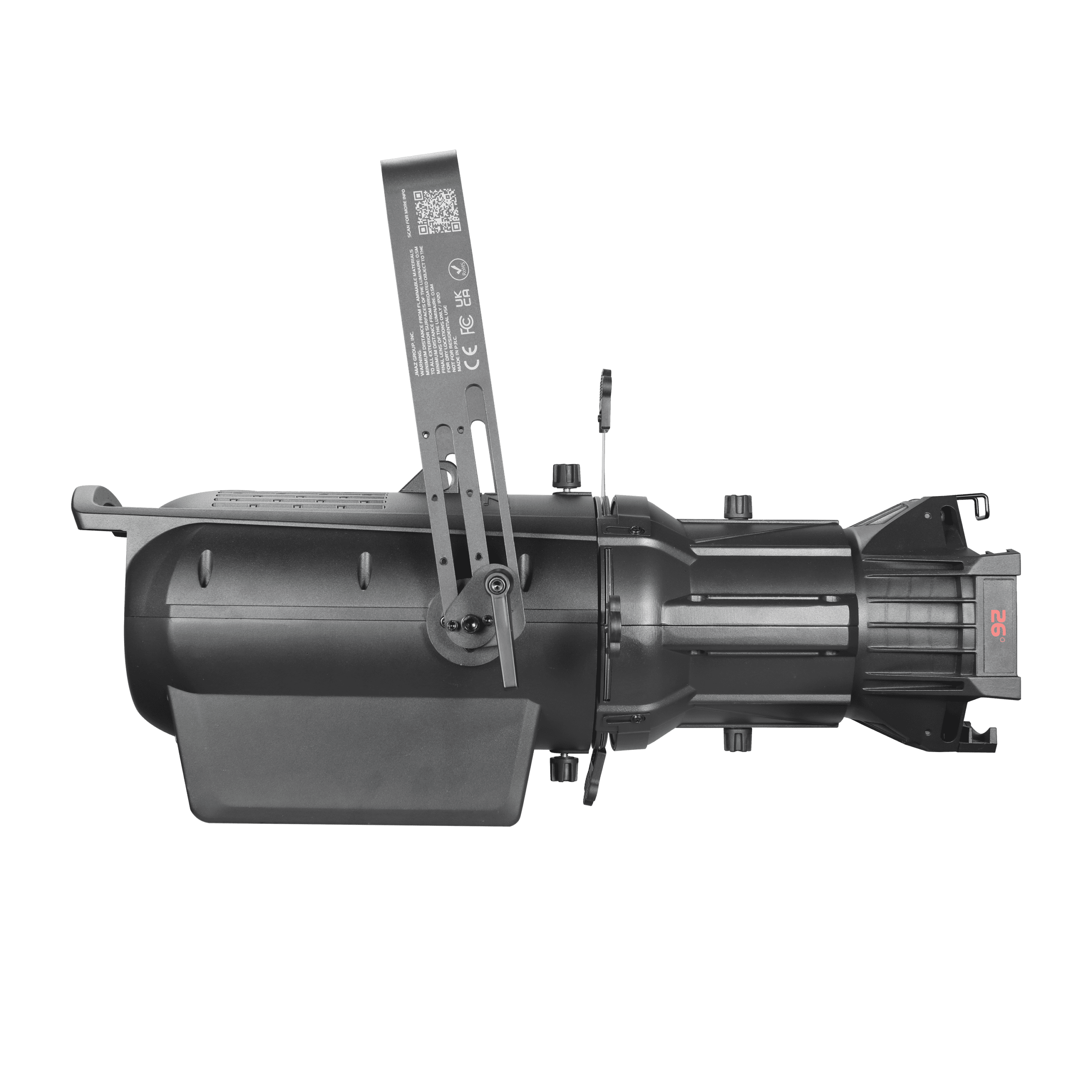

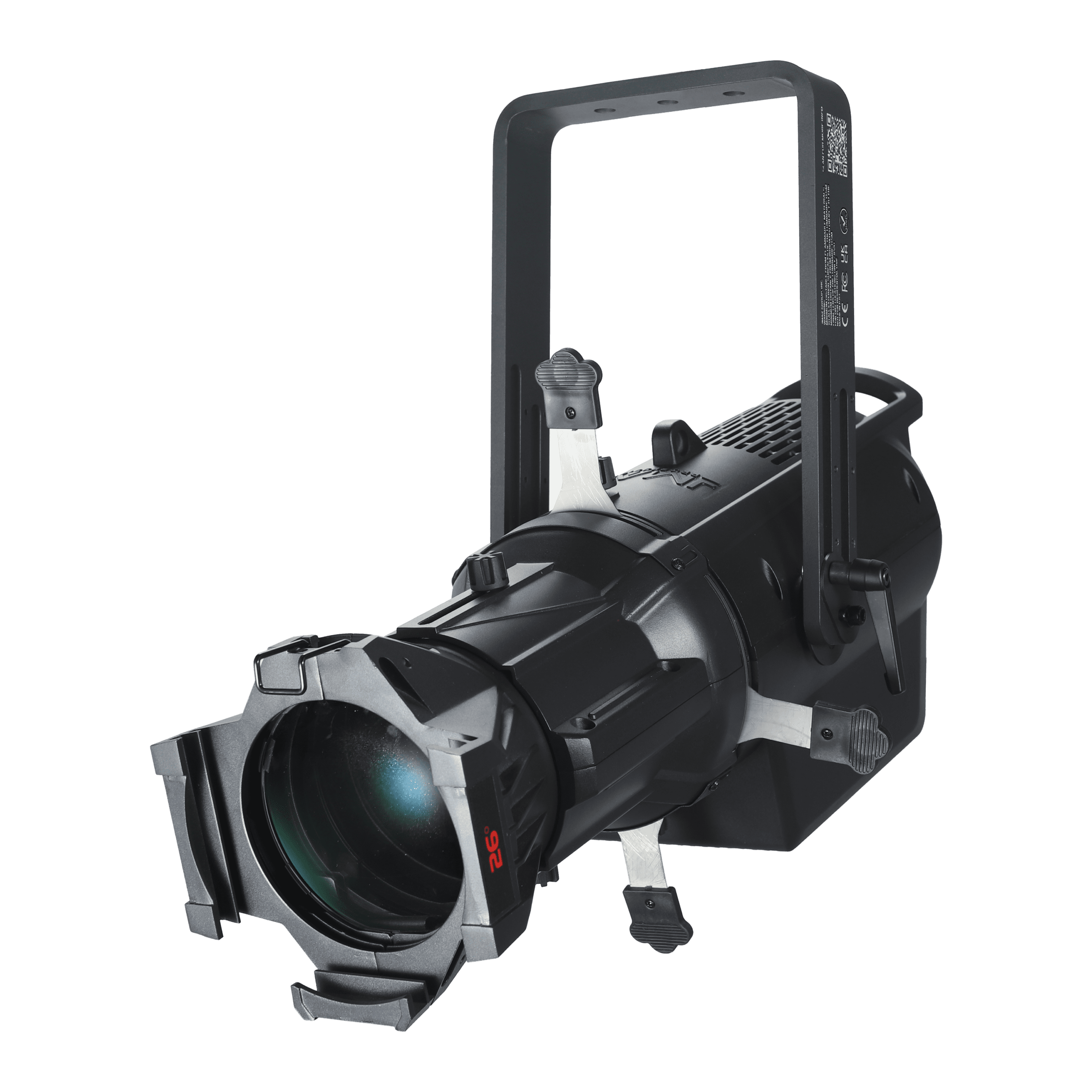

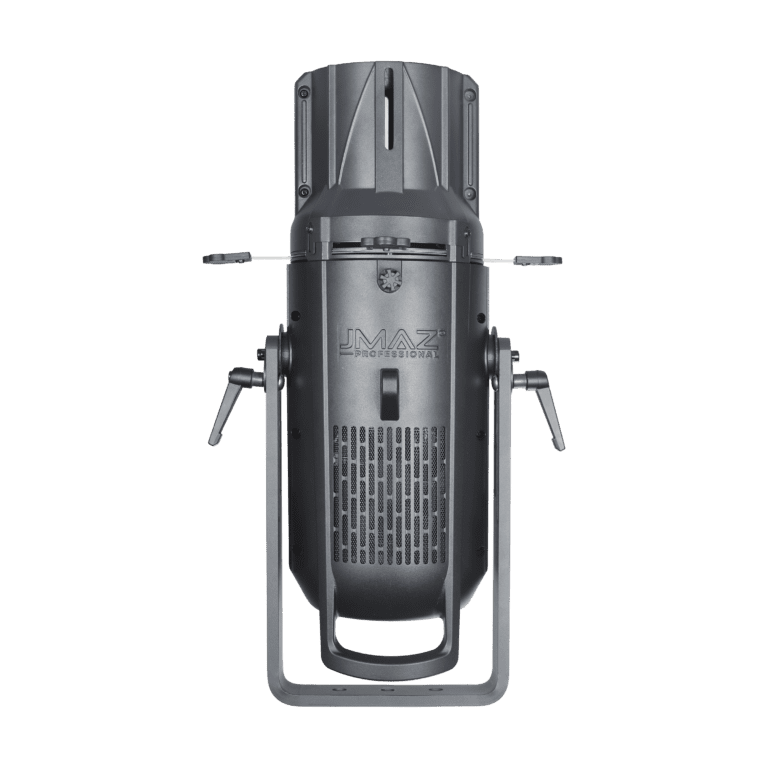

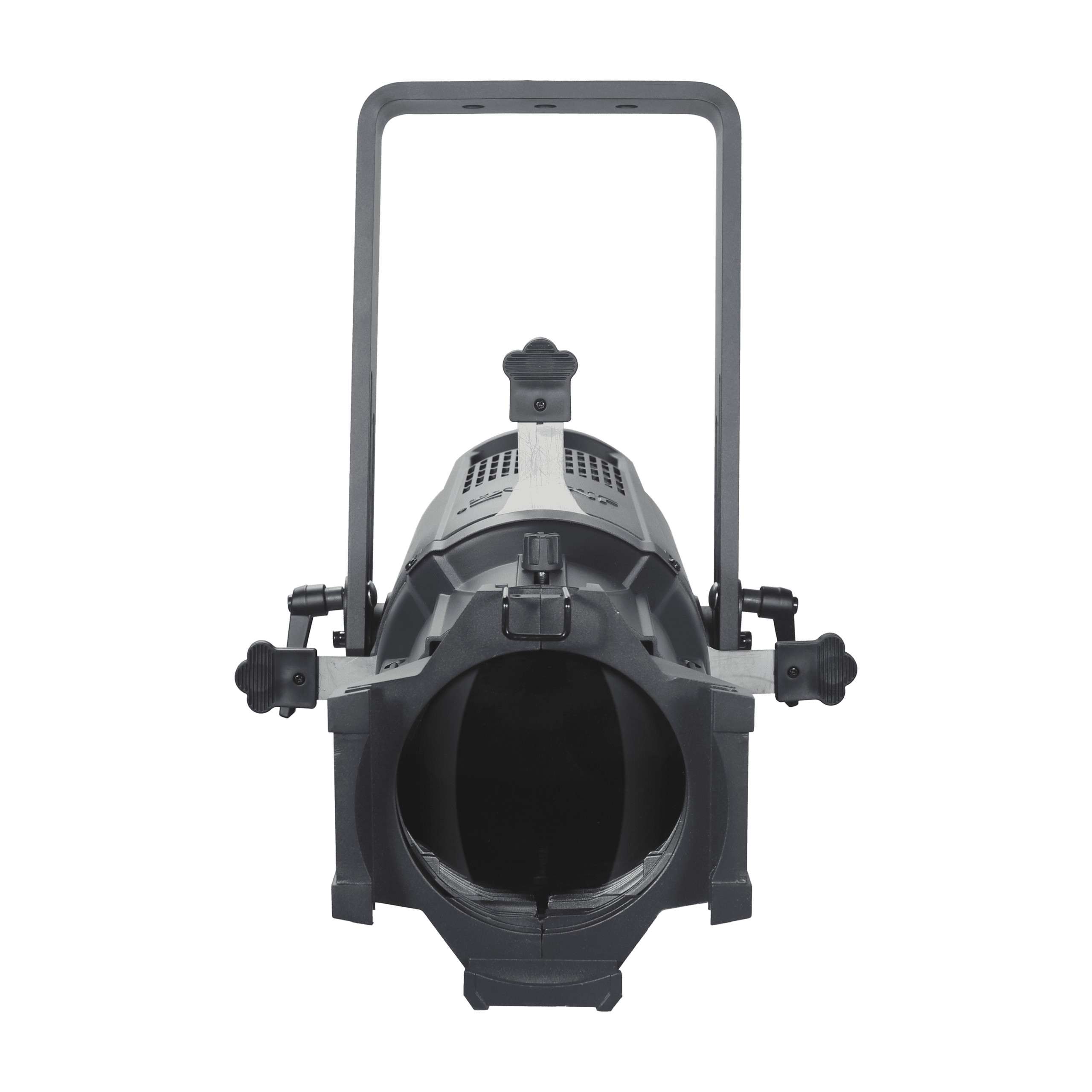

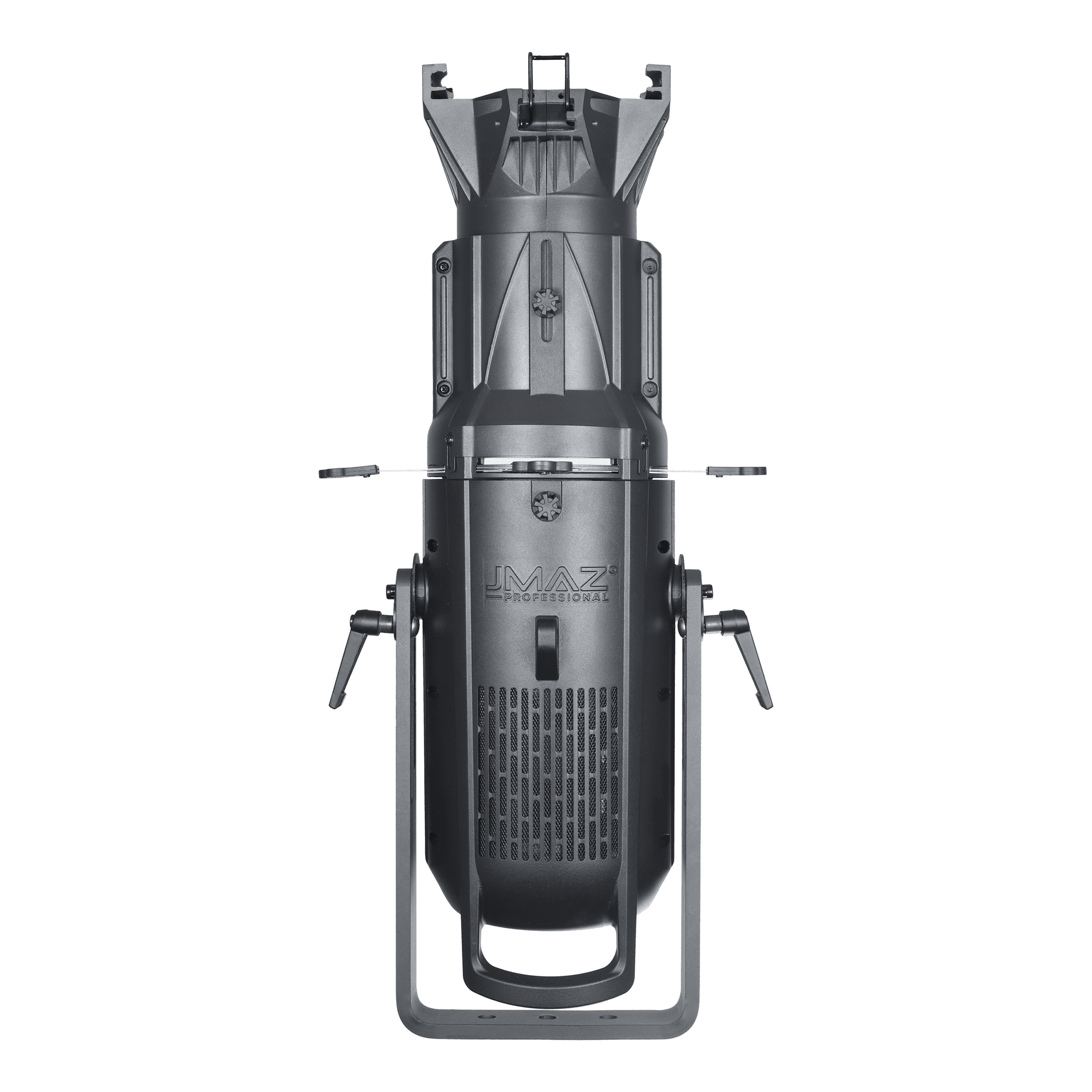

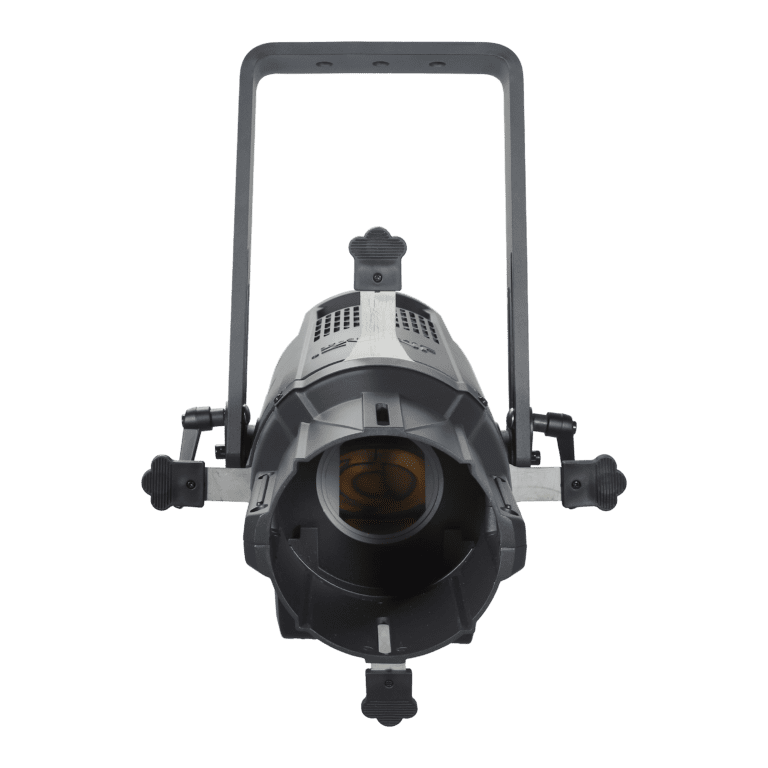

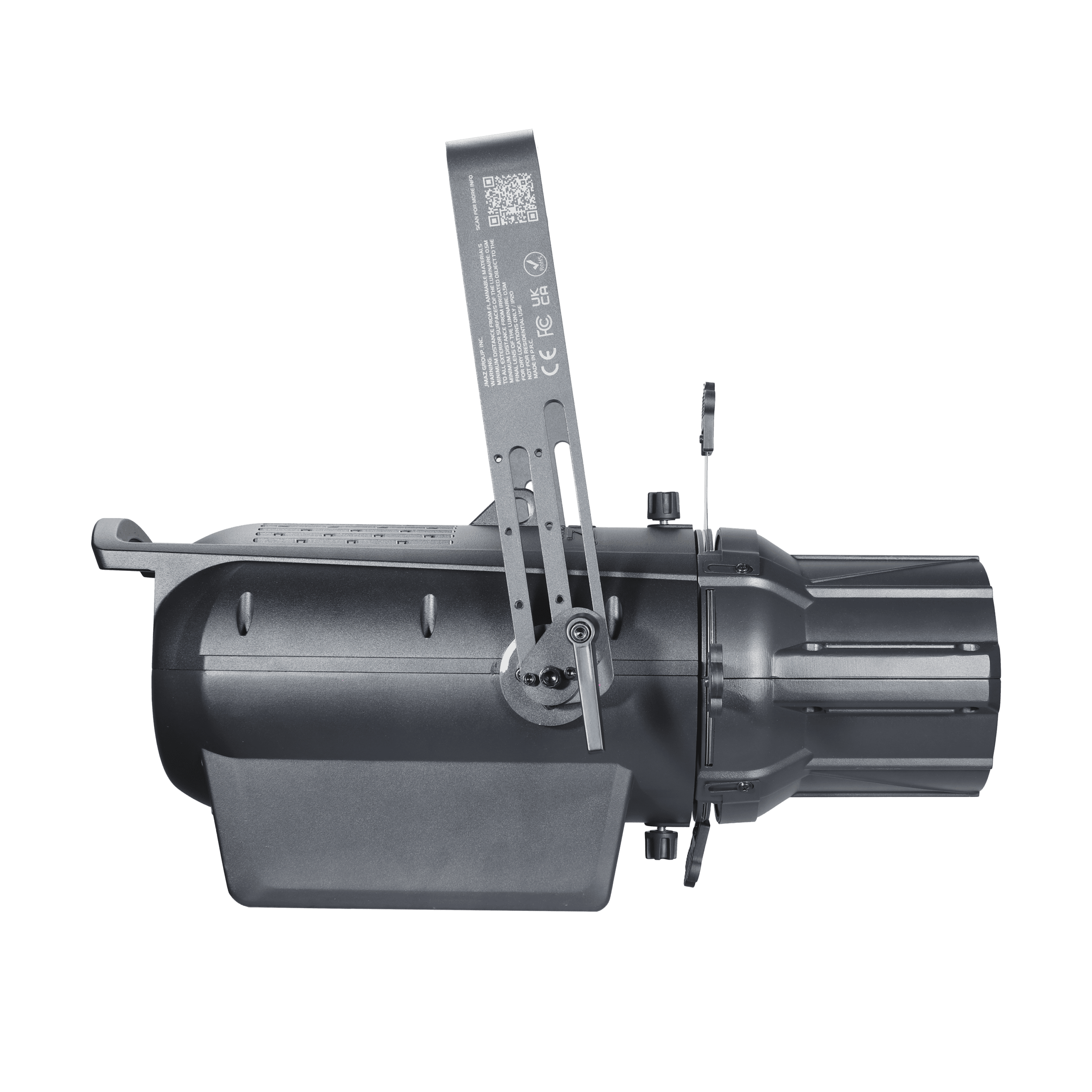

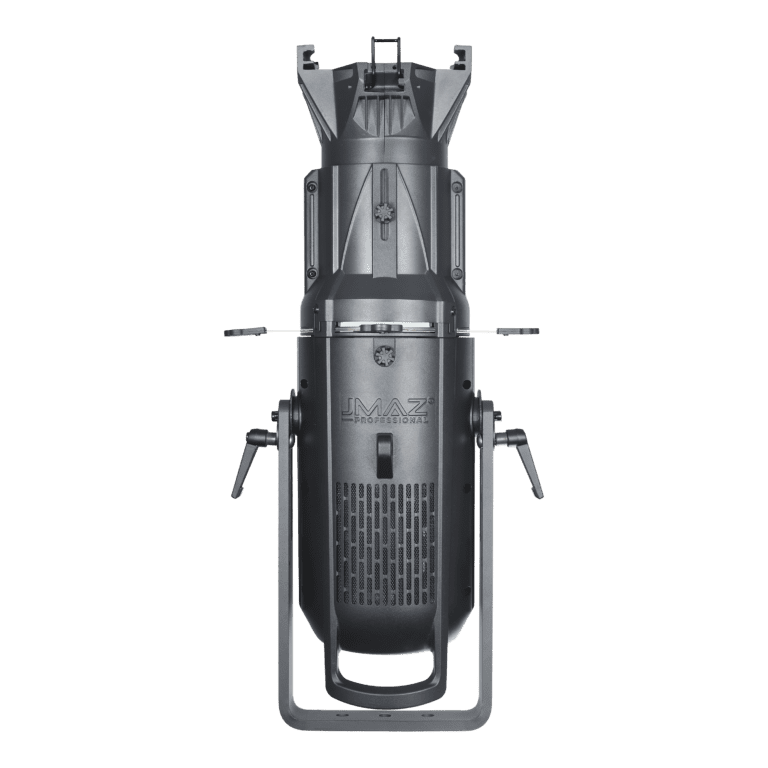

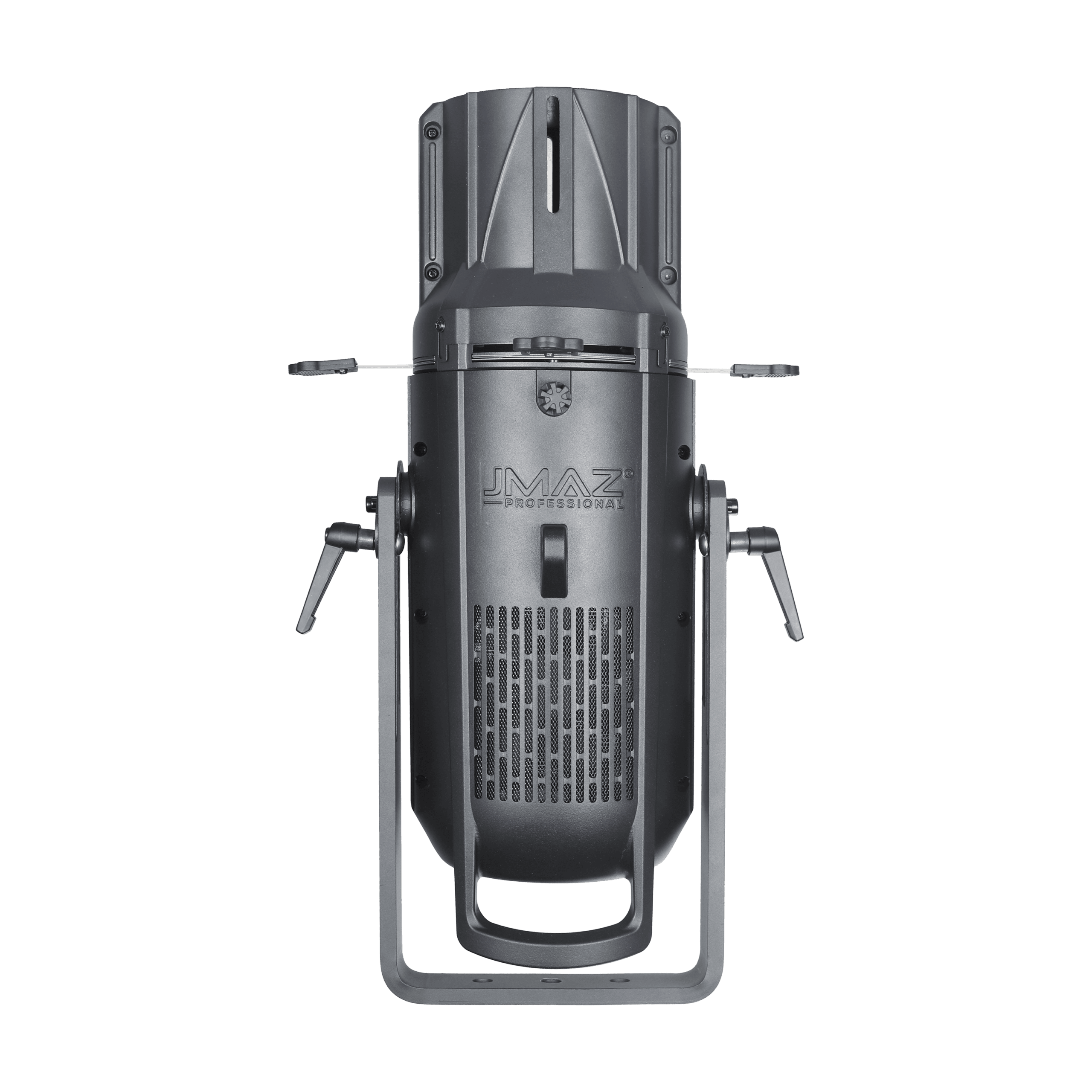

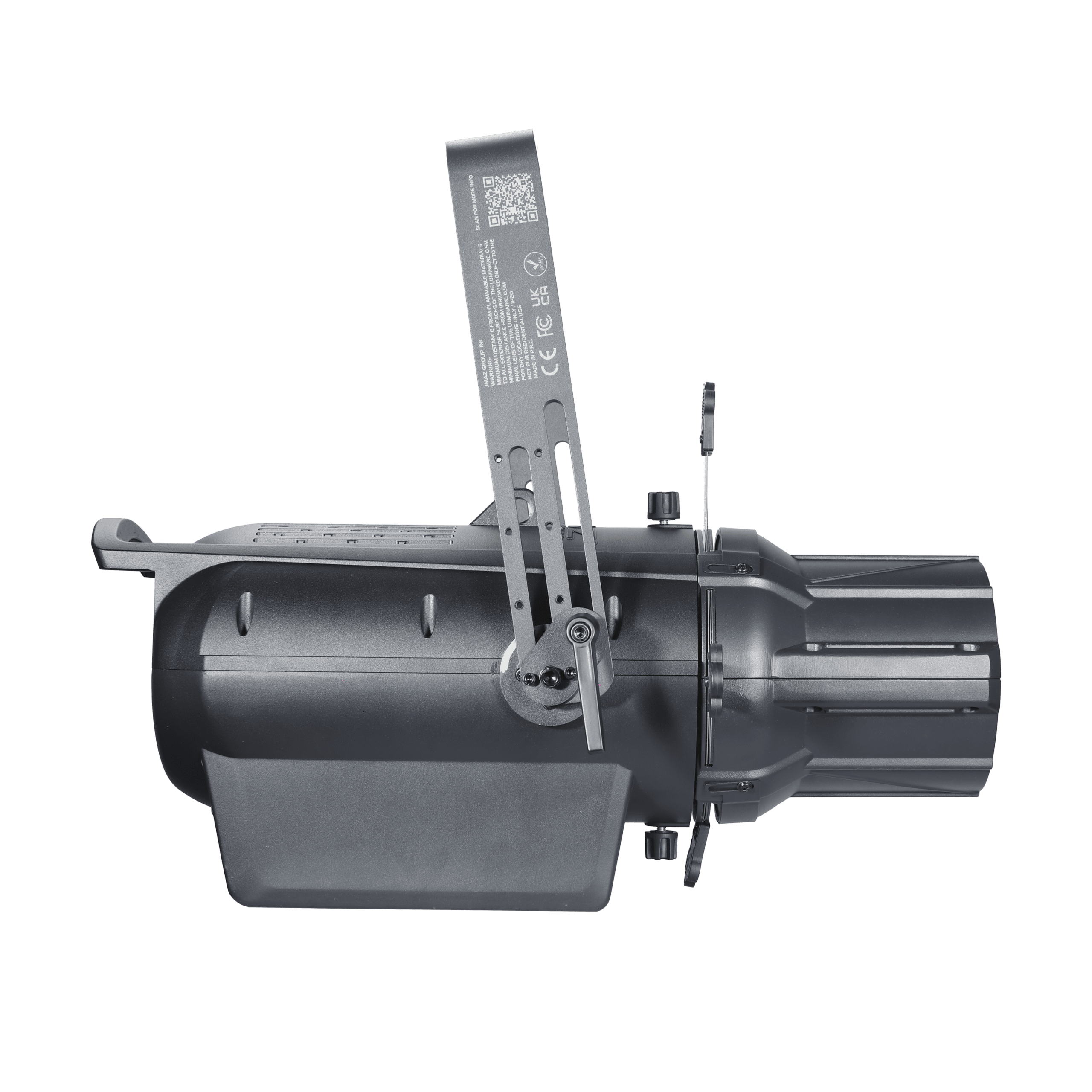

ZONA Profile DW
SKU:
JP4008
Main features:
- 350W (1 x 350W) Cool White LED
- 350W (1 x 350W) Warm White LED
- Linear CCT: 2700K – 7500K
- 4 Dimming Curves / 6 Dimming Modes
- CRI: ≥ 97
- Lens Available (Not Included): 19°, 26°, 36°, 50°
- Cooling: Fan (Near Silent Performance)
- Personalities: 1/3/4/8/11
- Protocols: 5-Pin DMX, RDM (Remote Device Management)

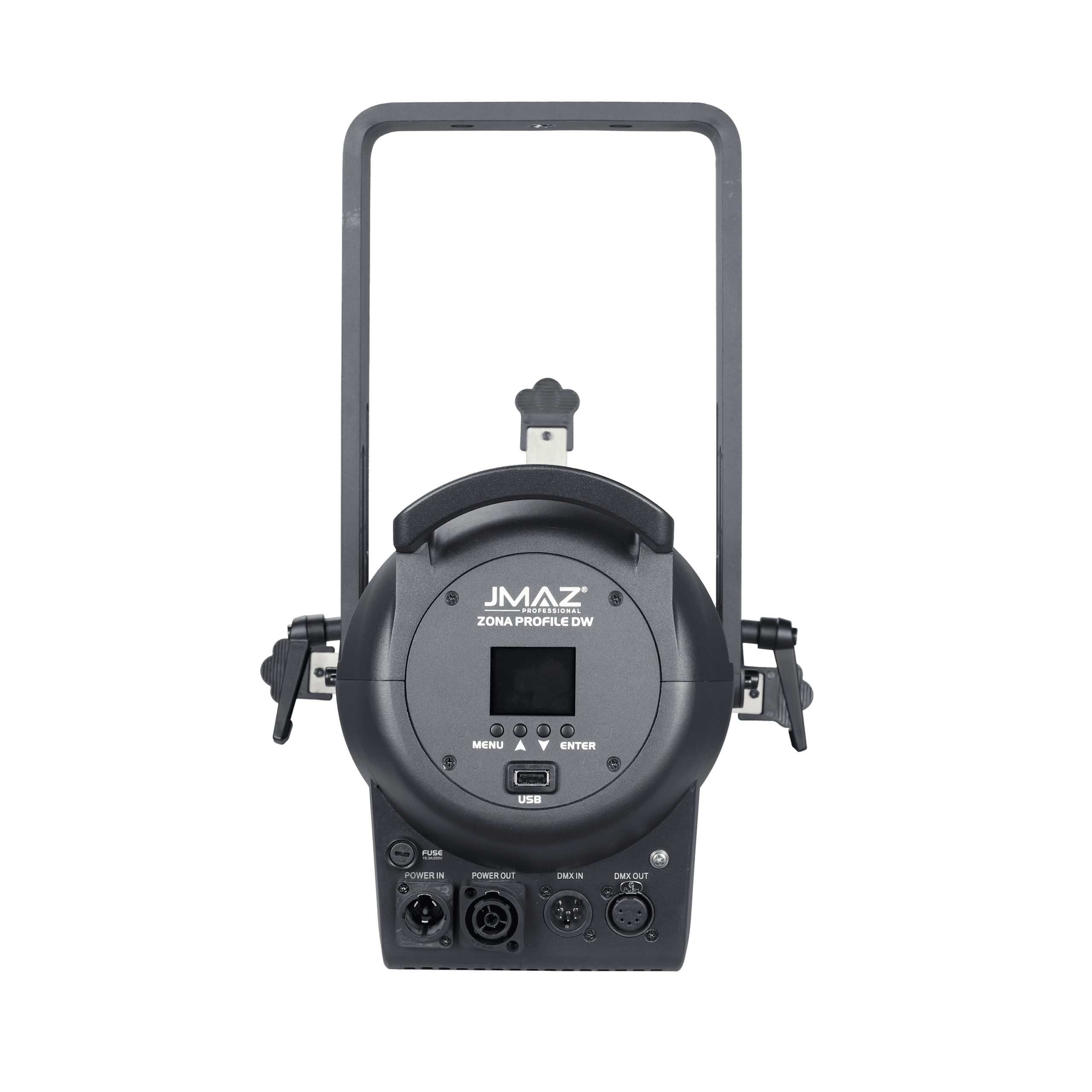

- Power Connection: REAN IP65 TRUE1 IN/OUT
- Data Connection: Neutrik 5-Pin IN/OUT
- Includes: TRUE1 Power Cable, Manual, Safety Cable, Gobo Holder
- CE, FCC, RoHS Certified, ETL Pending
Technical specifications
Light Source
- 350W (1 x 350W) Cool White LED
- 350W (1 x 350W) Warm White LED
- LED Life Expectancy: 50,000 Hrs
Color System
- Linear CCT: 2700K – 7500K
- CRI (Ra): 97 @ 2700K
- CRI (Ra) 95 @ 3200K
- CRI (Ra) 95 @ 5600K
Optics
- Lens Available (Not Included):
- 19° Degree
- 26° Degree
- 36° Degree
- 50° Degree
Dynamic Effect
- Linear Dimmer: 0-100% Smooth Linear LED
- Strobe Shutter: 1-25 Hz Variable
- Dimmer: 0 – 100% smooth linear electronic dimming
- Shutter/ Strobe
- High speed electronic shutter and strobe
- 0-25Hz shutter/ strobe effect with variable speed
- Preset pulse strobe effect with variable speed
- Random strobe effect with variable speed
- Dimming Modes: 6
- Dimming Curves: 4
- Built in-Auto Programs: Yes
- Color Temperature: 2700K – 7500K
Control
- Control Protocol: DMX, RDM
- Personalities: 1/3/4/8/11
- Optional Add-On Wireless DMX: CRMX USB– Powered by LumenRadio (SKU: JP5001)
Body
- Die-Cast Aluminum Body
- Exterior Finish: Black
Physical
- IP Rating: 20
- Cooling: Advanced Ultra Quiet Fan
- Power Connection: US Edison (ETL listed) plug to REAN IP65 TRUE1
- Power Input: REAN IP65 True1
- Power Output: REAN IP65 True1
- Data Connectors: NEUTRIK 5-Pin DMX
- Cable Length: Power 5ft (1.5M)
- Certifications:
- CE
- ETL (Pending)
- RoHS
- FCC
Electrical
- Input Voltage: 100 – 240V AC, 50/60Hz (Auto Ranging with Active PFC)
- Power Consumption: 350W
- Power Linking for connecting fixture in daisy-chain:
- Up to 5 units @110V with a 20A circuit
- Up to 9 units @208V with a 20A circuit
- Up to 11 units @230V with a 20A circuit
- Fuse: T6.3A/250V
- Operating Temperature: 40 ° C ( 104 °F)
- Minimum Temperature: – 10 ° C ( 14 ° F)
- Maximum Temperature: 60 ° C ( 140 ° F)
Box Content
- 1 x ZONA Profile DW w/ Shutter Barrel (Lens Sold Separately)
- 1 x TRUE1 Power Cable
- 1 x User Manual
- 1 x Safety Cable
- 1 x Gobo Holder
Item Dimensions & Weight
- Dimensions: 21.6″ x 10.8″ x 8.7″ / 551.2 x 276 x 221mm
- Weight: 18.62lbs (8.5kgs)
UPC
618528599878Download
